General purpose RF CMOS power SPDT Switch in ultra small package with 0.77mm2 footprint.
SGM11102G.pdf优势替代
FEATURES
• 2 high-linearity TRx paths with power handling capability
of up to 35 dBm
• All ports fully symmetrical
• Low insertion loss
• Low harmonic generation
• High port-to-port isolation
• 30 MHz to 4 GHz coverage
• High ESD robustness
• On-chip control logic
• Very small leadless and halogen free package TSLP-6-4
(0.7x1.1mm2) with super low height of 0.31 mm
• No decoupling capacitors required if no DC applied on
RF lines
• RoHS compliant package

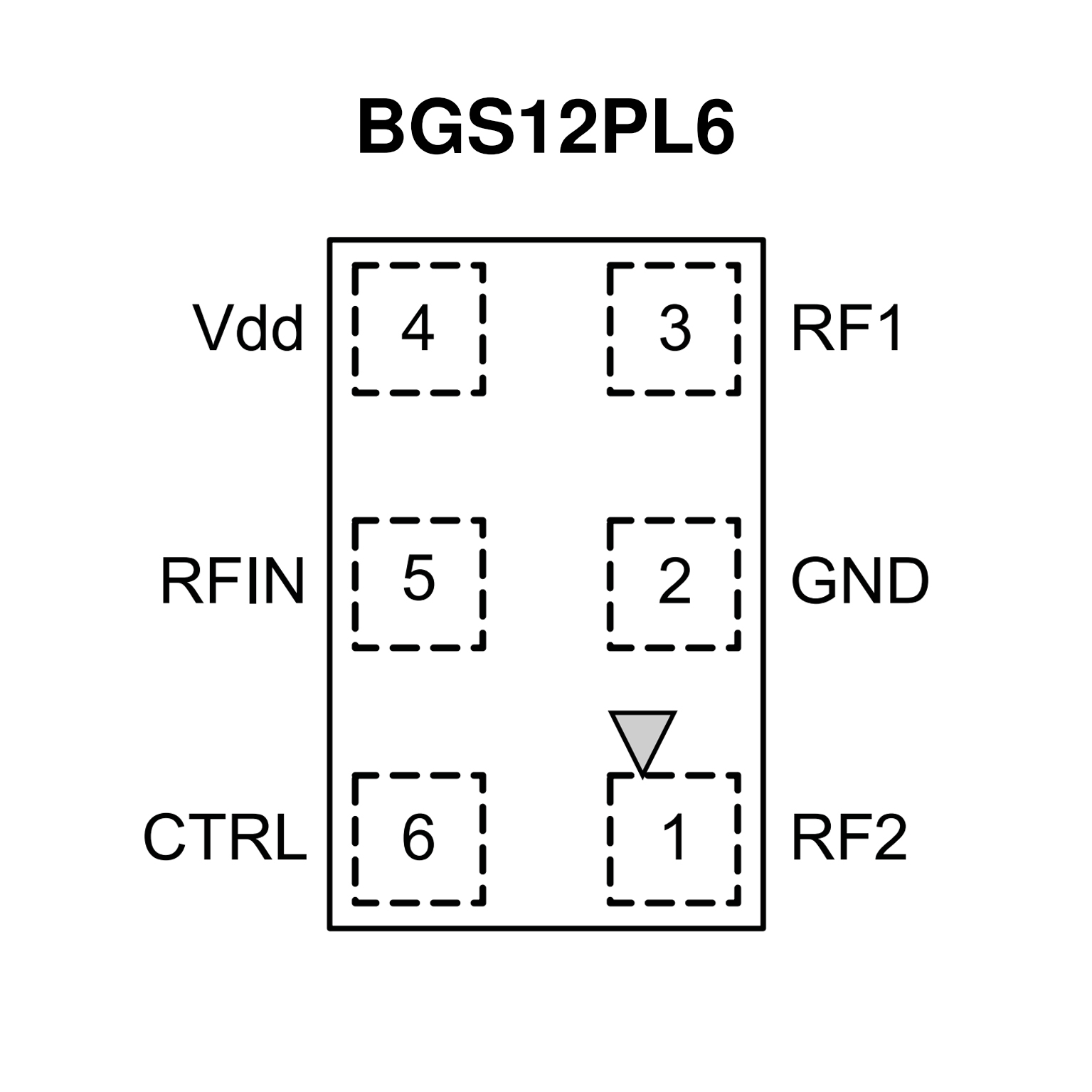

PIN CONFIGUTION
