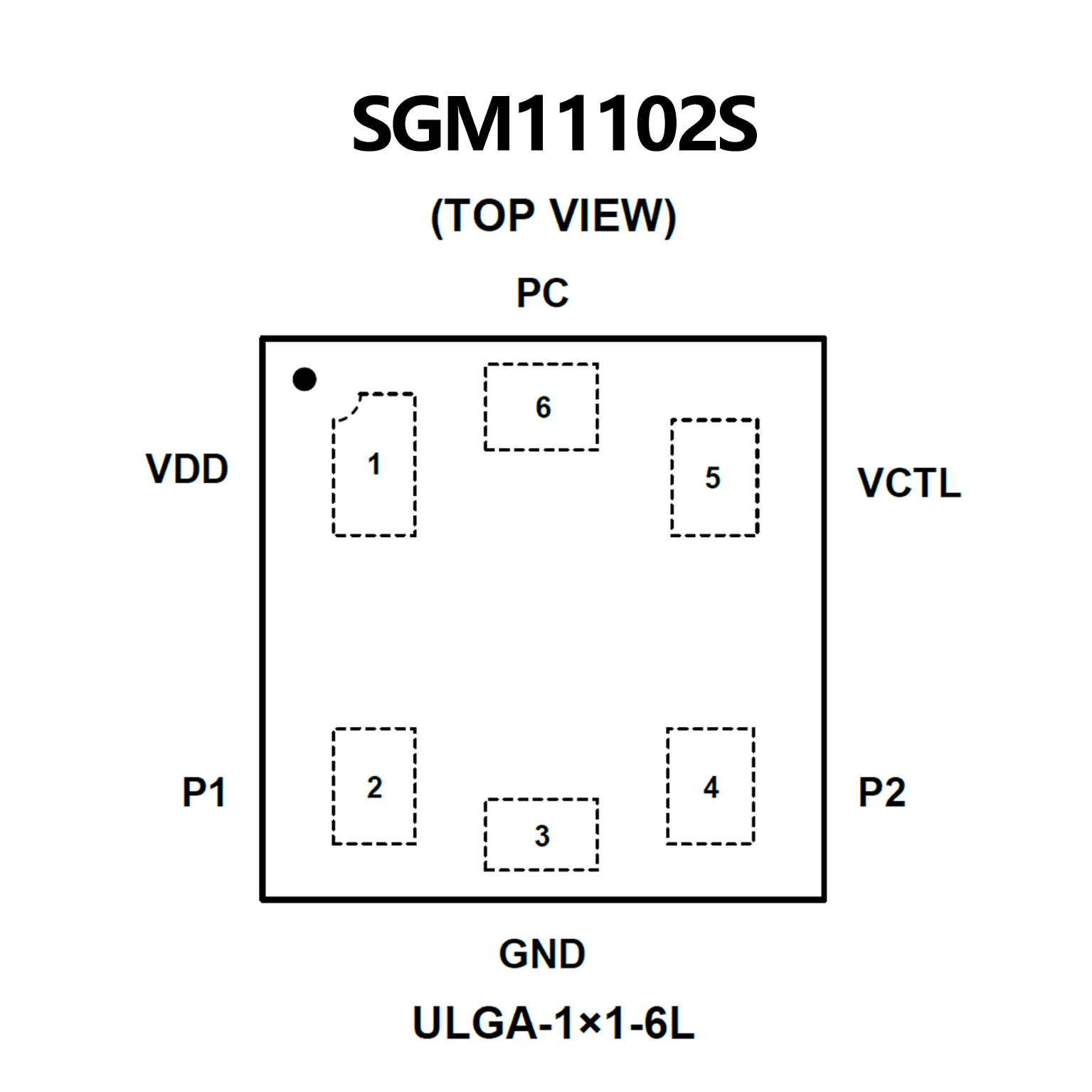

SGM11102S.pdf• High Isolation:
f0 = 1.0GHz, PIN = 0dBm: 60dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 57dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 55dB (TYP)
• Low Insertion Loss:
f0 = 1.0GHz, PIN = 0dBm: 0.53dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 0.55dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 0.60dB (TYP)
• Available in a Green ULGA-1×1-6L Package

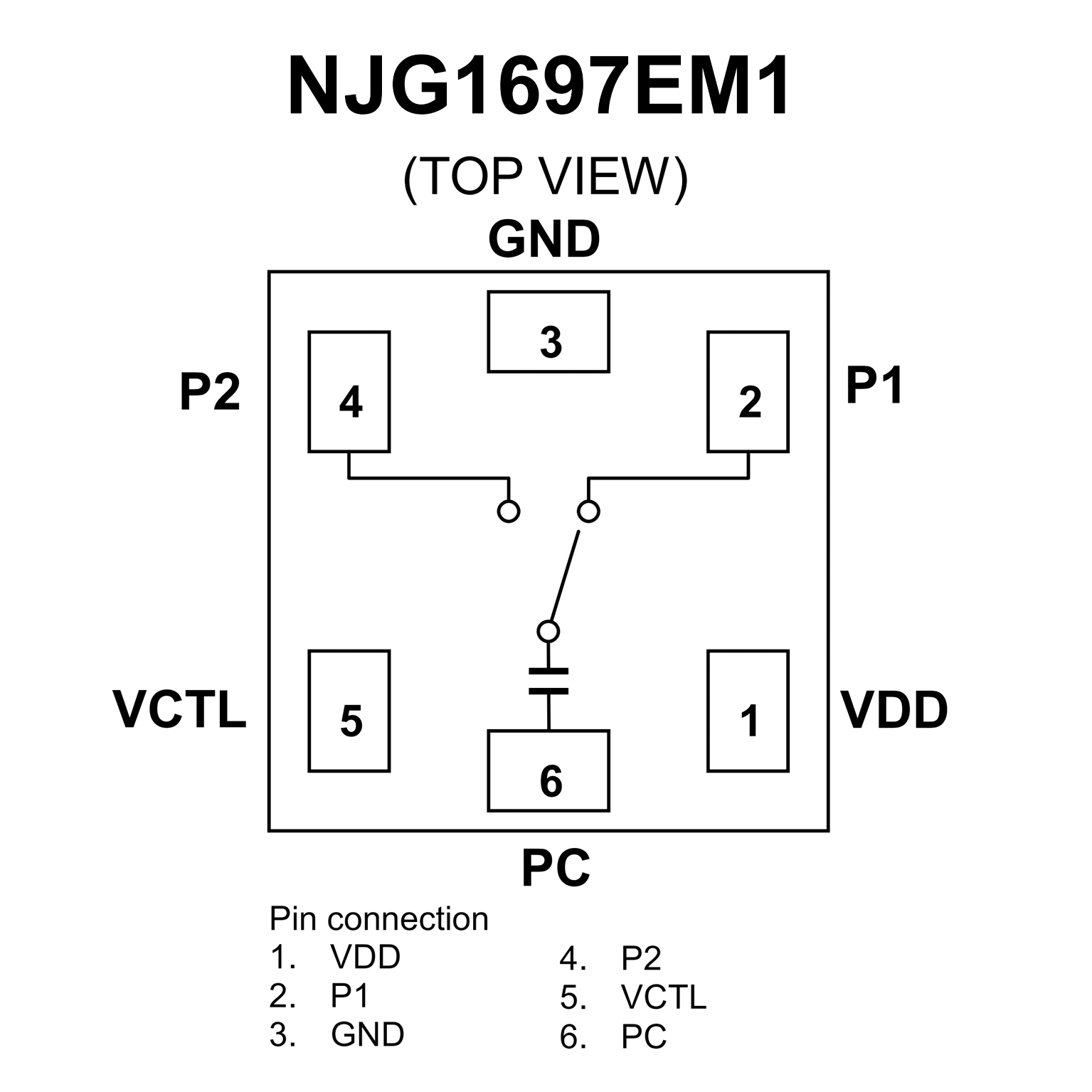

• Low voltage logic control
VCTL(H)=1.8V typ.
• Low voltage operation
VDD=2.7V typ.
• High isolation
50dB typ. @f=1.0GHz, PIN=0dBm
48dB typ. @f=2.0GHz, PIN=0dBm
43dB typ. @f=2.7GHz, PIN=0dBm
• Low insertion loss
0.45dB typ. @f=1.0GHz, PIN=0dBm
0.50dB typ. @f=2.0GHz, PIN=0dBm
0.55dB typ. @f=2.7GHz, PIN=0dBm
• Ultra small & ultra thin package
DFN6-M1 Package (Package size: 1.0
x 1.0 x 0.38mm)
• RoHS compliant and Halogen Free, MSL1
