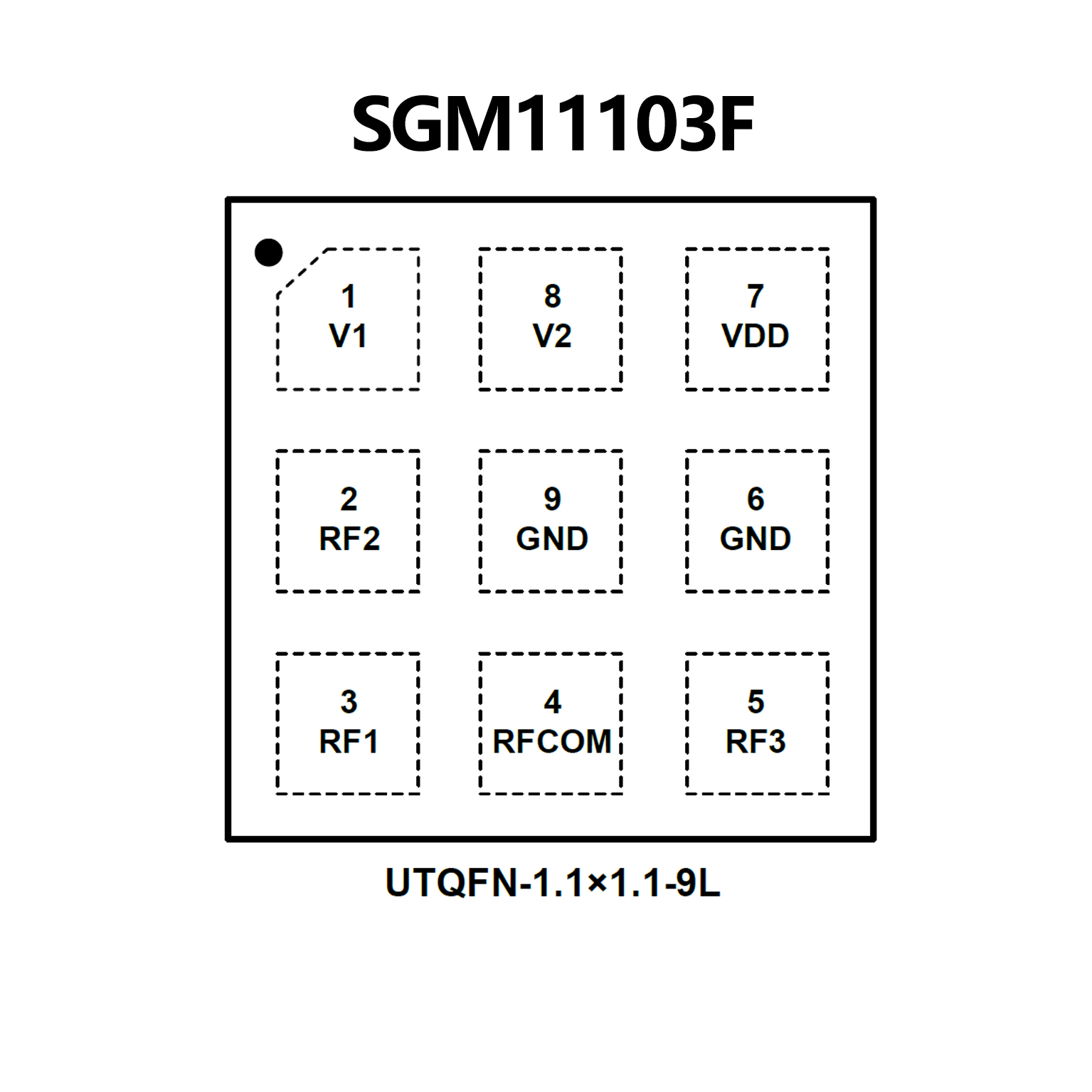

SGM11103F.pdf• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 6GHz
• Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
• High Isolation: 20dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-1.1×1.1-9L Package
• 3 high-linearity TRx paths with power handling
capability of up to 30 dBm
• High switching speed, ideal for WLAN and
Bluetooth applications
• All ports fully bi-directional
• No decoupling capacitors required if no DC applied
on RF lines
• Low insertion loss
• Low harmonic generation
• High port-to-port-isolation
• 0.1 to 3 GHz coverage
• High ESD robustness
• On-chip control logic
• Very small leadless and halogen free package TSLP-9-3
(1.15x1.15mm2) with super low height of 0.31mm
• RoHS compliant package
