High Isolation SP4T SWITCH(高隔离度的SP4T开关),SGM11104S Replace NJG1699.
SGM11104S
SGM11104S.pdf
SGM11104S.pdfFEATURES
• High Isolation:
f0 = 1.0GHz, PIN = 0dBm: 56dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 50dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 46dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 43dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 32dB (TYP)
• Low Insertion Loss:
f0 = 1.0GHz, PIN = 0dBm: 0.46dB (TYP)
f0 = 2.0GHz, PIN = 0dBm: 0.48dB (TYP)
f0 = 2.7GHz, PIN = 0dBm: 0.49dB (TYP)
f0 = 3.8GHz, PIN = 0dBm: 0.51dB (TYP)
f0 = 5.8GHz, PIN = 0dBm: 0.83dB (TYP)
• Available in a Green ULGA-1.6×1.6-14L Package

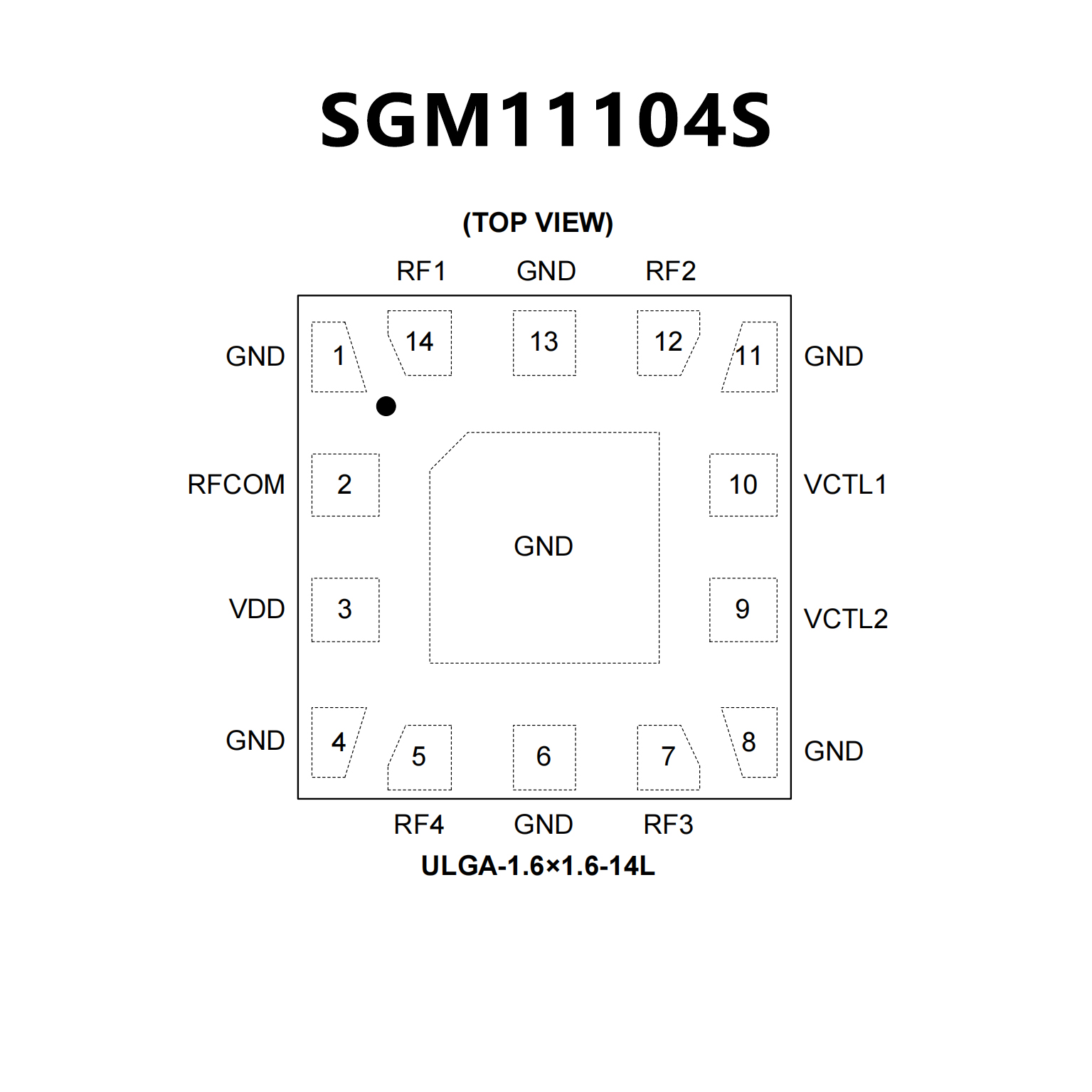

PIN CONFIGUTION
优势替代
FEATURES
• Low operation voltage VDD=+2.7V typ.
• Low control voltage VCTL(H)=+1.8V typ.
• High isolation
50dB typ. @f=1.0GHz, PIN=0dBm
48dB typ. @f=2.0GHz, PIN=0dBm
43dB typ. @f=2.7GHz, PIN=0dBm
• Low insertion loss
0.55dB typ. @f=1.0GHz, PIN=0dBm
0.55dB typ. @f=2.0GHz, PIN=0dBm
0.65dB typ. @f=2.7GHz, PIN=0dBm
• Small package
EQFN14-D7 (Package size: 1.6x1.6x0.397mm typ.)
• RoHS compliant and Halogen Free
• MSL 1

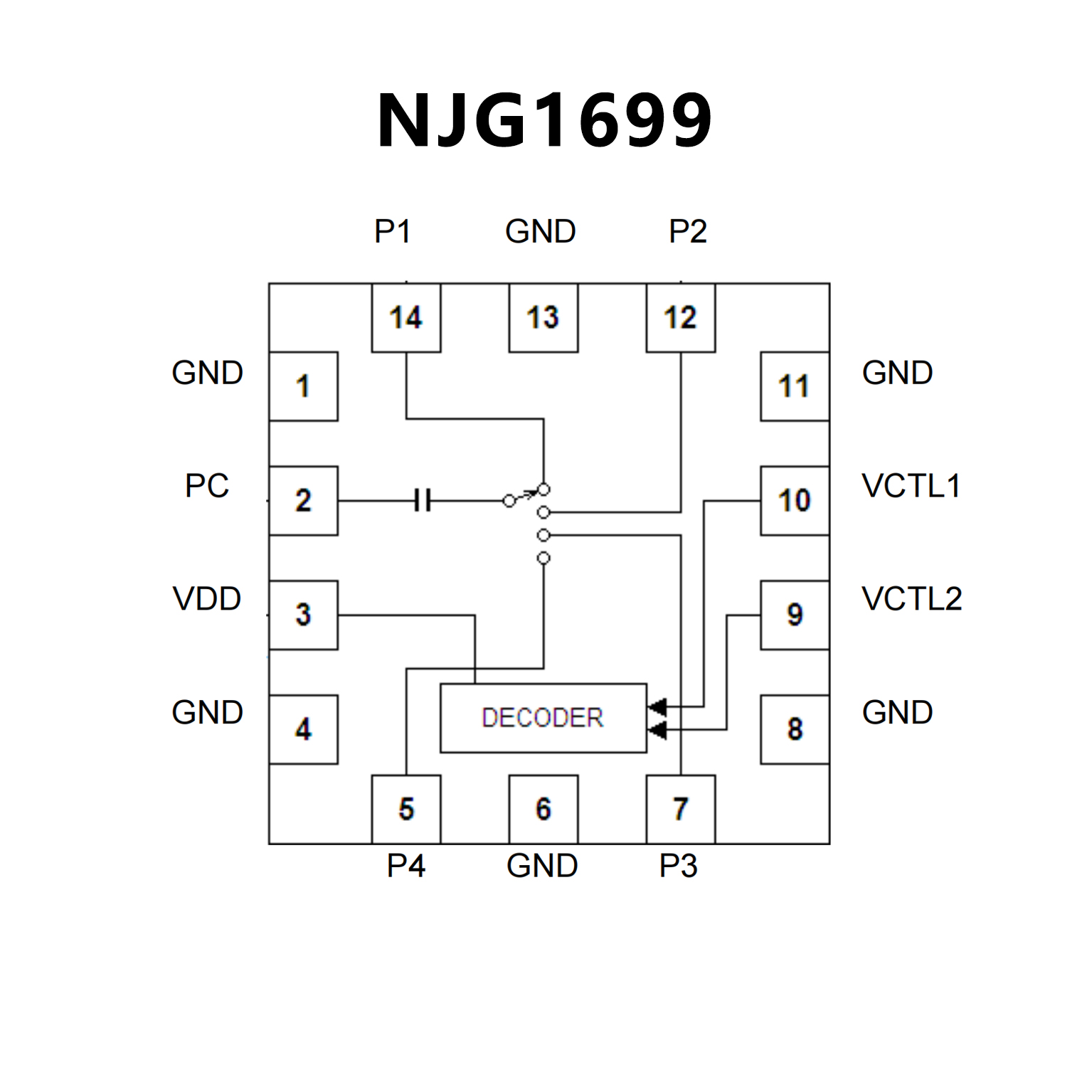

PIN CONFIGUTION
