High Power SP6T for 2G/3G/4G Applications,SGM11106C Replace MXD8666HF.
SGM11106C.pdf优势替代
FEATURES
• Multi-Band operation 0.4 to 3.8GHz
• Excellent insertion loss 0.55 dB @2.7GHz
• Input 0.1dB compression point: 36dBm
• RFFE serial control interface
• No external DC blocking Capacitors required on
RF signal paths unless DC is applied externally
• Compact 2mm x 2mm in QFN-14 package, MSL1

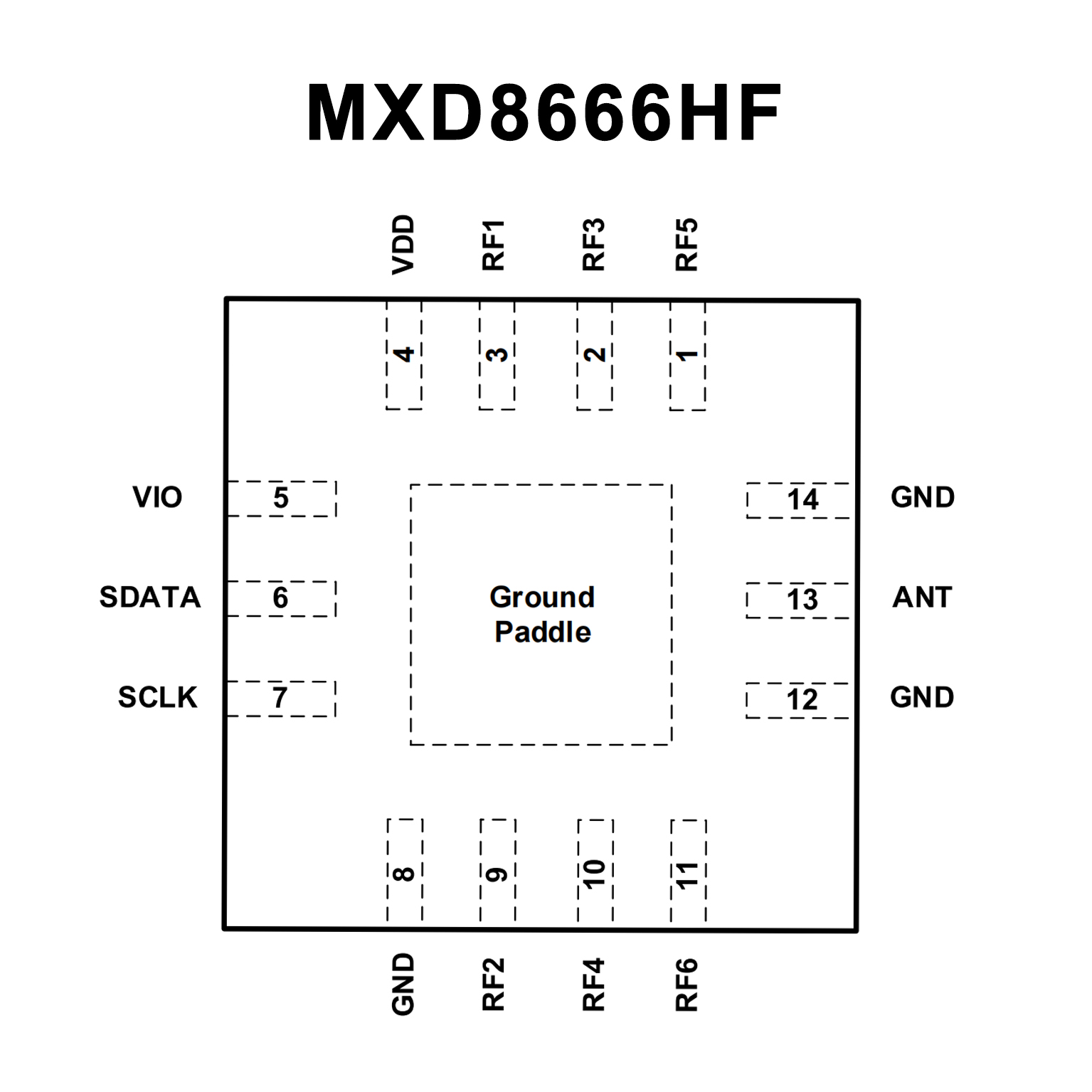

PIN CONFIGUTION
