Broadband High Linearity DP4T Routing Switch, SGM12024A Replace QM11024.

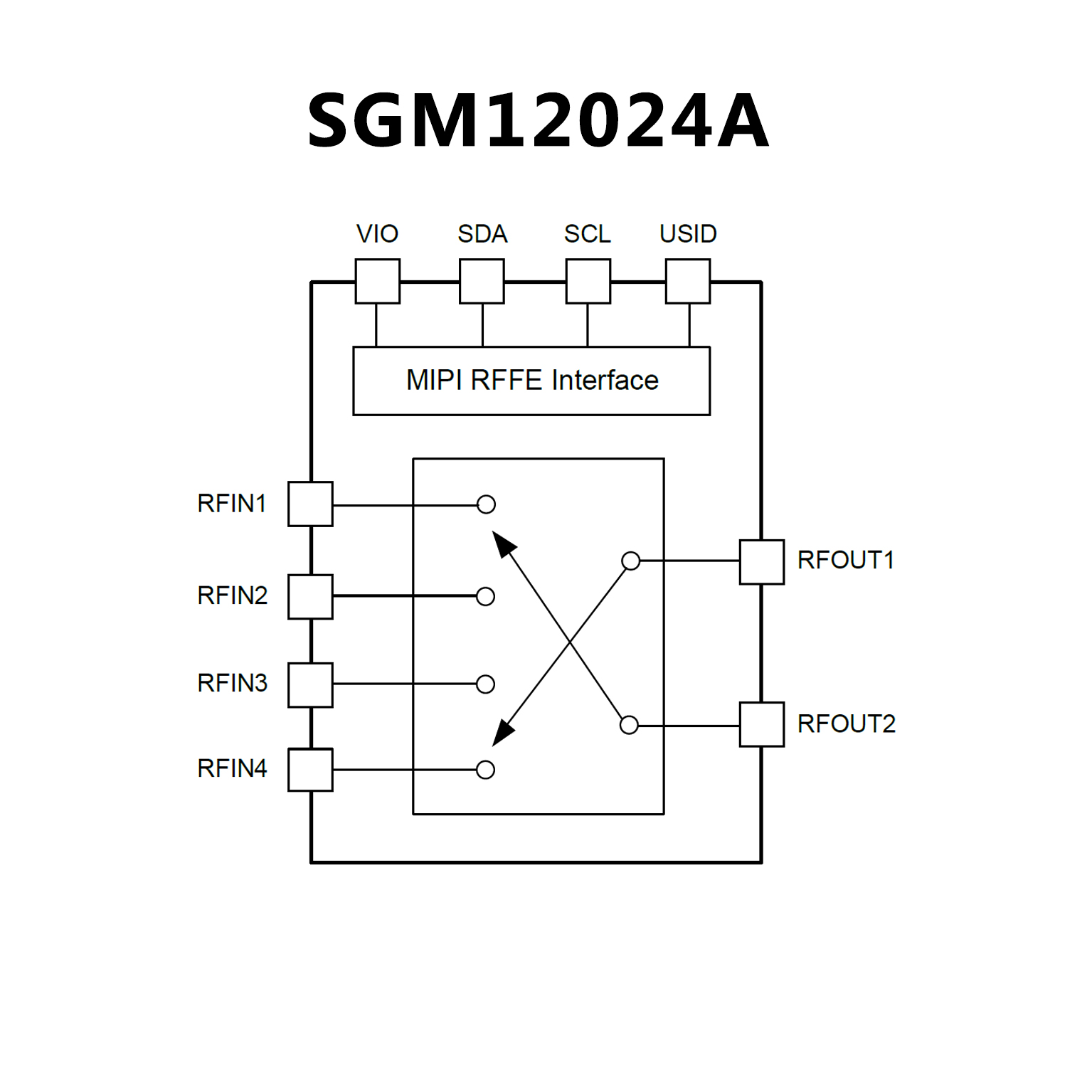

SGM12024A
SGM12024A.pdf
SGM12024A.pdfFEATURES
• Operating Frequency Range: 0.4GHz to 5.0GHz
• Low Insertion Loss
• Input 0.1dB Compression Point: 38dBm
• High Isolation
• MIPI RFFE V2.1 Interface Compatible
• No External DC Blocking Capacitors Required
• Available in a Green UTQFN-2×2-16AL Package
PIN CONFIGUTION
优势替代

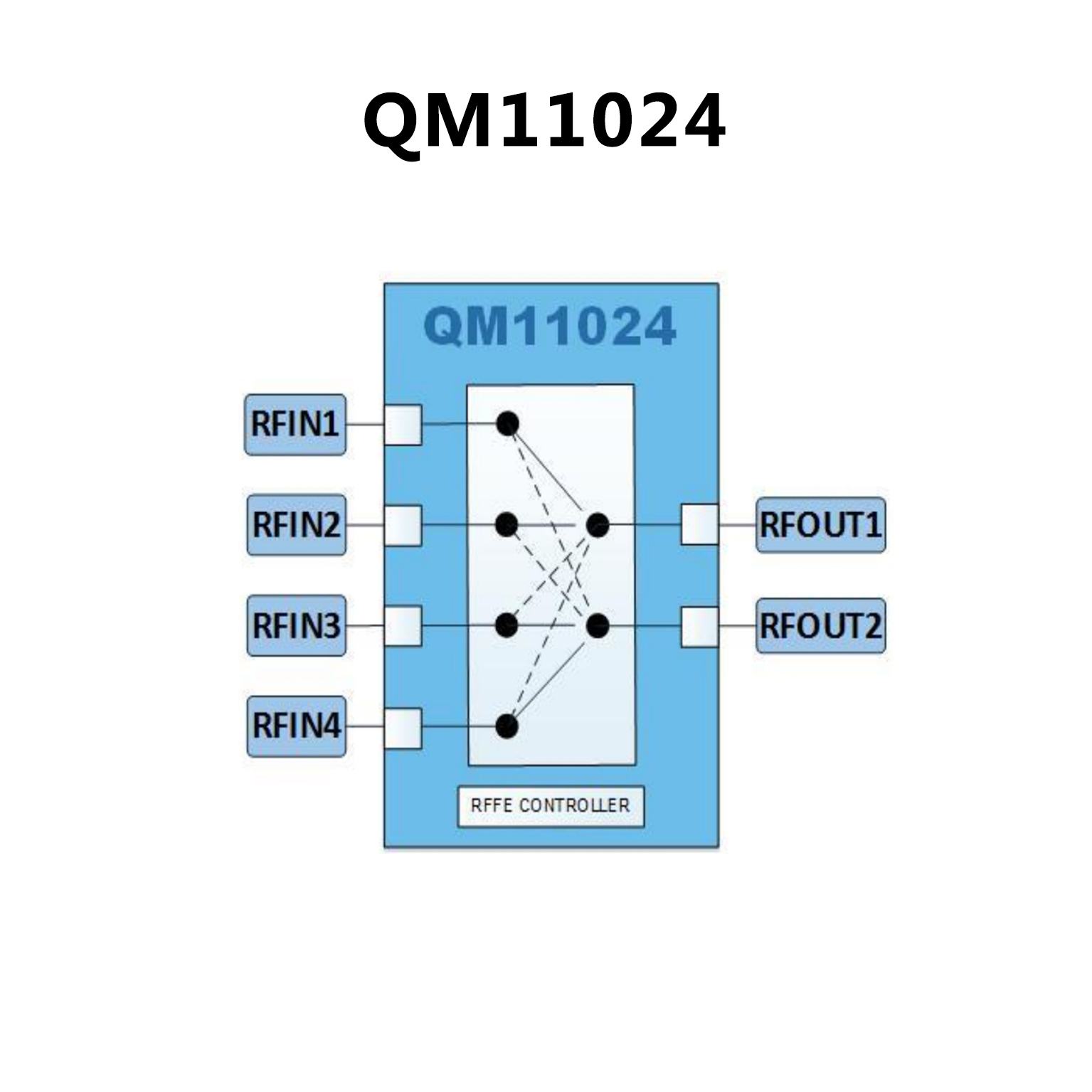

FEATURES
• Excellent Insertion Loss and Isolation performance
• High Linearity
• RFFE 2.1 Control Interface
o UDR Mask write capable (R/WM)
• Broadband Performance Suitable for Multiple Air
Interfaces including 5G applications.
• Slave ID for Multiple Placements on the Same Board
• Very Low Current Consumption
• DC blocking capacitors are not required in typical
applications
• Single VIO supply
PIN CONFIGUTION
