Three Pole Three Throw Antenna Routing Switch,SGM12033A Replace QM11033.
SGM12033A
SGM12033A.pdf
SGM12033A.pdfFEATURES
• Operating Frequency Range: 0.4GHz to 5.8GHz
• Low Insertion Loss
• Input 0.1dB Compression Point: 38dBm
• High Isolation
• MIPI RFFE V2.1 Interface Compatible
• No External DC Blocking Capacitors Required
• Available in a Green ULGA-2×2-16AL Package

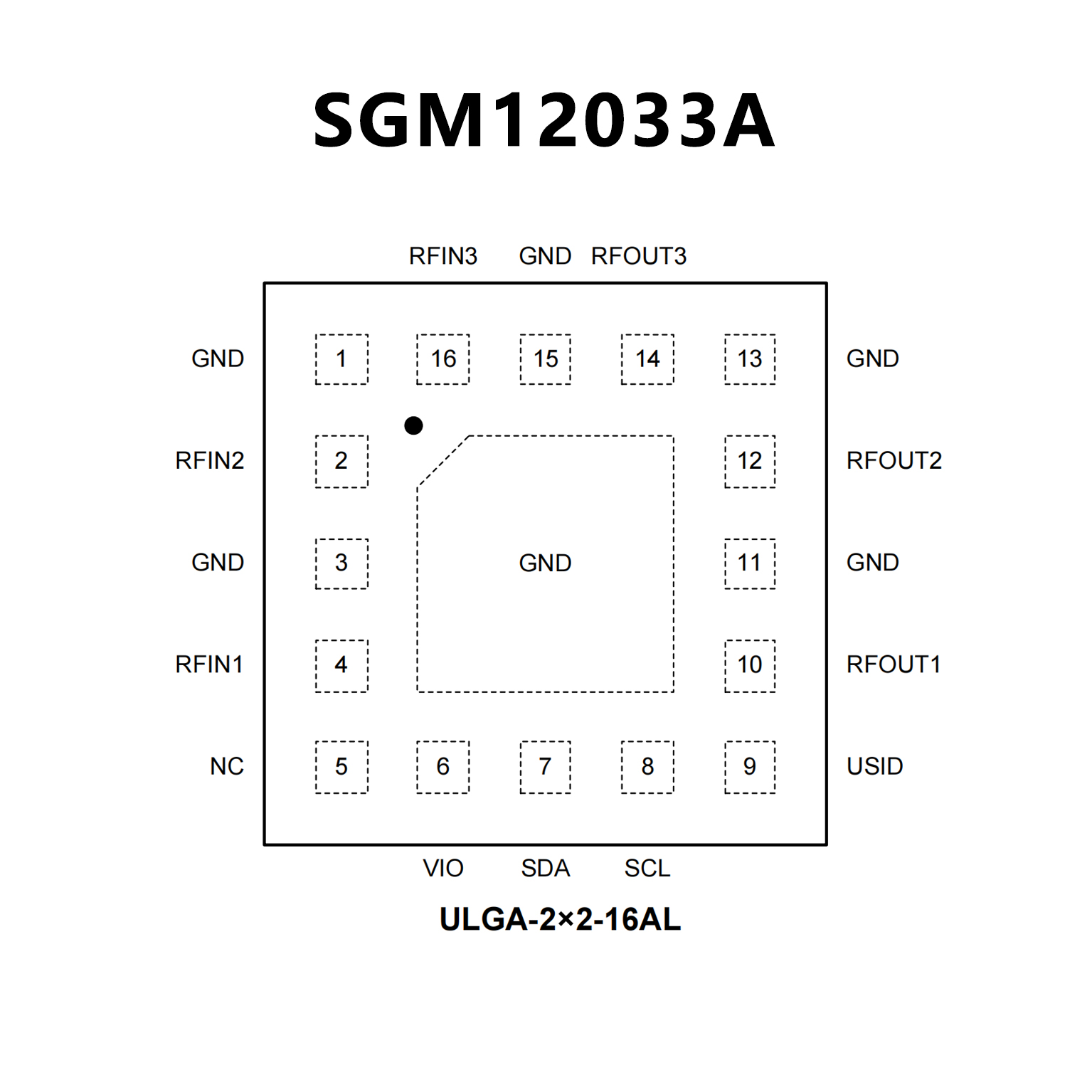

PIN CONFIGUTION
优势替代
FEATURES
• All Paths <2.5us Switching Speed for optimized SRS
applications
• Excellent Insertion Loss and Isolation performance
• High Linearity
• RFFE 2.1 Control Interface with HW Masked Writes
• Broadband Performance Suitable for Multiple Air
Interfaces including 5G applications, 100MHz to 6GHz
• Slave ID for Multiple Placements on the Same Board
• Very Low Current Consumption
• DC blocking capacitors are not required
• Single VIO supply

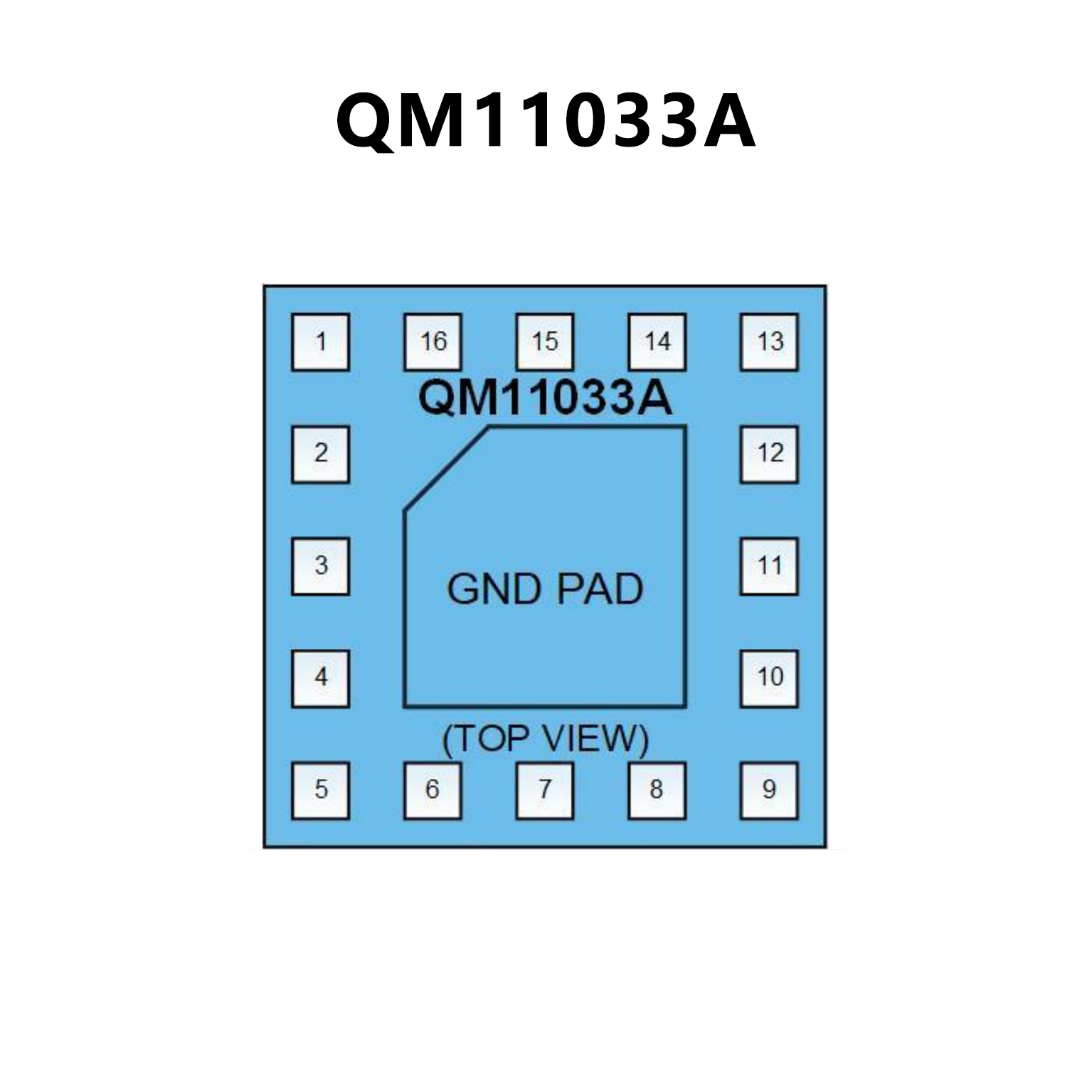

PIN CONFIGUTION
