698 - 6000 MHz High Power RFFE GSM SP4T Switch,SGM12214A Replace QM12114.
SGM12214A
SGM12214A.pdf
SGM12214A.pdfFEATURES
• Operating Frequency Range: 0.4GHz to 5.8GHz
• Low Insertion Loss
• High Isolation
• MIPI RFFE V2.1 Interface Compatible
• Input 0.1dB Compression Point: 40dBm
• Capable of 1.8V Operation
• No External DC Blocking Capacitors Required
• Available in a Green ULGA-1.1×1.1-9L Package

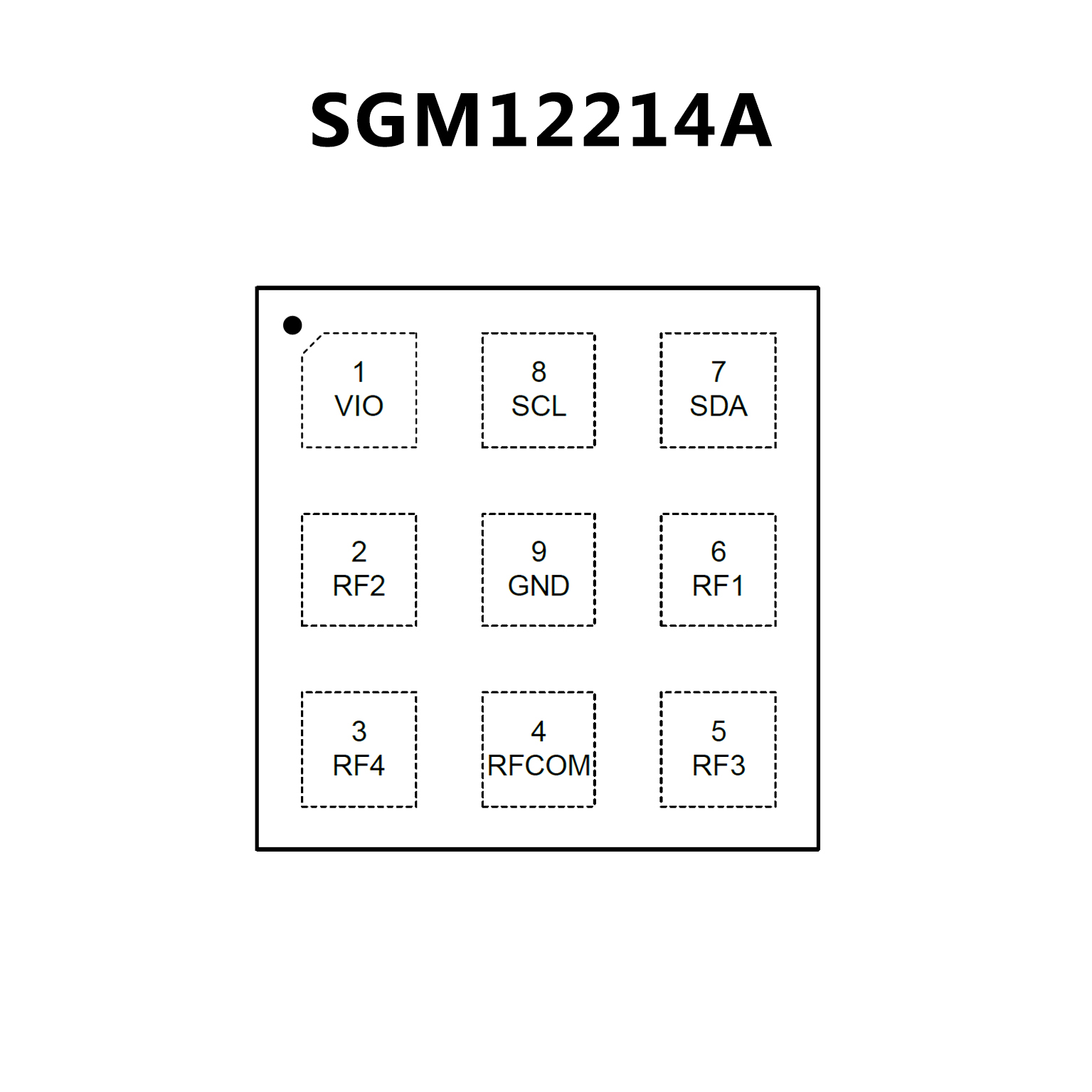

PIN CONFIGUTION
优势替代
FEATURES
• Low Insertion Loss
• High Port-to-Port Isolation
• RFFE 2.0 compatible (52MHz Write Speed)
• Capable of 1.8V operation
• HBM Rating > 1kV on all ports
• Compact size: 1.1mm x 1.1mm x 0.44mm
• DC blocking capacitors are not required in
typical applications

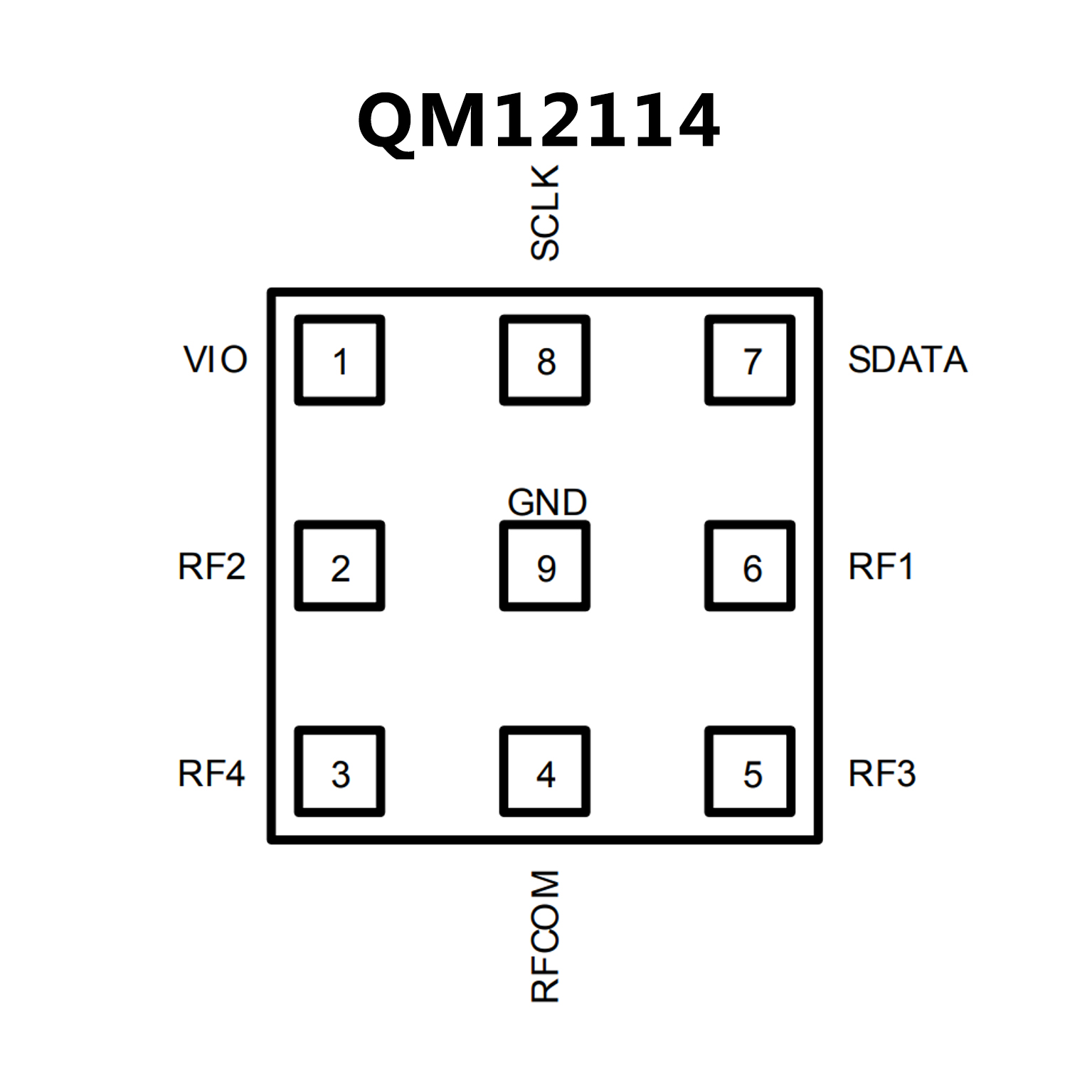

PIN CONFIGUTION
