Low Capacitance 1-Channel ESD Protection, SGM12CB1A5 P2P WS12DTF-B.
SGM12CB1A5
SGM12CB1A5.pdf
SGM12CB1A5.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 5A
• 1.0pF (TYP) Channel Input Capacitance
• Low Profile Package: UTDFN-1×0.6-2L
• Working Voltage: 12V and Below

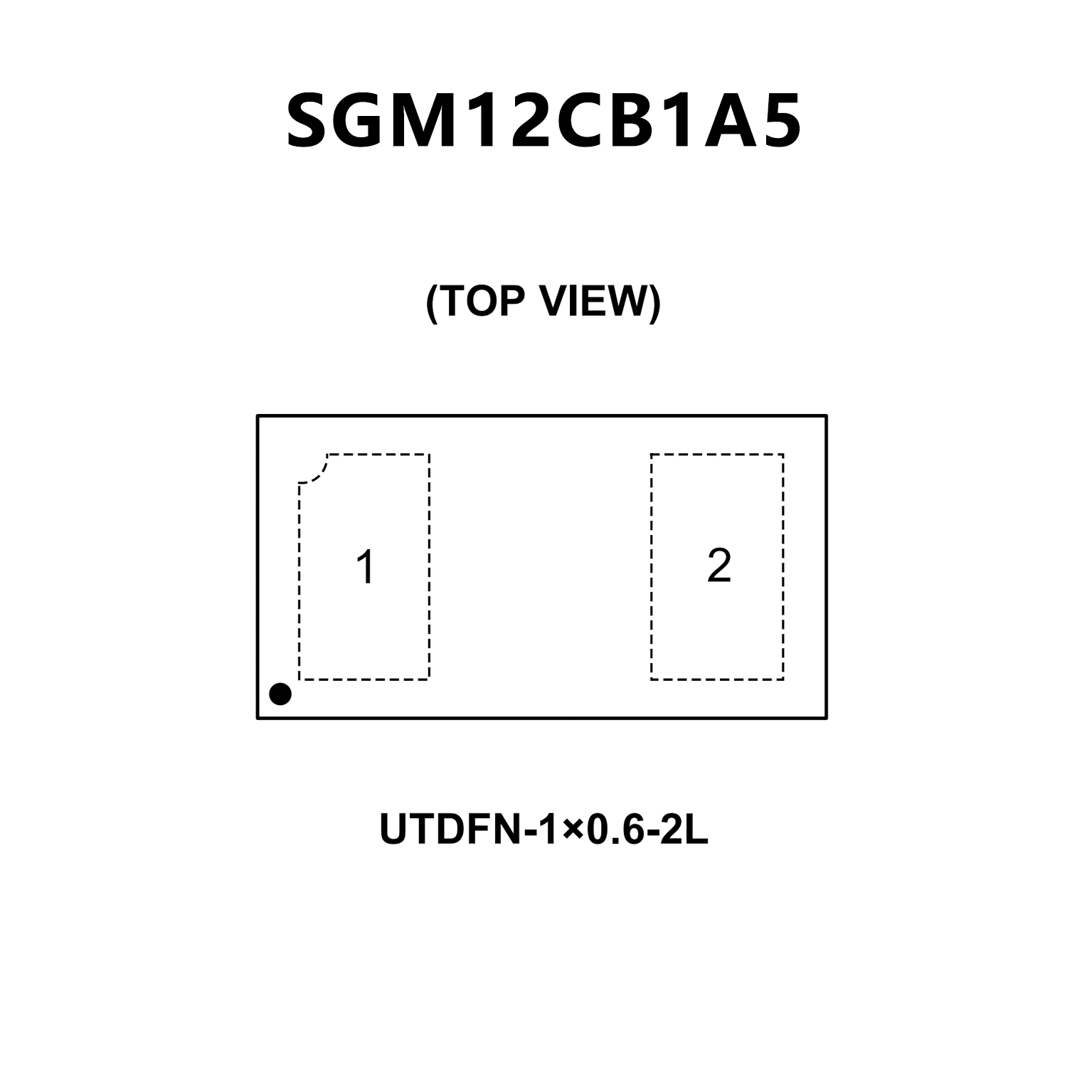

PIN CONFIGUTION
优势替代
FEATURES
• Small Body Outline Dimensions:
• Protects one I/O or power line
• Low Clamping Voltage
• Low Capacitance
• Working Voltage:12V
• Low Leakage Current

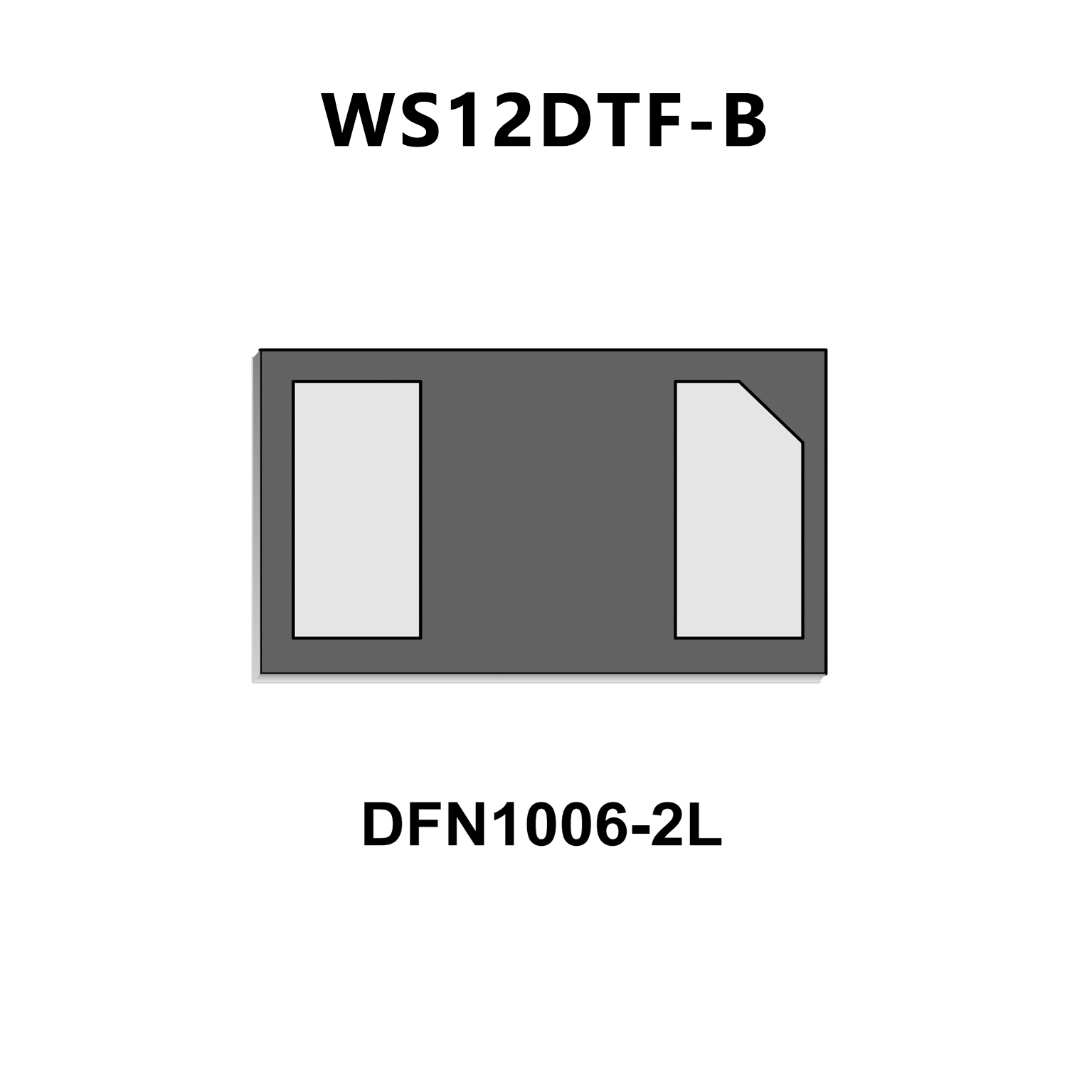

PIN CONFIGUTION
