Ultra-Low Capacitance 1-Channel ESD Protection, SGM12UB1D2 P2P D12V0X1B2LP.
SGM12UB1D2
SGM12UB1D2.pdf
SGM12UB1D2.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
• Rated Peak Pulse Current: 2A
• 0.35pF (TYP) Channel Input Capacitance
• Low Profile Package: UTDFN-1×0.6-2L and
XTDFN-0.6x0.3-2L
• Working Voltage: 12V and Below

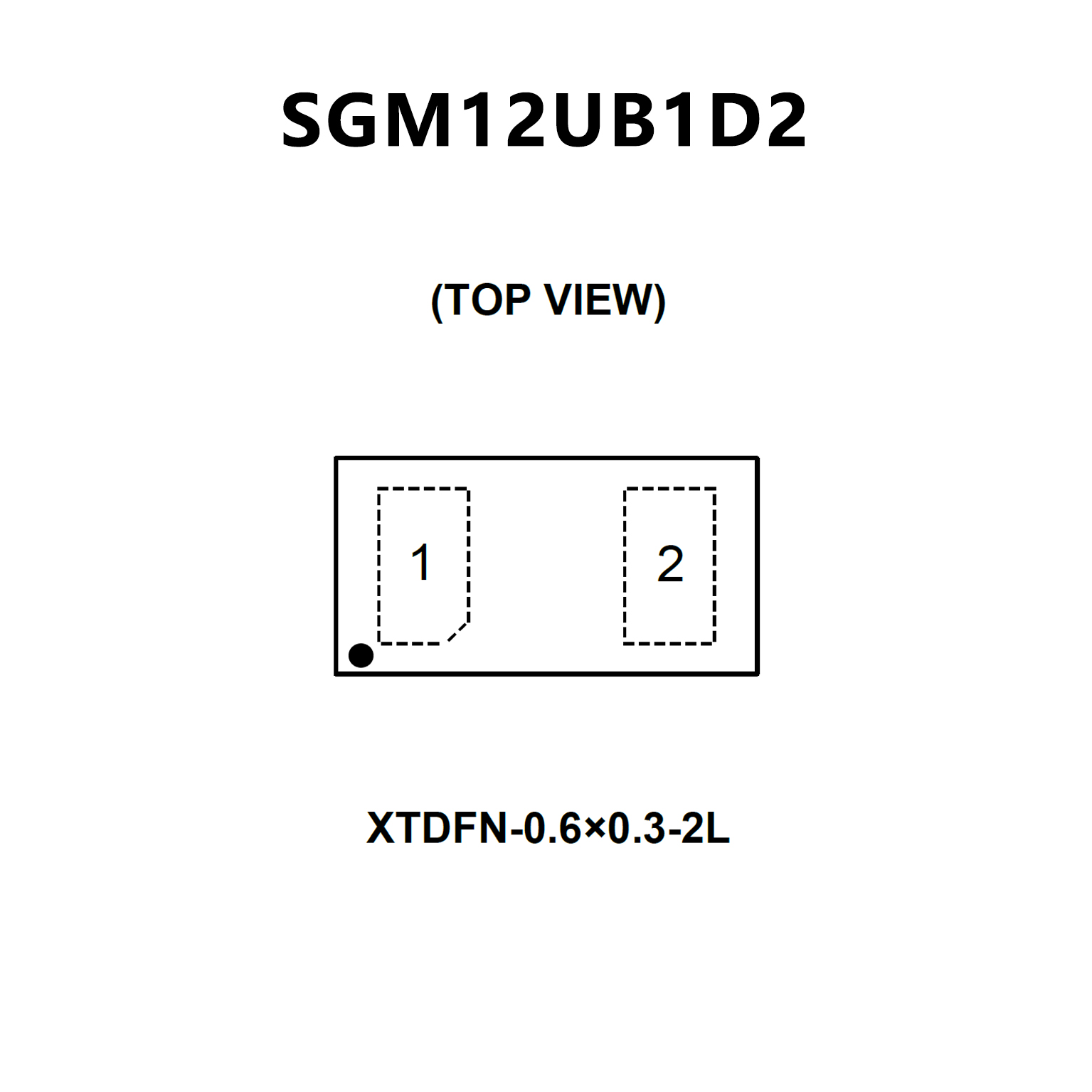

PIN CONFIGUTION
优势替代
FEATURES
• Low Profile Package (0.53mm Max) and Ultra-Small
PCB Footprint Area (1.1mm x 0.7mm Max) Suitable
for Compact Portable Electronics
• Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±24kV, Contact ±20kV
• 1 Channel of ESD Protection
• Low Channel Input Capacitance
PIN CONFIGUTION
