Low Noise Amplifier for GNSS, SGM13001A Replace BGA824N6.
SGM13001A
SGM13001A.pdf
SGM13001A.pdfFEATURES
• High Gain:
19.2dB at 1176.45MHz
18.6dB at 1227.6MHz
18.2dB at 1575.42MHz
• Low Noise Figure:
0.78dB at 1176.45MHz
0.89dB at 1227.6MHz
0.90dB at 1575.42MHz
• Low Operation Current: 6.5mA
• Current Less than 1μA in Power Down Mode
• Operating Frequency Range:
1160MHz to 1300MHz
1550MHz to 1615MHz
• Single Supply Voltage Range: 1.6V to 3.1V
• Low Cost BOM
• Lead-Free and RoHS Compliant
• Available in a Green UTDFN-1.1×0.7-6L Package

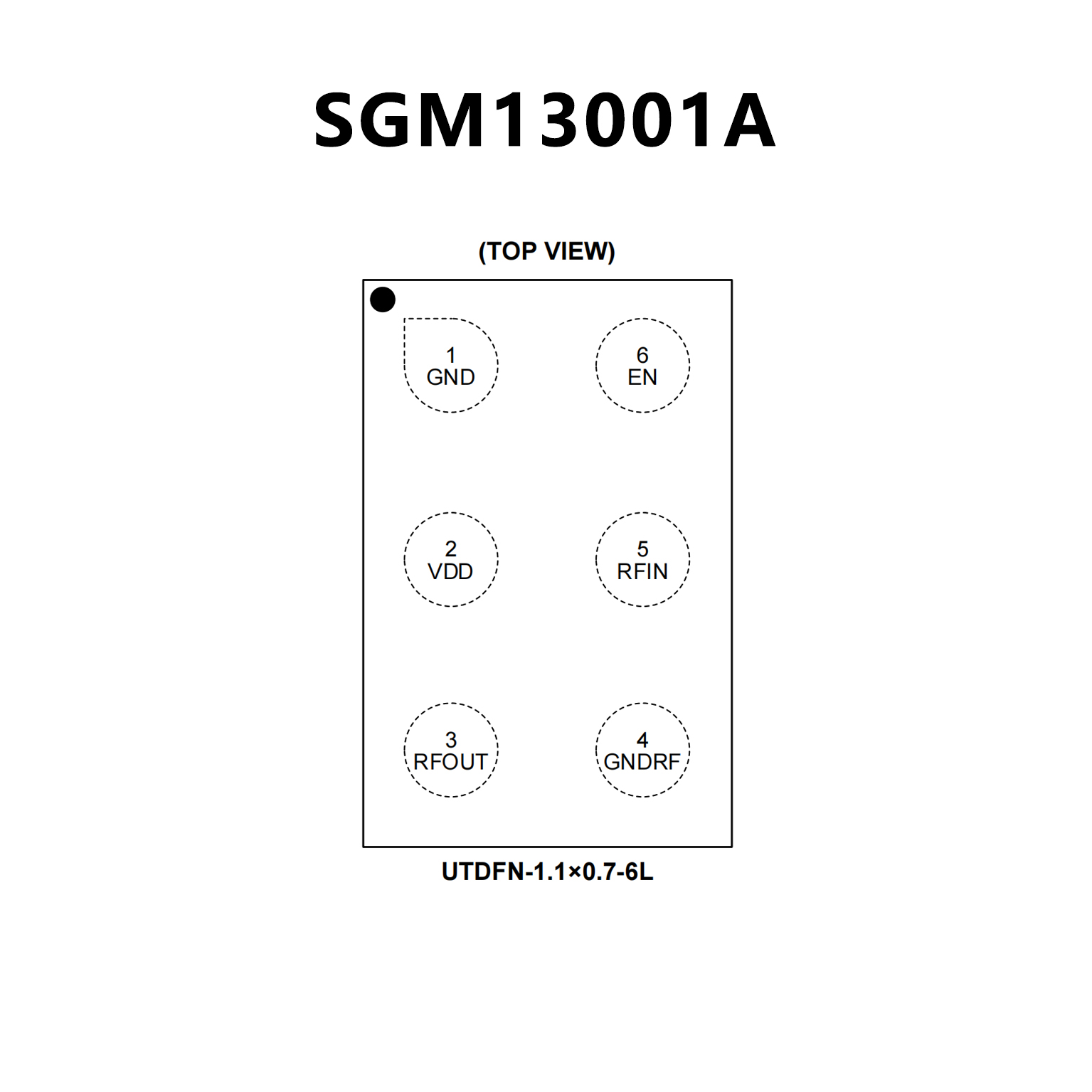

PIN CONFIGUTION
优势替代
FEATURES
• Operating frequencies: 1164 - 1615 MHz
• Insertion power gain: 17.0 dB
• Input 1 dB compression point: -6 dBm
• Low noise figure: 0.55 dB
• Low current consumption: 3.8 mA
• Digital on/off switch (1V logic level high)
• Ultra small TSNP-6-2 and TSNP-6-10 leadless package
• RF output internally matched to 50 Ohm
• Low external component count

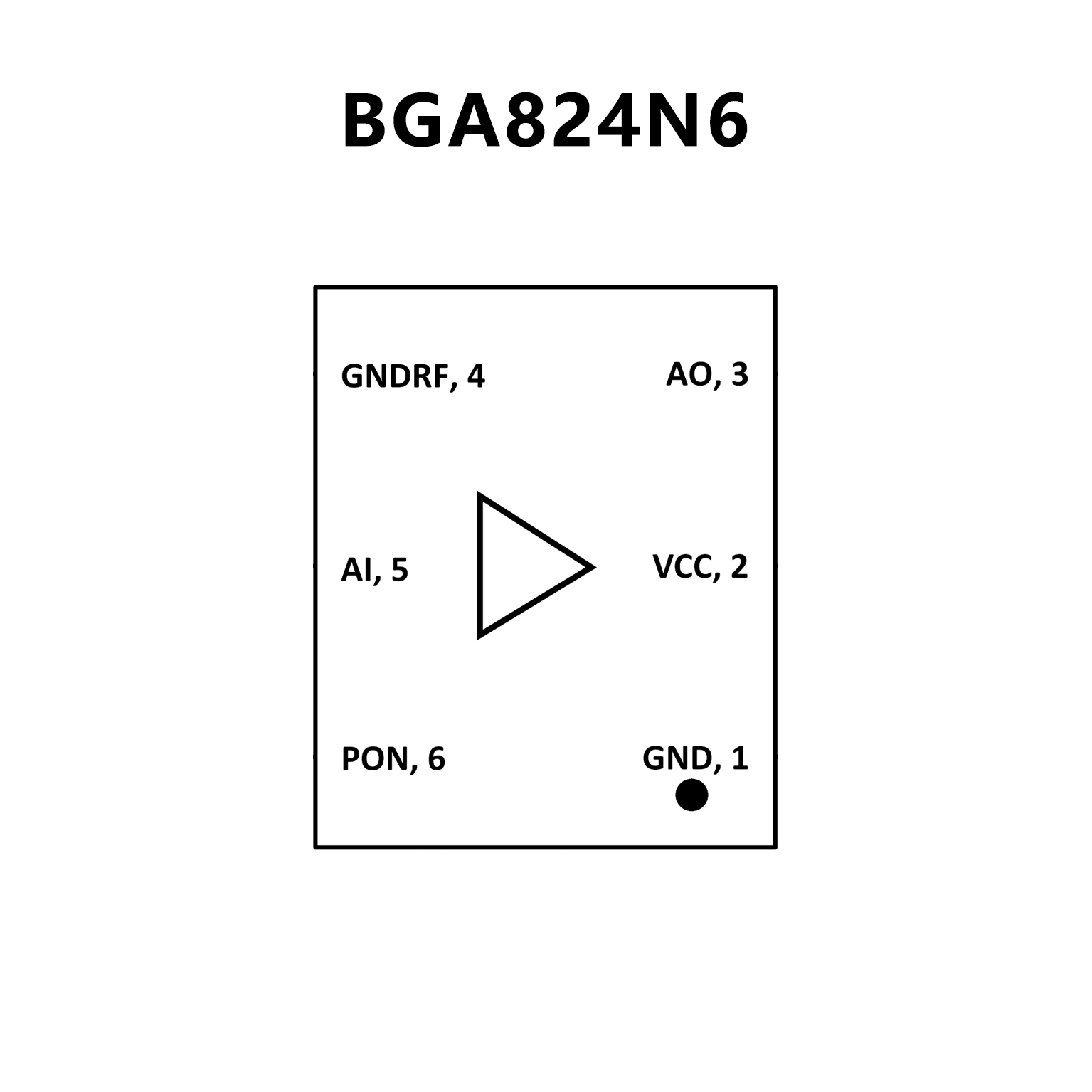

PIN CONFIGUTION
