Low Noise Amplifier for GNSS, SGM13001C Replace BGU7005.
SGM13001C
SGM13001C.pdf
SGM13001C.pdfFEATURES
• High Gain: 19.1dB at 1575.42MHz
• Low Noise Figure: 0.83dB at 1575.42MHz
• Low Operation Current: 6.4mA
• Current Less than 1μA in Power Down Mode
• Operating Frequency Range:1550MHz to 1615MHz
• Single Supply Voltage Range: 1.6V to 3.1V
• Low Cost BOM
• Lead-Free and RoHS Compliant
• Available in a Green UTDFN-1.5×1.0-6AL Package

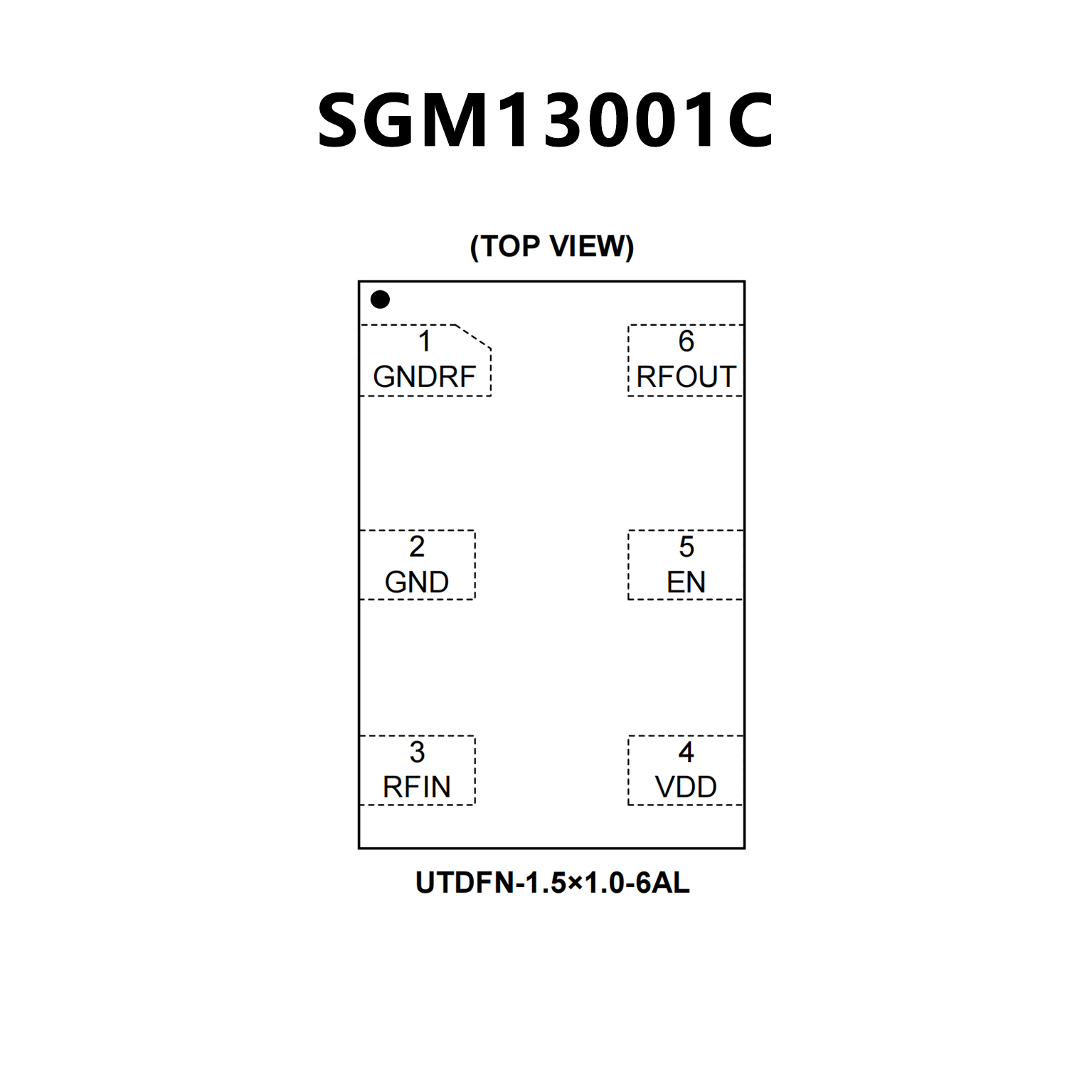

PIN CONFIGUTION
优势替代
FEATURES
• Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
• Noise figure (NF) = 0.85 dB
• Gain 16.5 dB
• High input 1 dB compression point Pi(1dB) of -11 dBm
• High out of band IP3i of 9 dBm
• Supply voltage 1.5 V to 3.1 V
• Power-down mode current consumption < 1 mA
• Optimized performance at low supply current of 4.5 mA
• Integrated matching for the output
• Requires only one input matching inductor and one supply
decoupling capacitor
• Input and output DC decoupled
• ESD protection on all pins (HBM > 2 kV)
• Integrated temperature stabilized bias for easy design
• Small 6-pin leadless package 1 mm ´ 1.45 mm ´ 0.5 mm
• 110 GHz transit frequency - SiGe:C technology
PIN CONFIGUTION
