Low Noise Amplifier for GNSS, SGM13001C Replace MXDLN16G.
SGM13001C
SGM13001C.pdf
SGM13001C.pdfFEATURES
• High Gain: 19.1dB at 1575.42MHz
• Low Noise Figure: 0.83dB at 1575.42MHz
• Low Operation Current: 6.4mA
• Current Less than 1μA in Power Down Mode
• Operating Frequency Range:1550MHz to 1615MHz
• Single Supply Voltage Range: 1.6V to 3.1V
• Low Cost BOM
• Lead-Free and RoHS Compliant
• Available in a Green UTDFN-1.5×1.0-6AL Package

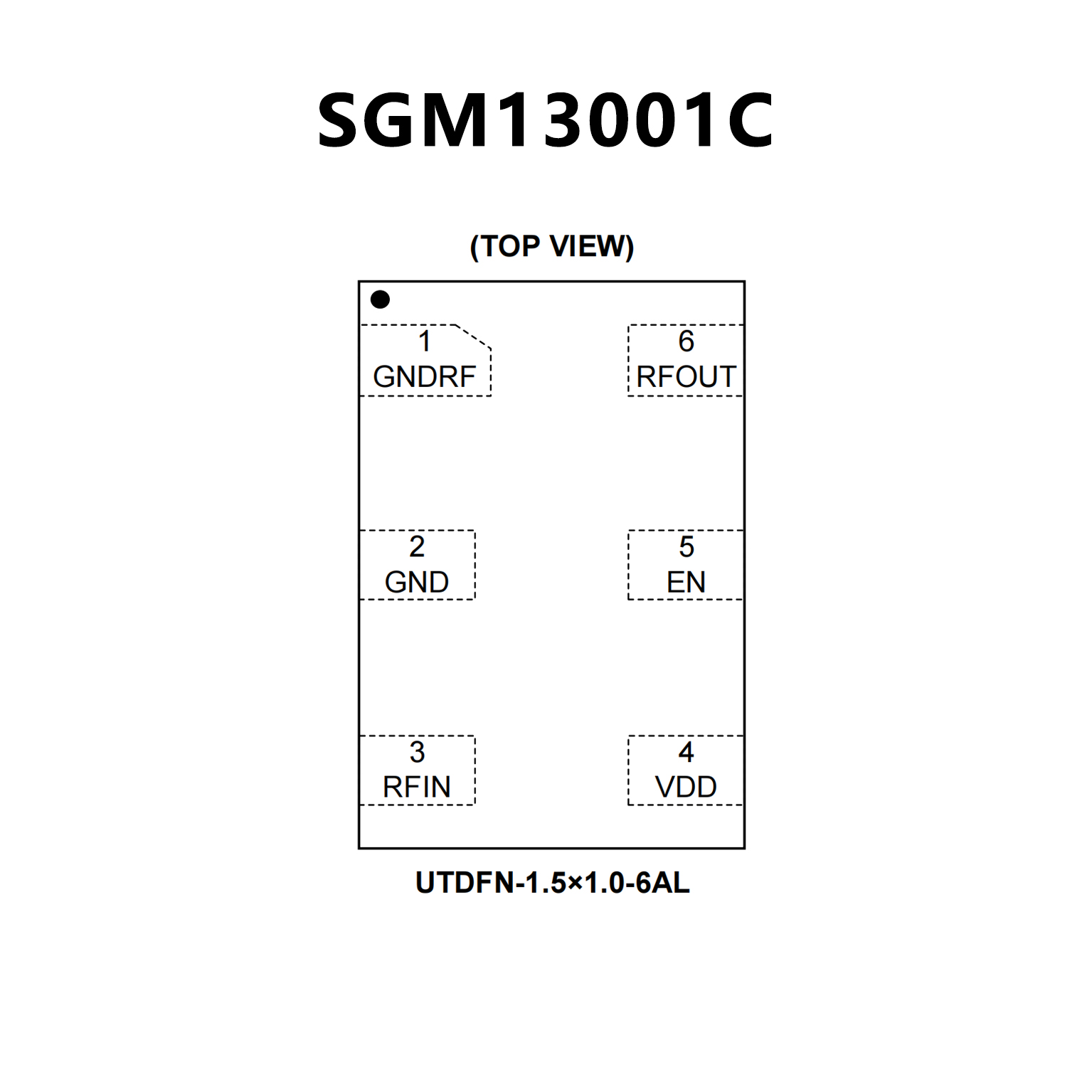

PIN CONFIGUTION
优势替代
FEATURES
• High Gain: 19dB
• Low noise figure 0.6dB @ 1575.42MHz
• Low operation current 6mA & PD current
less than 1uA
• 3.5mA current under 1.2V power supply
• Single supply voltage range 1.1V to 2.85V
• Small package 1mm×1.5mm×0.75mm
• Low cost BOM
• Lead-Free and RoHS-Compliant

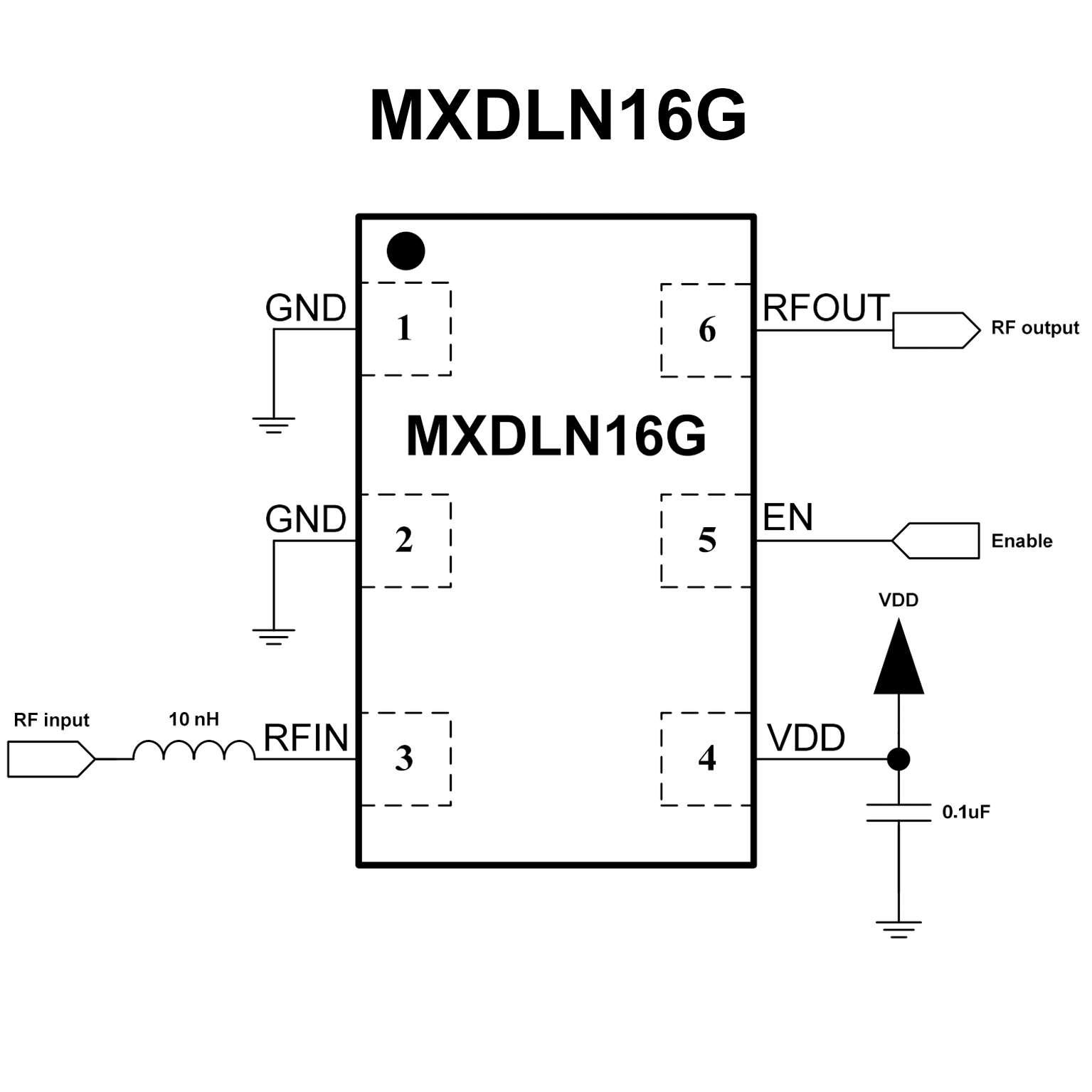

PIN CONFIGUTION
