• Cover full GNSS L1 band,from 1559 MHz to 1610 MHz

• Noise figure (NF) = 0.55 dB

• Gain = 18.5 dB

• High input 1 dB compression point of 7 dBm

• High out of band IP3i of 6 dBm

• Supply voltage 1.5 V to 3.1 V

• Self shielding package concept

• Integrated supply decoupling capacitor

• Optimized performance at a supply current of 4.6 mA

• Power-down mode current consumption < 1 A

• Integrated temperature stabilized bias for easy design

• Require only one input matching inductor

• Input and output DC decoupled

• ESD protection on all pins (HBM > 2 kV)

• Integrated matching for the output

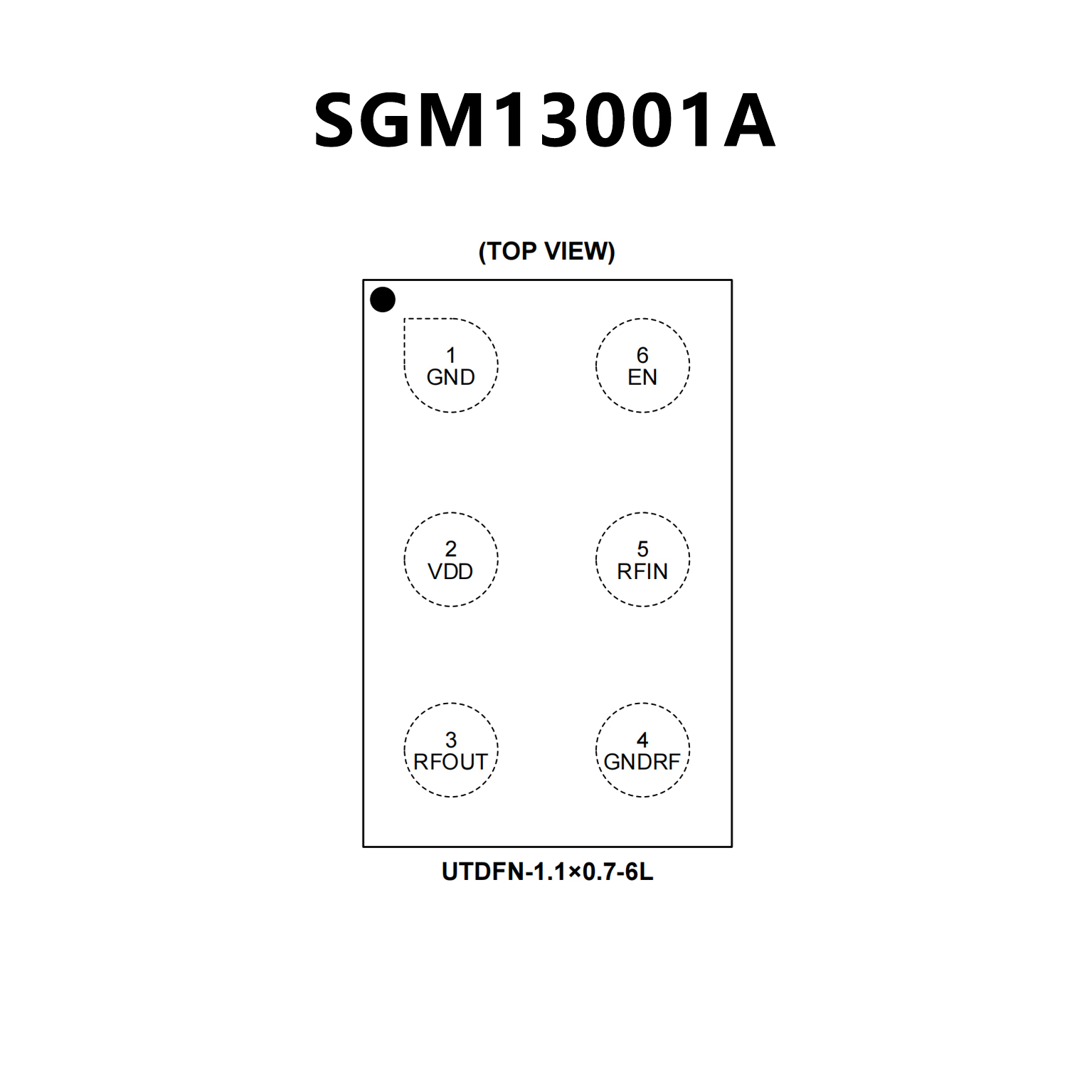

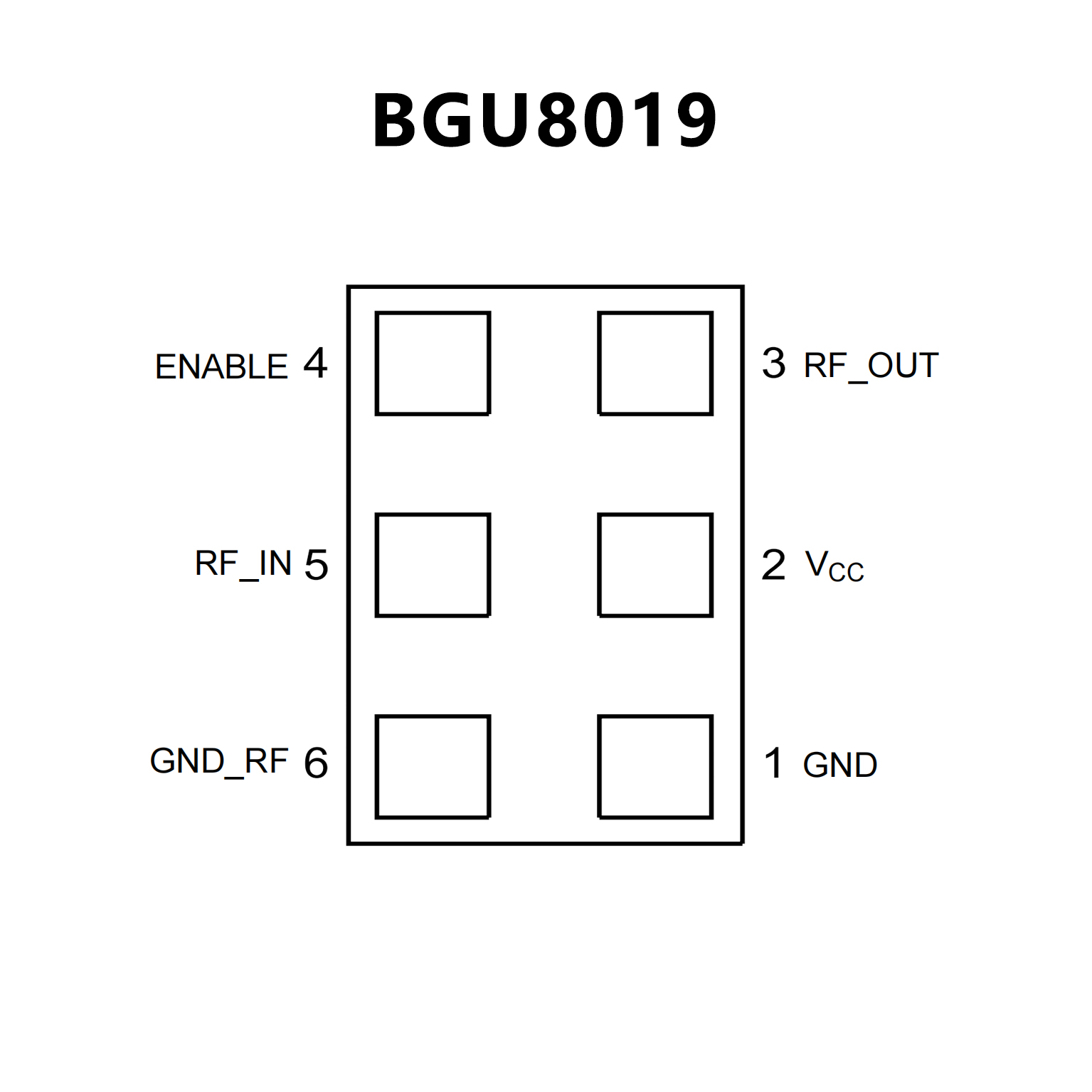

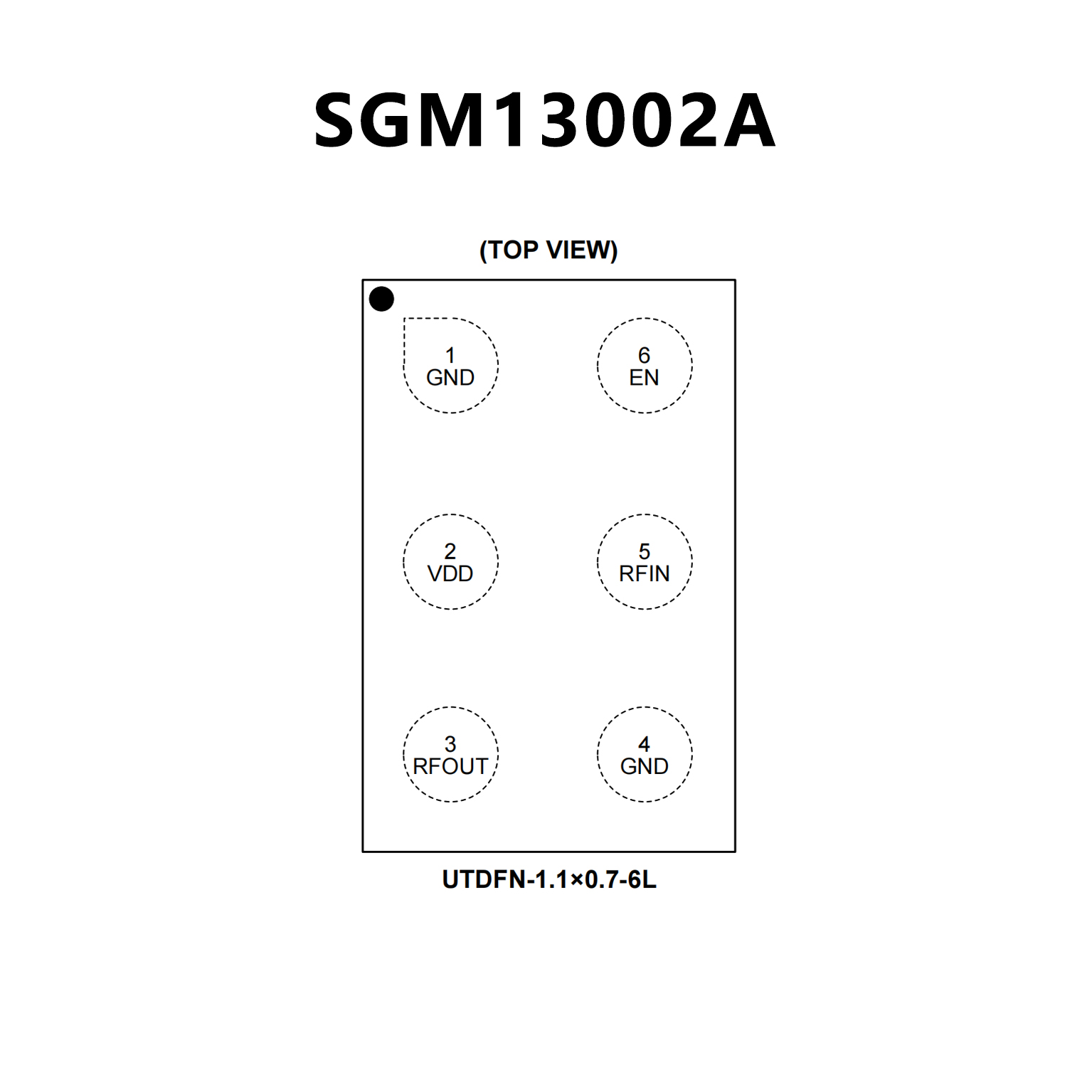

• Available in 6-pins leadless package 1.1 mmx0.7 mm

  x0.37 mm; 0.4 mm pitch: SOT1232

• 180 GHz transit frequency - SiGe:C technology

• Moisture sensitivity level of 1
