Silicon Germanium Low Noise Amplifier for Global Navigation Satellite Systems (GNSS), P2P BGA524N6.
SGM13003A
SGM13003A.pdf
SGM13003A.pdfFEATURES
• High Gain:
17.0dB at 1176.45MHz
18.0dB at 1227.60MHz
17.4dB at 1575.42MHz
• Low Noise Figure:
0.96dB at 1176.45MHz
0.93dB at 1227.60MHz
1.00dB at 1575.42MHz
• Low Operation Current: 2.2mA
• Current Less than 1μA in Power Down Mode
• Operating Frequency Range:
1160MHz to 1300MHz
1550MHz to 1615MHz
• Single Supply Voltage Range: 1.5V to 3.6V
• Low Cost BOM
• Lead-Free and RoHS Compliant
• Available in a Green UTDFN-1.1×0.7-6L Package

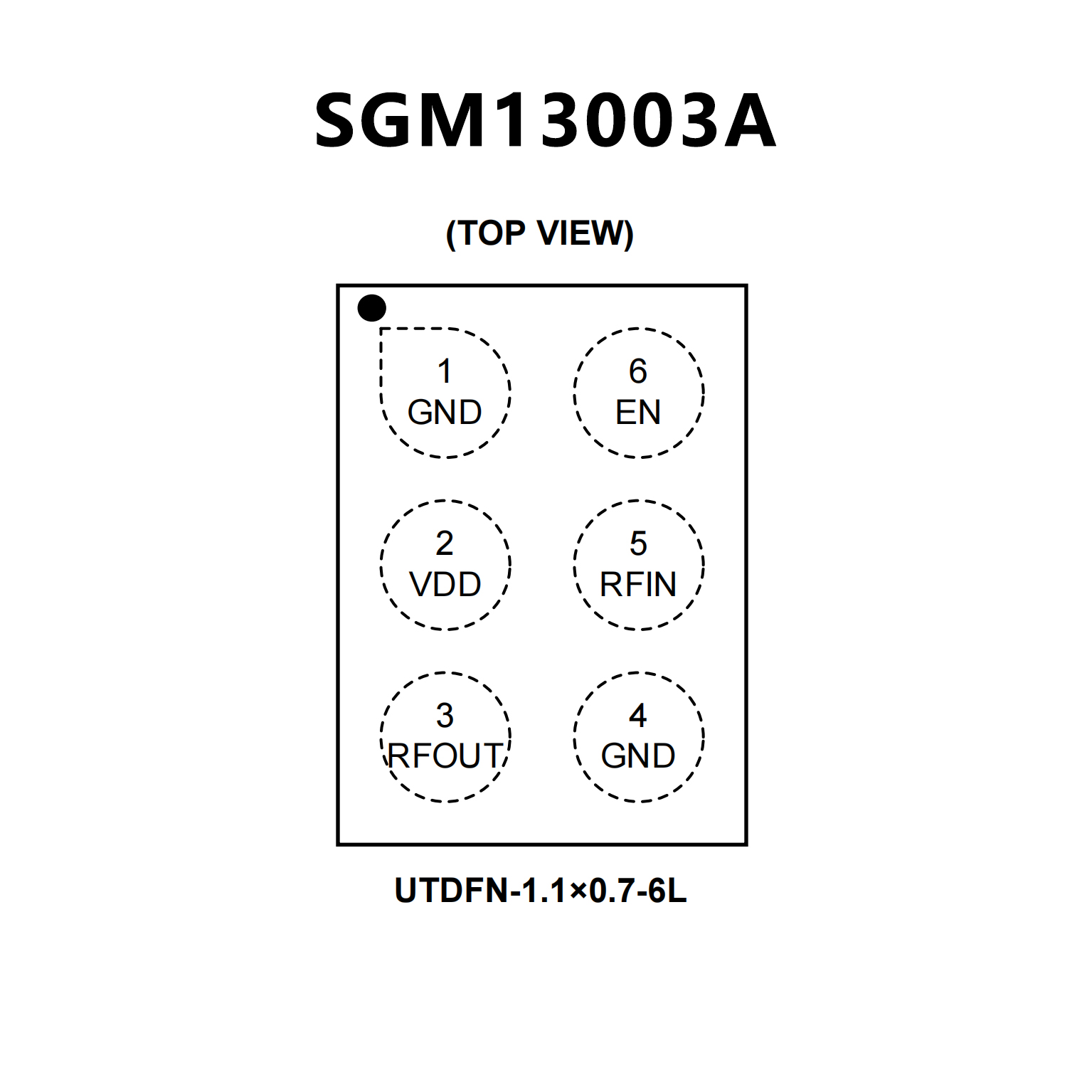

PIN CONFIGUTION
优势替代
FEATURES
• High insertion power gain: 19.6 dB
• Out-of-band input 3rd order intercept point: -4dBm
• Input 1 dB compression point: -12 dBm
• Low noise figure: 0.55 dB
• Very low current consumption: 2.5 mA
• Operating frequencies: 1550 - 1615 MHz
• Supply voltage: 1.5 V to 3.3 V
• Digital on/off switch (1V logic high level)
• Ultra small TSNP-6-2 leadless package
(footprint: 0.7 x 1.1 mm2)
• B7HF Silicon Germanium technology
• RF output internally matched to 50 Ω
• Only 1 external SMD component necessary
• 2kV HBM ESD protection (including AI-pin)
• Pb-free (RoHS compliant) package

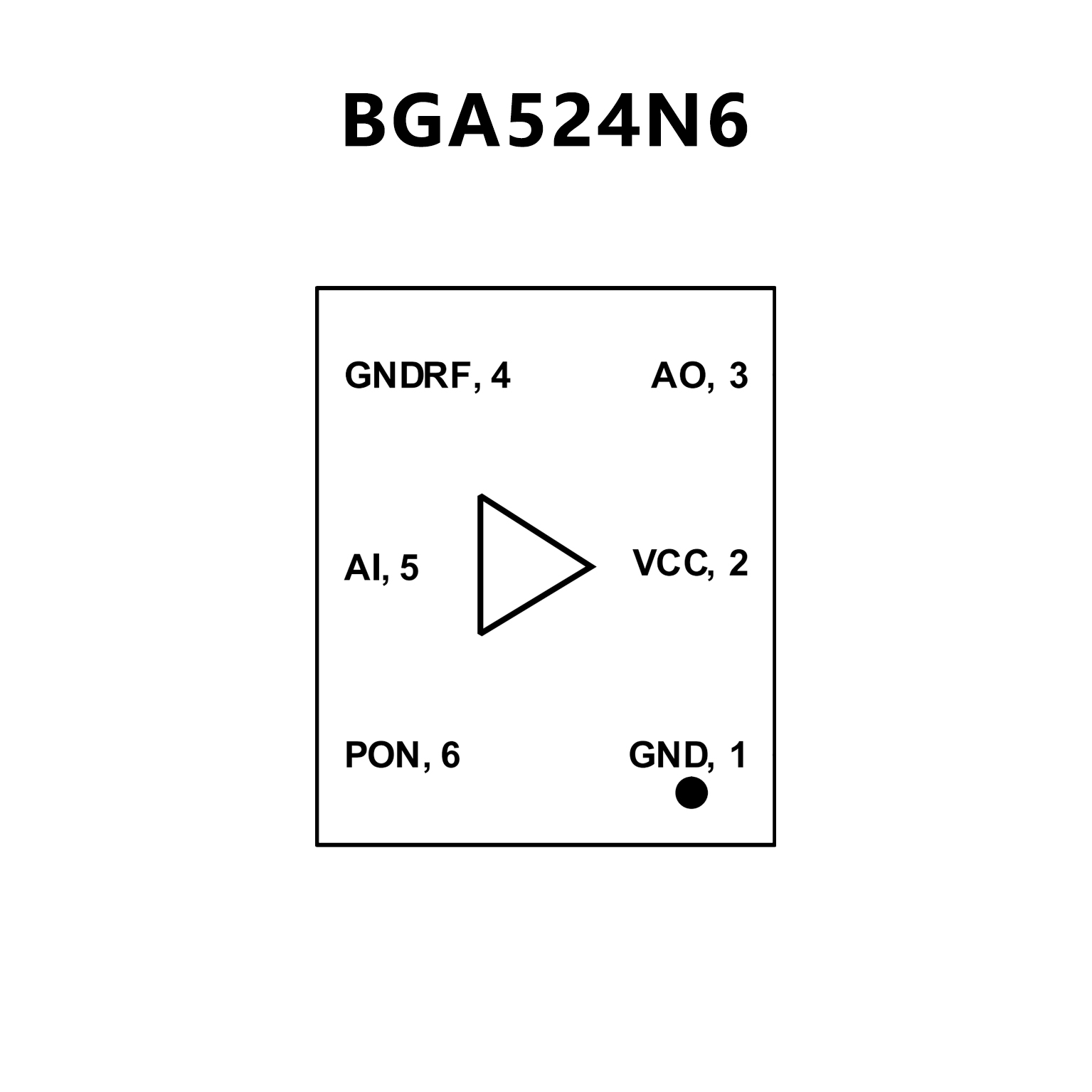

PIN CONFIGUTION
