Silicon Germanium Low Noise Amplifier for LTE,SGM13005H1 Replace BGA7H1N6.
SGM13005H1
SGM13005H1.pdf
SGM13005H1.pdfFEATURES
• Operating Frequency Range: 2300MHz to 2700MHz
• Low Noise Figure: 1.1dB at 2500MHz
• Low Operation Current: 6.1mA
• Supply Voltage Range: 1.5V to 3.6V
• Input and Output DC Decoupled
• Integrated Matching for the Output
• Available in Green UTDFN-1.1×0.7-6L Package

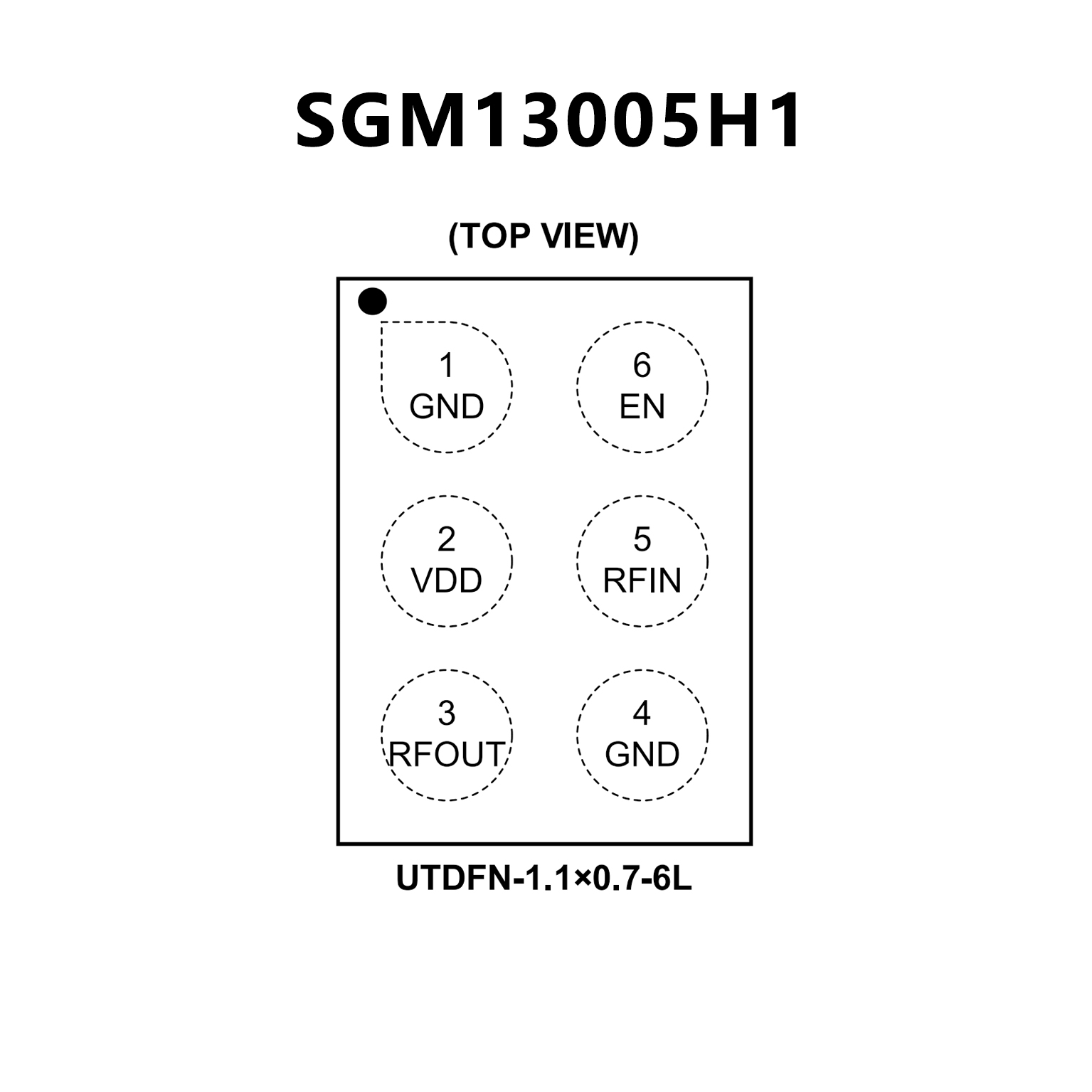

PIN CONFIGUTION
优势替代
FEATURES
• Insertion power gain: 12.5 dB
• Low noise figure: 0.60 dB
• Low current consumption: 4.7 mA
• Operating frequencies: 2300 - 2690 MHz
• Supply voltage: 1.5 V to 3.3 V
• Digital on/off switch (1V logic high level)
• Ultra small TSNP-6-2 leadless package
(footprint: 0.7 x 1.1 mm2)
• B7HF Silicon Germanium technology
• RF output internally matched to 50 Ω
• Only 1 external SMD component necessary
• 2kV HBM ESD protection (including AI-pin)
• Pb-free (RoHS compliant) package

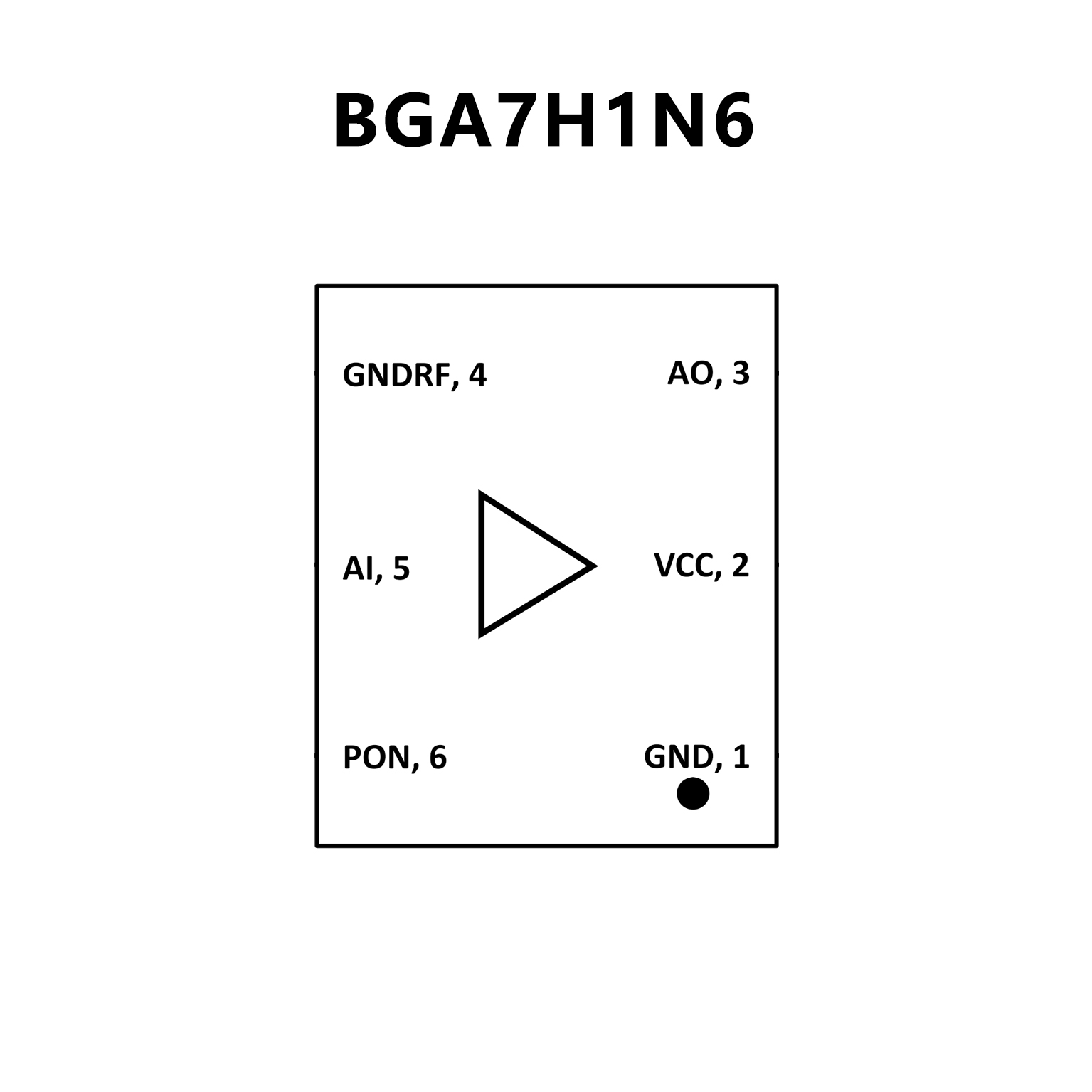

PIN CONFIGUTION
