Low Noise Amplifier for LTE High Band, SGM13005H1 Replace MXD8015H.
SGM13005H1
SGM13005H1.pdf
SGM13005H1.pdfFEATURES
• Operating Frequency Range: 2300MHz to 2700MHz
• Low Noise Figure: 1.1dB at 2500MHz
• Low Operation Current: 6.1mA
• Supply Voltage Range: 1.5V to 3.6V
• Input and Output DC Decoupled
• Integrated Matching for the Output
• Available in Green UTDFN-1.1×0.7-6L Package

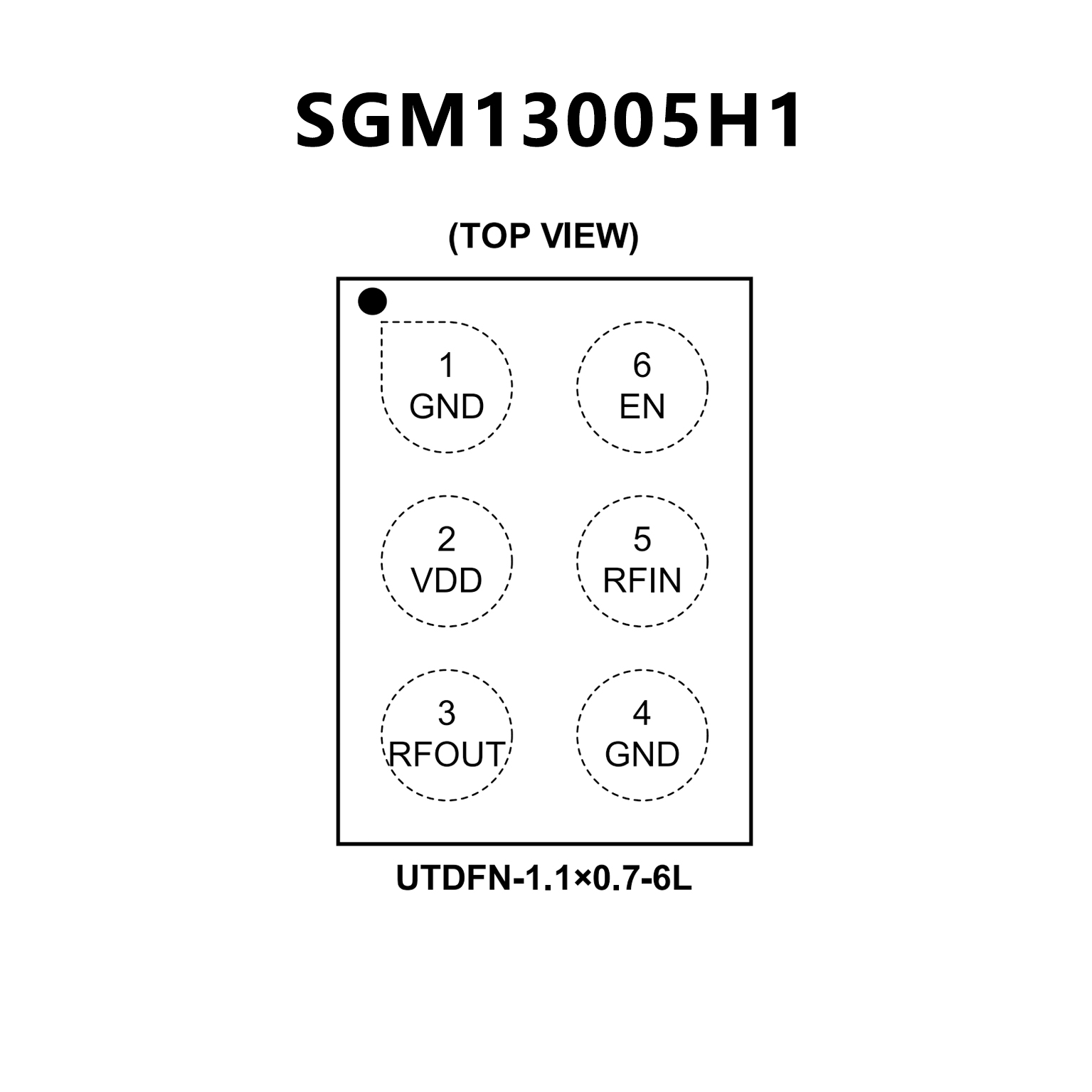

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 1.8 to 2.7 GHz
• High Gain
15.5dB gain at 1.8GHz to 2.2GHz
14.5dB gain at 2.3GHz to 2.7GHz
• Low noise figure
0.65dB noise figure at 1.8GHz to 2.2GHz
0.70dB noise figure at 2.3GHz to 2.7GHz
• Operation current 6mA
• Small, LGA (6-pin, 1.1mm x 0.7mm x 0.45mm)
package ，MSL1
• No DC blocking capacitors required.

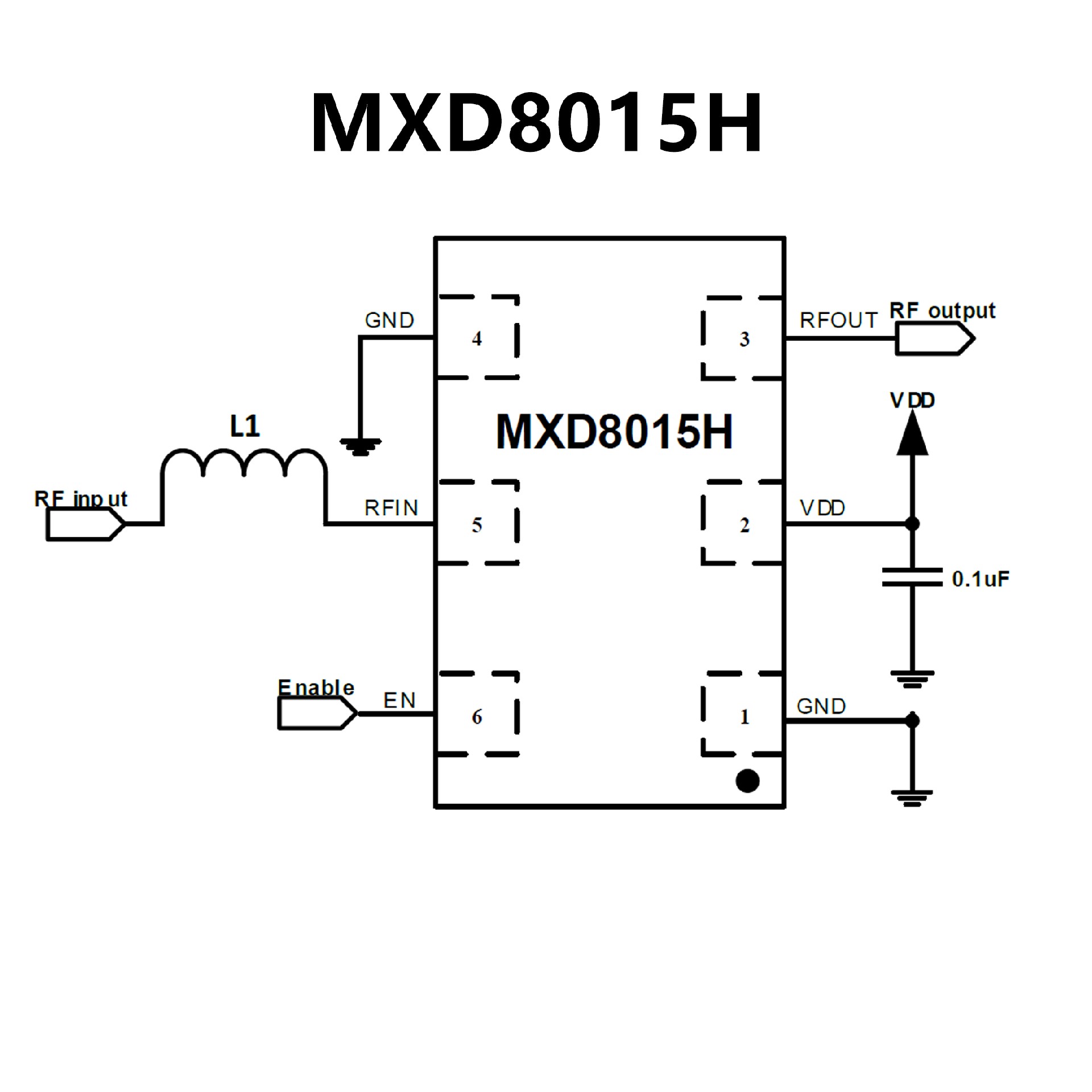

PIN CONFIGUTION
