Low Noise Amplifier with Bypass Switch for LTE Middle Band, SGM13005M4 Replace BGA7H1BN6.
SGM13005M4
SGM13005M4.pdf
SGM13005M4.pdfFEATURES
• Operating Frequency Range: 1800MHz to 2200MHz
• High Gain: 19.4dB at 2000MHz
• Low Noise Figure: 0.9dB at 2000MHz
• Low Operation Current: 11.8mA
• Bypass Mode Current: 1μA (MAX)
• Single Supply Voltage Range: 1.5V to 3.6V
• Input and Output DC Decoupled
• Integrated Matching for the Output
• Available in a Green UTDFN-1.1×0.7-6L Package

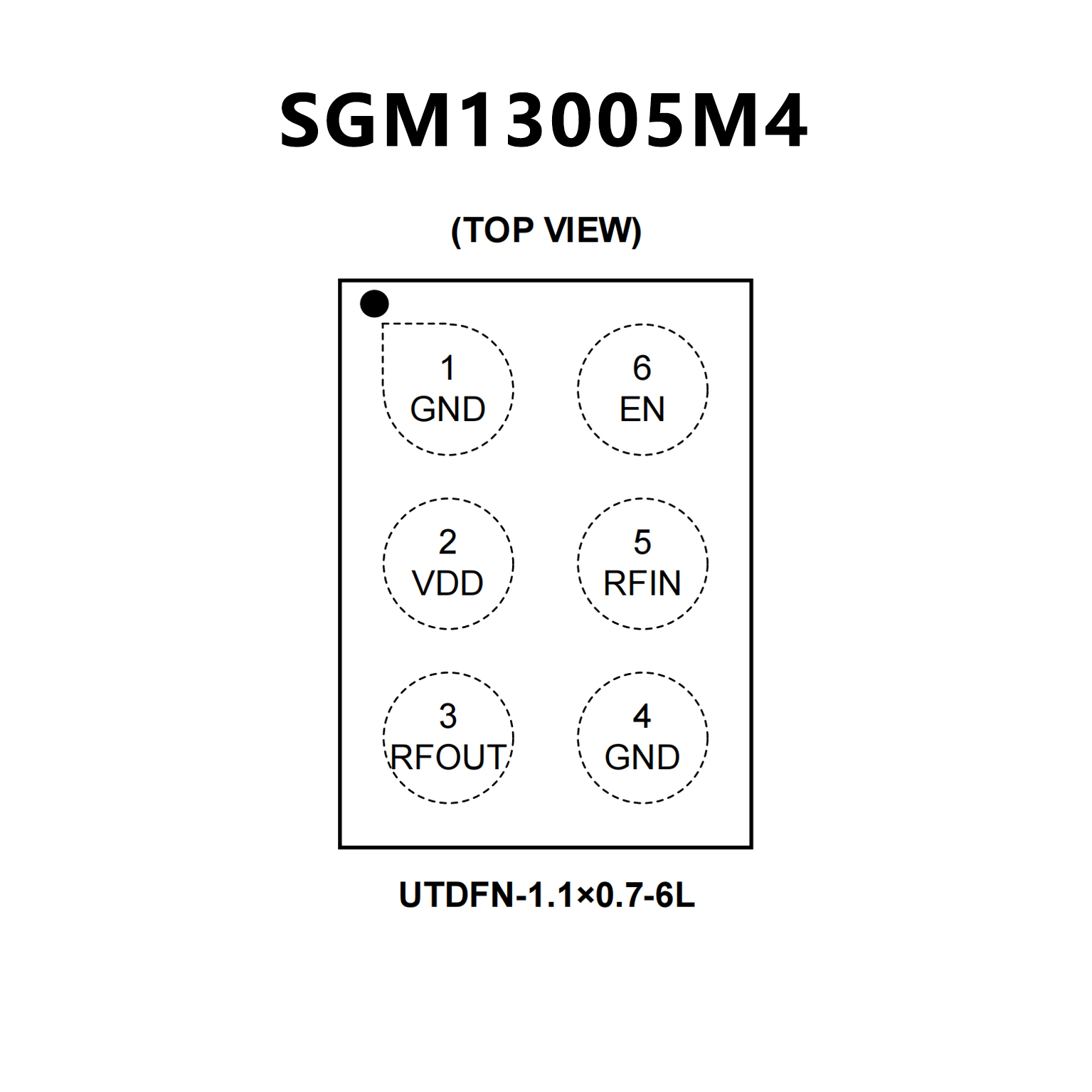

PIN CONFIGUTION
优势替代
FEATURES
• Insertion power gain: 12.3 dB
• Low noise figure: 0.85 dB
• Low current consumption: 4.3 mA
• Insertion Loss in bypass mode: -3.1 dB
• Operating frequencies: 1805 - 2690 MHz
• Two-state control: Bypass- and High gain-Mode
• Supply voltage: 1.5 V to 3.6 V
• Digital on/off switch (1V logic high level)
• Ultra small TSNP-6-2 leadless package
(footprint: 0.7 x 1.1 mm2)
• B7HF Silicon Germanium technology
• RF output internally matched to 50 Ω
• Only 1 external SMD component necessary
• Pb-free (RoHS compliant) package

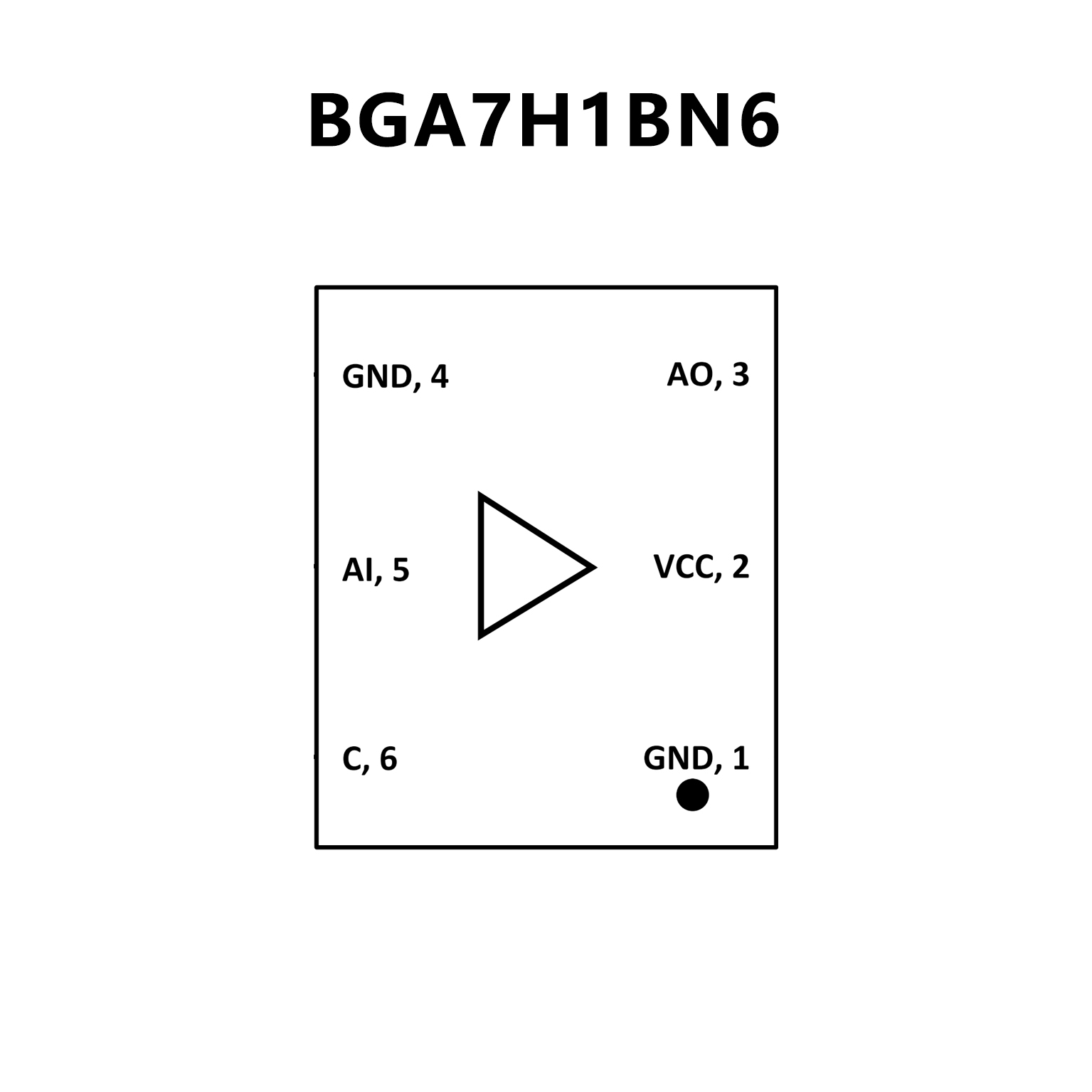

PIN CONFIGUTION
