Low Capacitance 1-Channel ESD Protection, SGM15CB1A4 P2P RClamp1521P.
SGM15CB1A4
SGM15CB1A4.pdf
SGM15CB1A4.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 4A
• 1.0pF (TYP) Channel Input Capacitance
• Low Profile Package: UTDFN-1×0.6-2L
• Working Voltage: 15V and Below

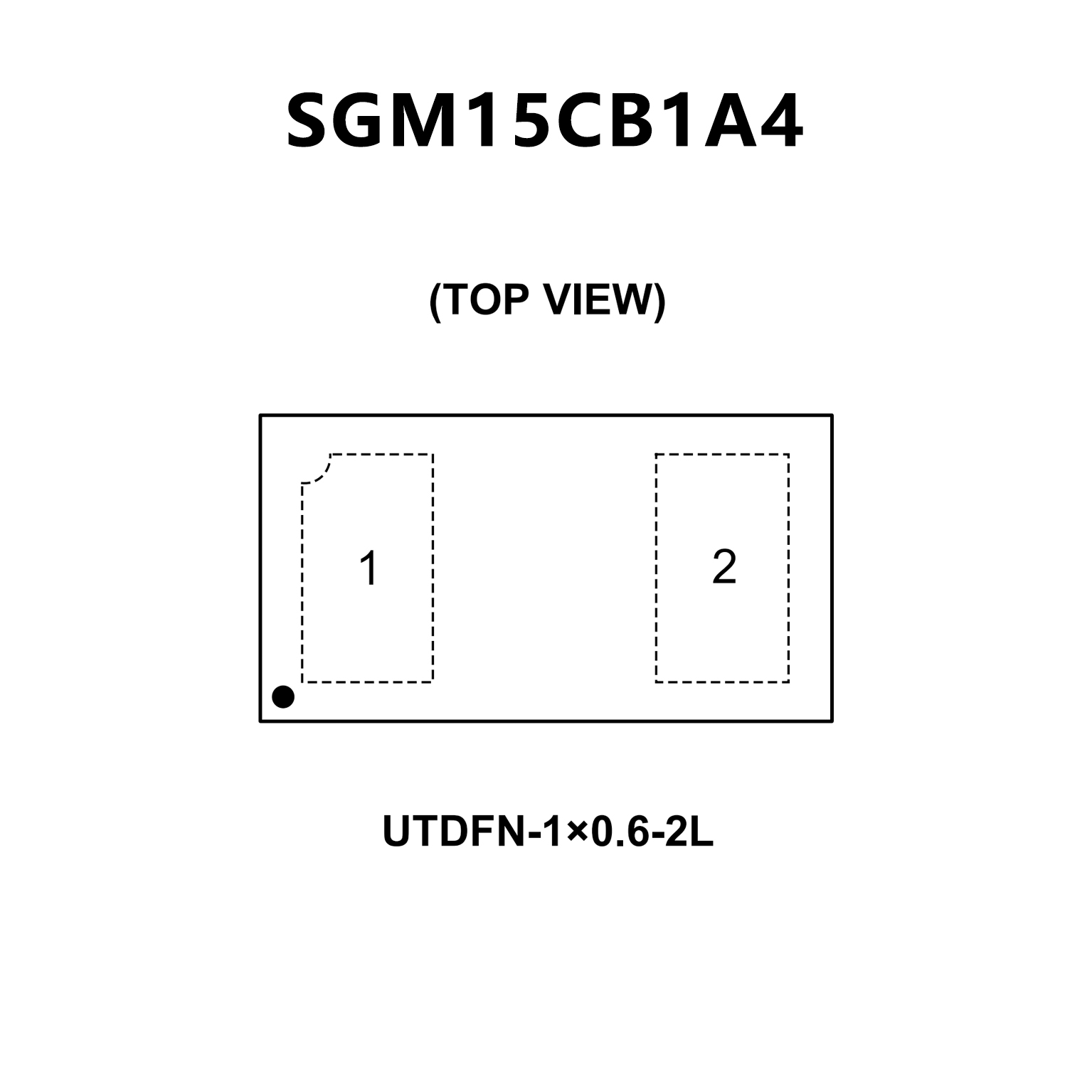

PIN CONFIGUTION
优势替代
FEATURES
• Transient protection for data lines to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
Cable Discharge Event (CDE)
• Ultra-small package (1.0 x 0.6 x 0.5mm)
• Protects one data or I/O line
• Low capacitance: 0.3pF typical
• Low clamping voltage
• Low operating voltage: 15V
• Solid-state silicon-avalanche technology

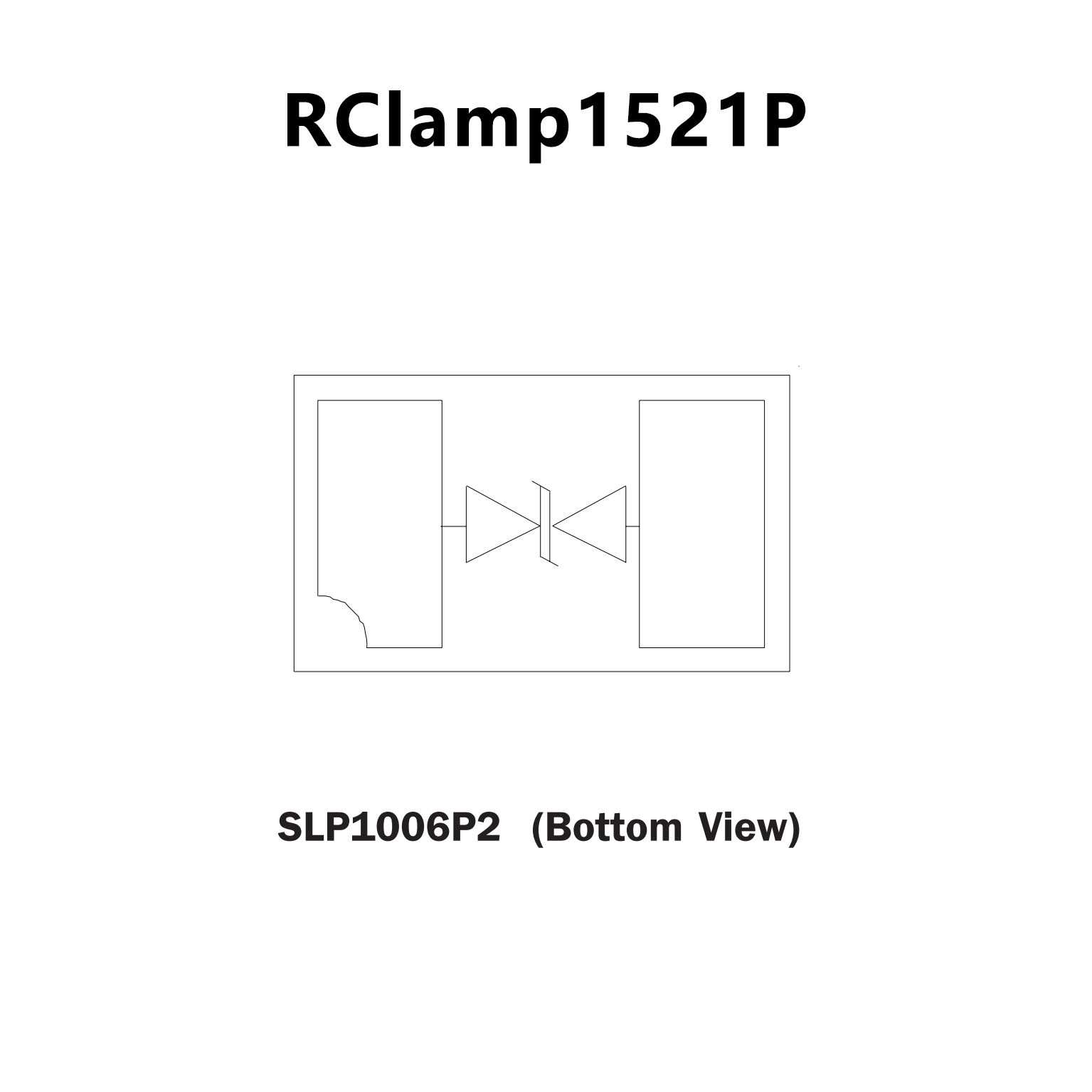

PIN CONFIGUTION
