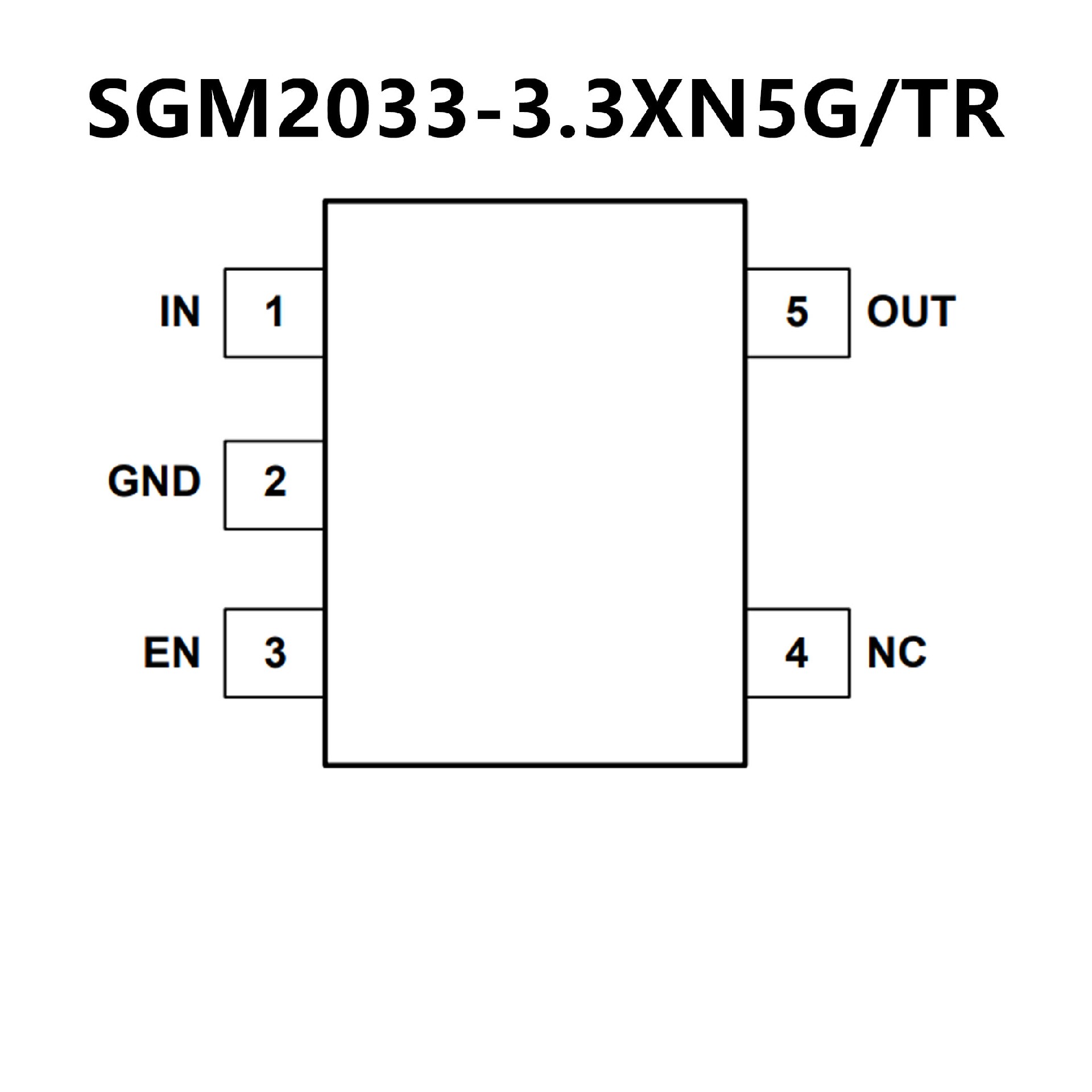

SGM2033-3.3.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Short to GND Protection
• Output Current Limit: 500mA (TYP)
• Over-Temperature Protection: +165℃
• Fast Load Transient Response
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Stable with 1μF Small Case Size Ceramic
Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages

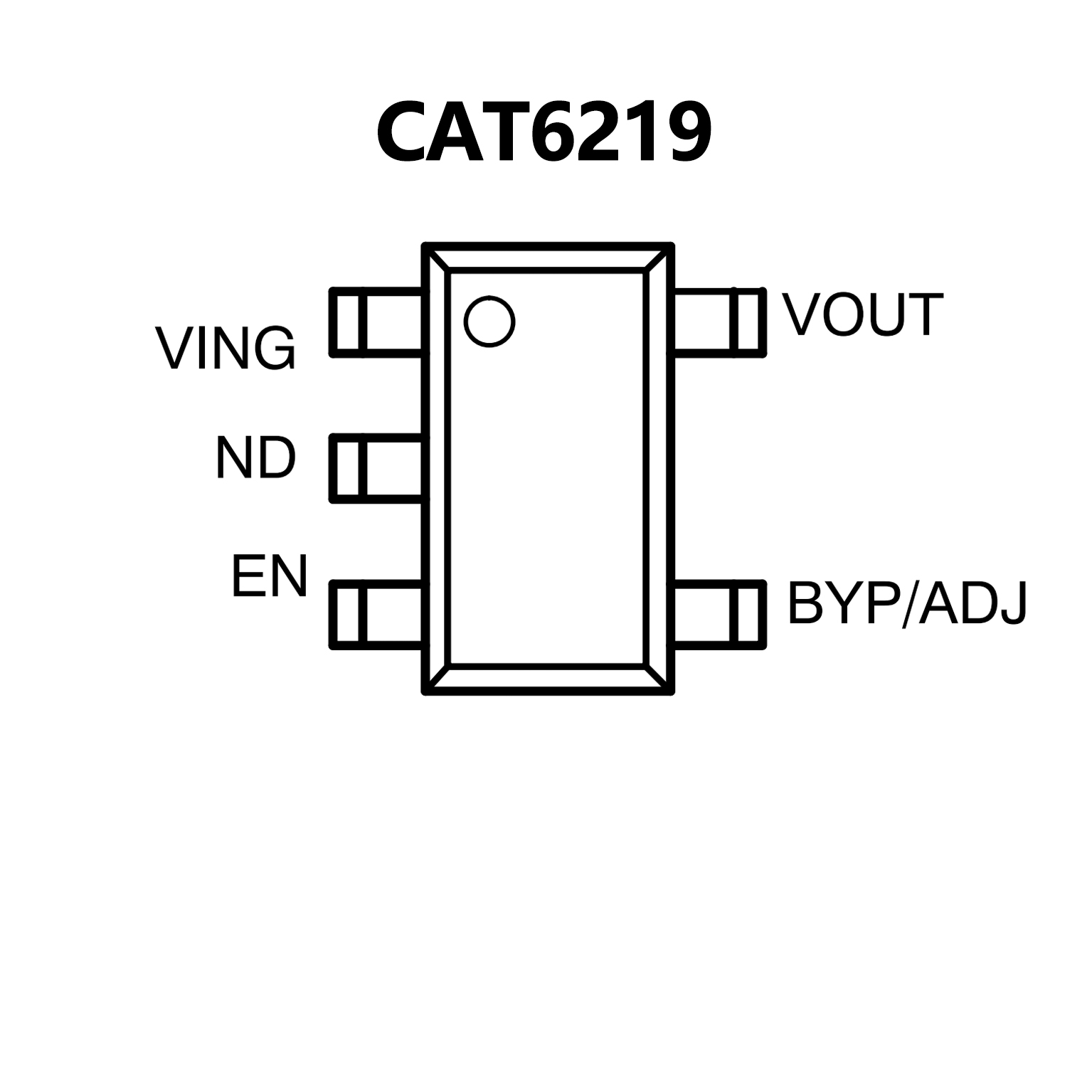

• Guaranteed 500 mA Peak Output Current
• Low Dropout Voltage of 300 mV Typical at 500 mA
• Stable with Ceramic Output Capacitor
• External 10 nF Bypass Capacitor for Low Noise
• Quick−start Feature
• Under Voltage Lockout
• No−load Ground Current of 55 µA Typical
• Full−load Ground Current of 85µA Typical
• ±1.0% Initial Accuracy (VOUT ≥ 2.0 V)
• ±2.0% Accuracy Over Temperature (VOUT ≥ 2.0 V)
• “Zero” Current Shutdown Mode
• Fold−back Current Limit
• Thermal Protection
• 5−lead TSOT−23, 6−pad WDFN and TDFN Packages
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS
Compliant
