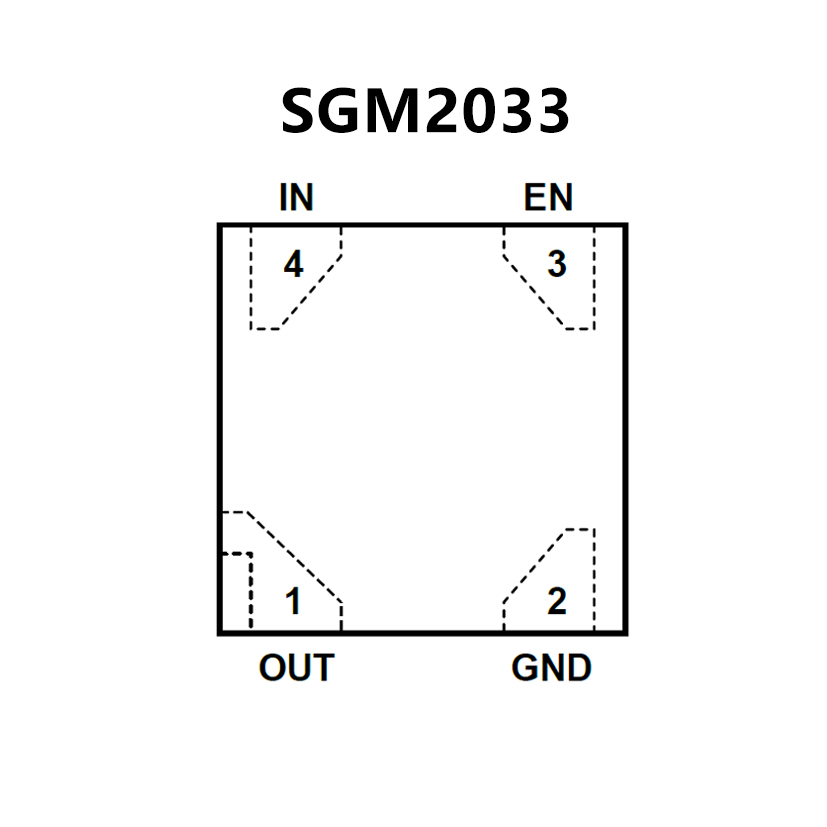

SGM2033.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Short to GND Protection
• Output Current Limit: 500mA (TYP)
• Over-Temperature Protection: +165℃
• Fast Load Transient Response
Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Stable with 1μF Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages
• Operating Input Voltage Range: 1.9 V to 5.5 V
• Available in Fixed Voltage Option: 1.8 V to 5.14 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 18 A
• Standby Current: Typ. 0.1 A
• Very Low Dropout: 150 mV at 450 mA
• Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 10 VRMS
• Stable with a 1 F Small Case Size Ceramic Capacitors

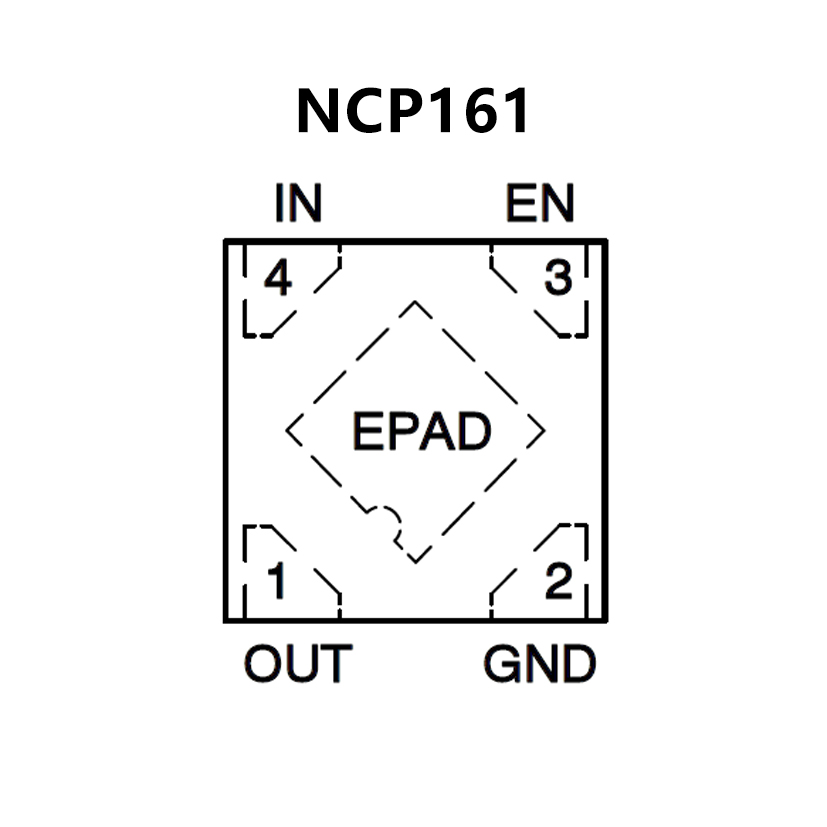

• Available in −WLCSP4 0.65 mm x 0.65 mm x 0.4 mm
WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
XDFN4 1 mm x 1 mm x 0.4 mm
SOT23−5 2.9 mm x 2.8 mm x 1.2 mm
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
