SGM2033.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Short to GND Protection
• Output Current Limit: 500mA (TYP)
• Over-Temperature Protection: +165℃
• Fast Load Transient Response
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Stable with 1μF Small Case Size Ceramic
Capacitors
• -40℃ to +125℃ Operating Temperature Range

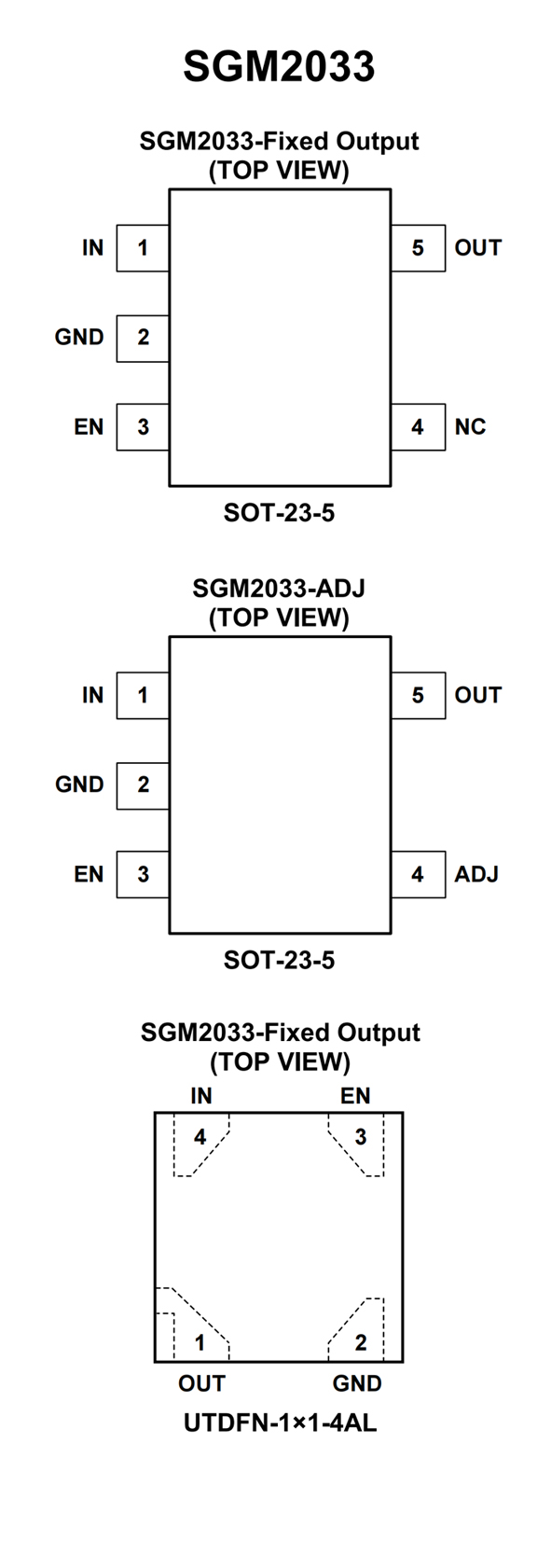

• Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
• Operating Input Voltage Range: 2.2 V to 5.5 V
• Available in Fixed Voltage Option: 1.2 V to 5.3 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 12μA
• Standby Current: Typ. 0.1μA
• Very Low Dropout: 80 mV at 250 mA @ 3.3 V
• Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 6.5 VRMS
• Stable with a 1 F Small Case Size Ceramic
Capacitors

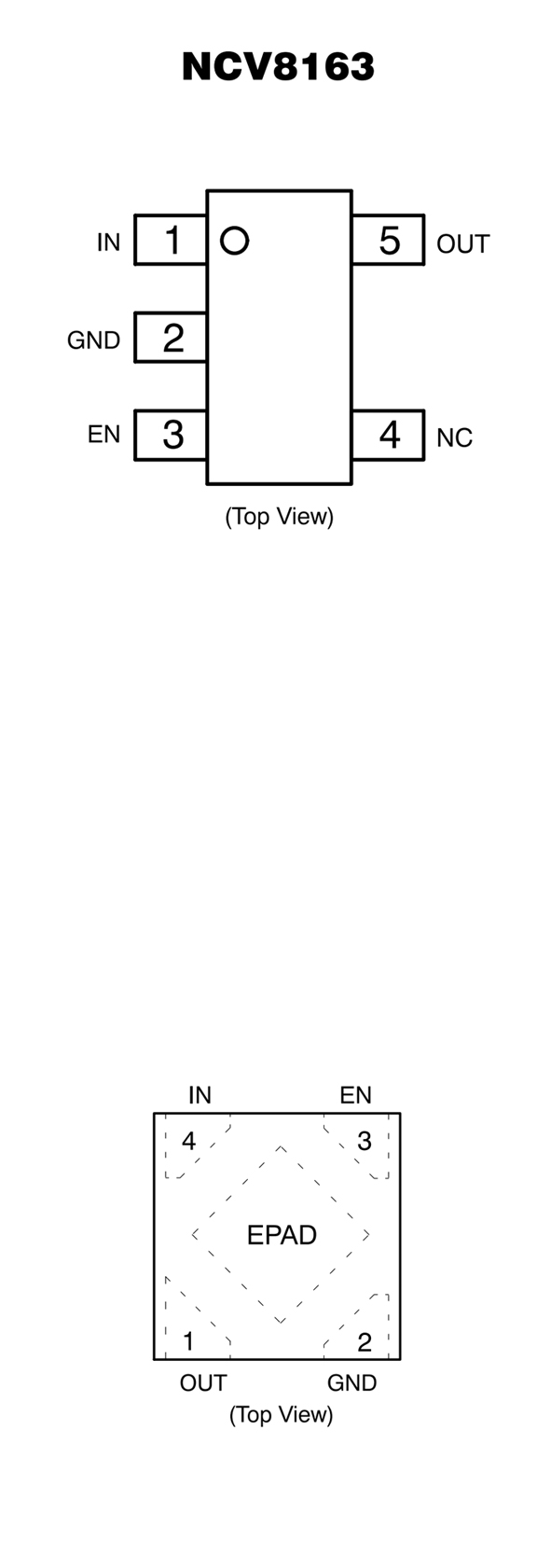

• Available in XDFN4 1 mm x 1 mm x 0.4 mm and
TSOP−5 Packages
• NCV Prefix for Automotive and Other Applications
Requiring
Unique Site and Control Change Requirements;
Grade 1 AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free
and are RoHS Compliant
