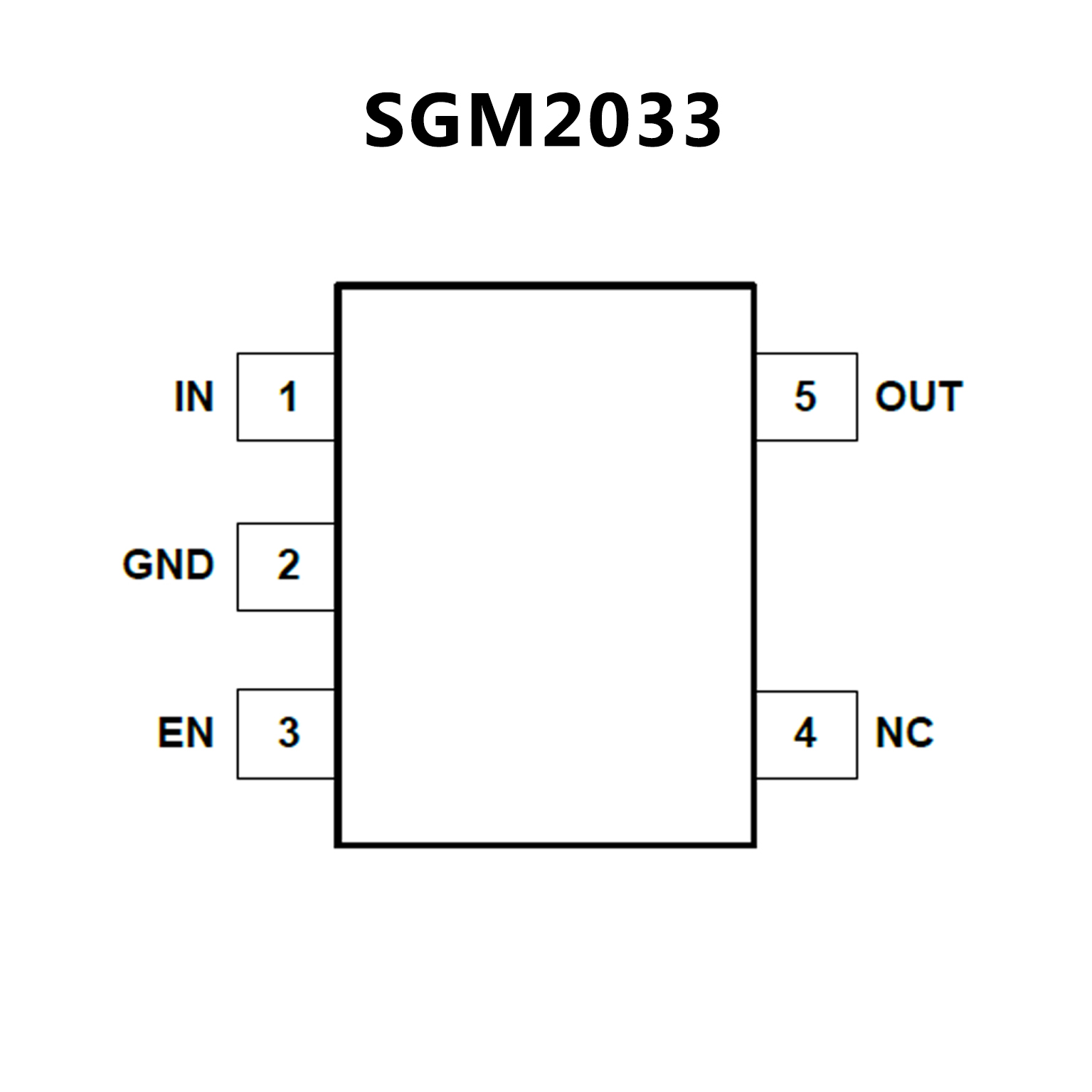

SGM2033.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Short to GND Protection
• Output Current Limit: 500mA (TYP)
• Over-Temperature Protection: +165℃
• Fast Load Transient Response
Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• Stable with 1μF Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages

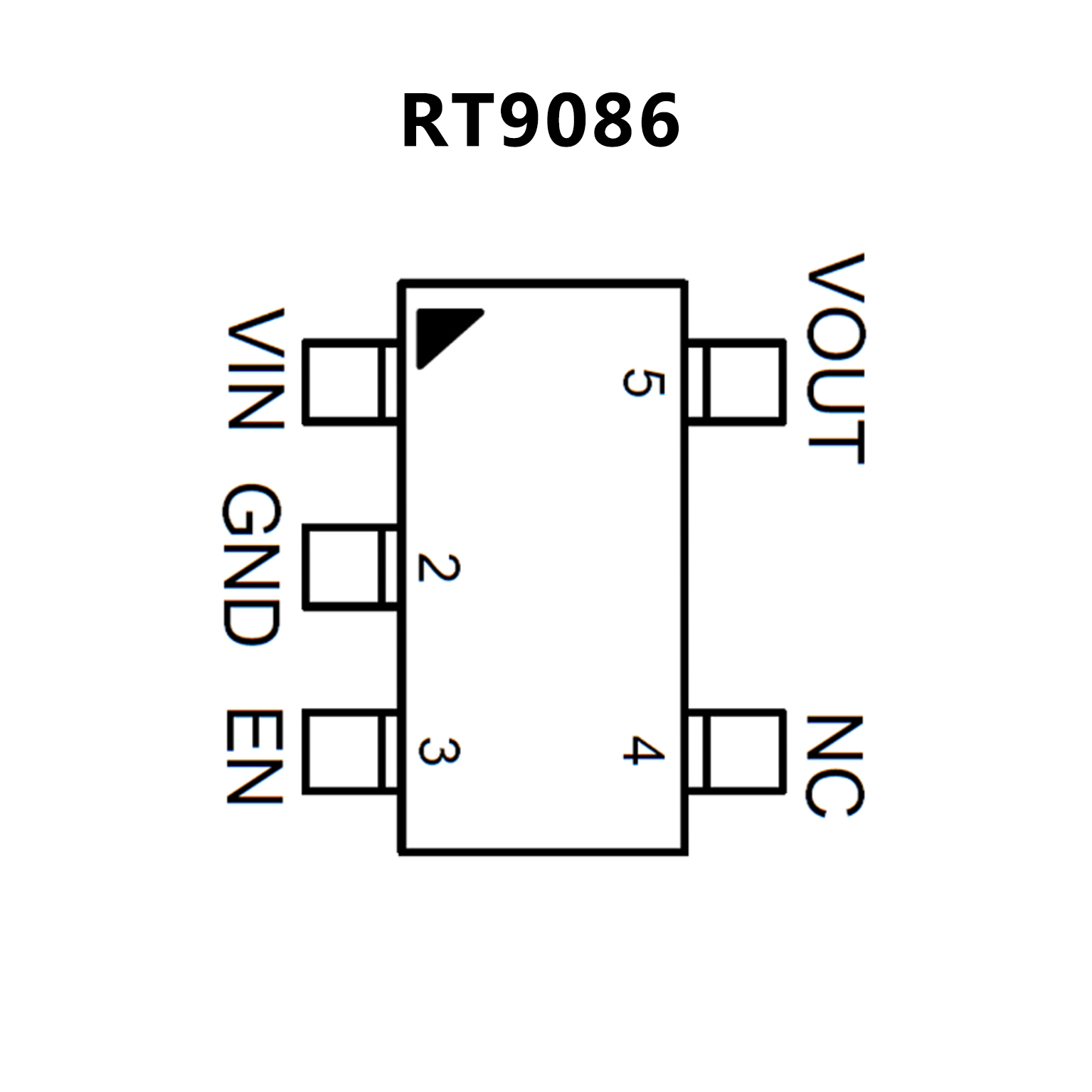

• Input Voltage Range : 2.2V to 5.5V
• Adjustable Output Voltage : 1.2V to 4.5V
• PSRR85dB @ 1kHz (20mA)
• 80dB @ 10kHz (20mA)
• Output Current : 250mA
• Very Low Dropout : 120mV
• Very Low IQ (Enabled) : 16A
• Virtually Zero IQ (Disable) : < 1A
• Very Low IG (Enabled) : 16A
• Start-up Time : 80s
• −40°C to 125°C Operating Junction Temperature Range
• Excellent Noise Immunity
Fast Response Overload and Line Transient
• Stable with a 1F Input and Output Ceramic Capacitors
• Accurate Output Voltage 2% Overload,
Line, Process, and Temperature Variations
• Over-Current Protection
• Over-Temperature Protection
