SGM2033-3.3XUDH4G.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Current Limit: 500mA (TYP)
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• High PSRR: 94dB (TYP) at 1kHz
• Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
• Output Short-Circuit Protection
• Thermal Shutdown Protection
• Fast Load Transient Response
• Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range

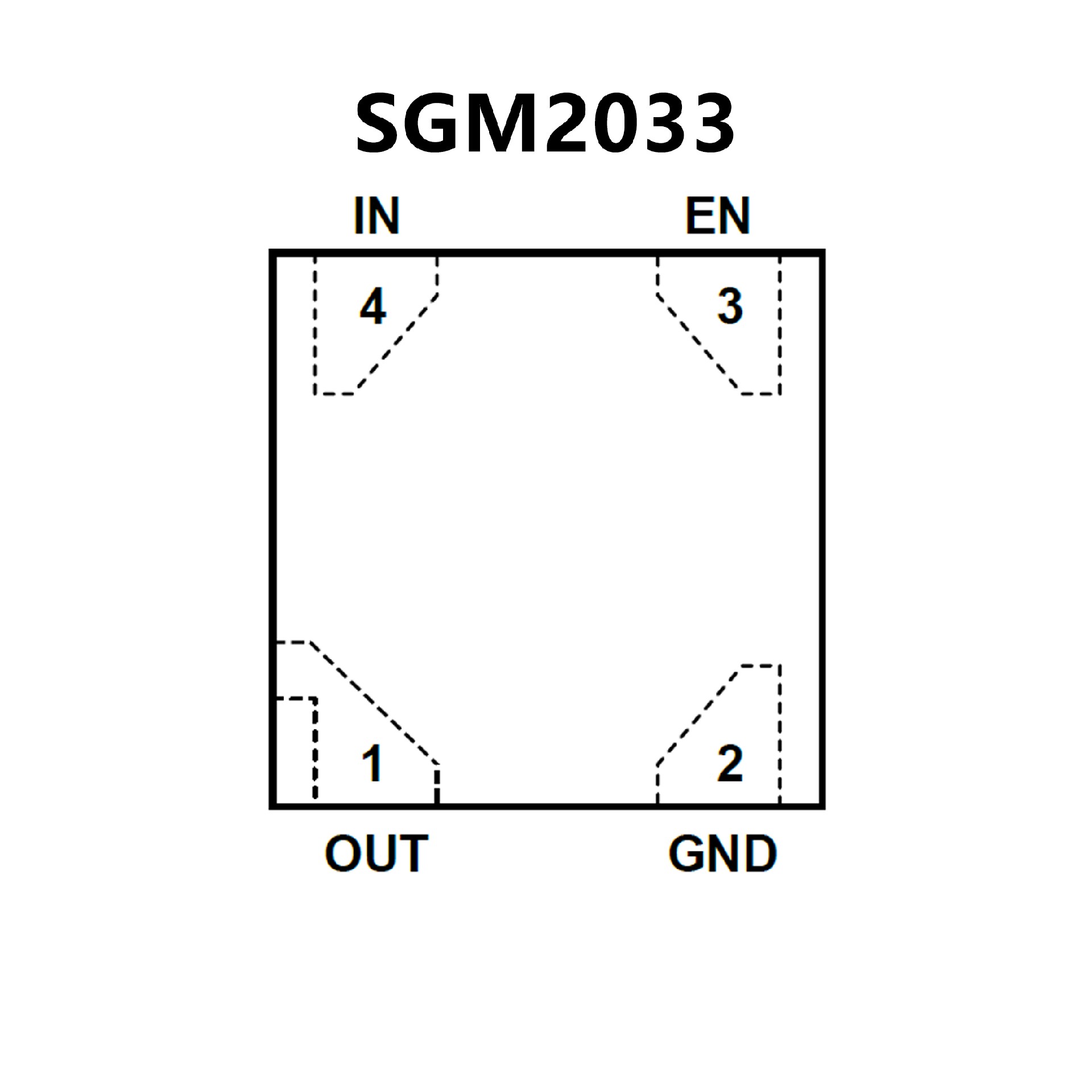

Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
• 0.5% Typical Accuracy
• Supports 200-mA Output
• Low IQ: 25 μA
• Fixed-Output Voltage Combinations Possible from
0.85 V to 5.0 V(1)
• High PSRR:
70 dB at 100 Hz
50 dB at 1 MHz
• Stable With Effective Capacitance of 0.1 μF(2)
• Thermal Shutdown and Overcurrent Protection

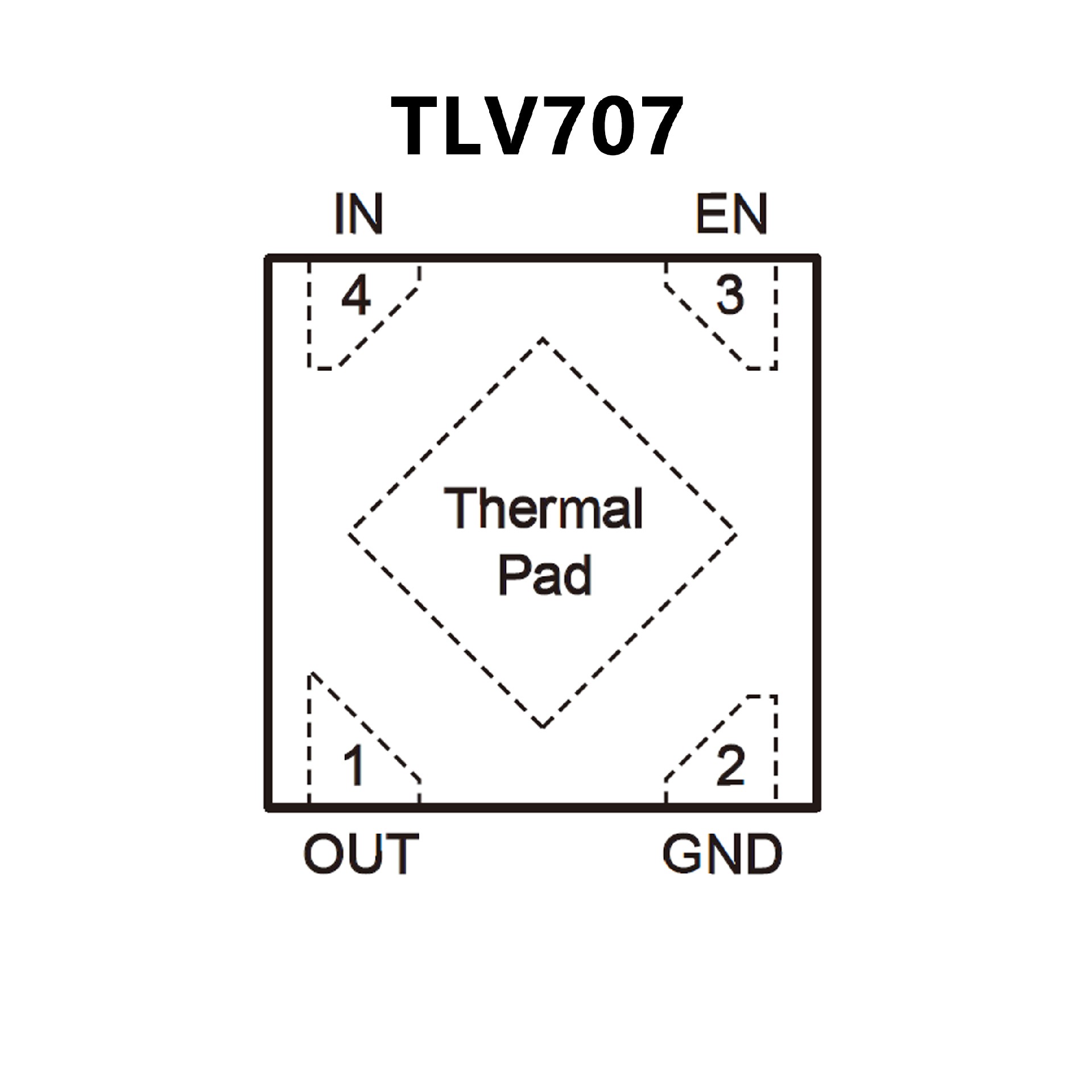

• Package: 1-mm × 1-mm DQN (X2SON)
• For all available voltage options, see the package option
addendum at the end of the data sheet.
• See the Mechanical, Packaging, and Orderable
Information section for more details.
