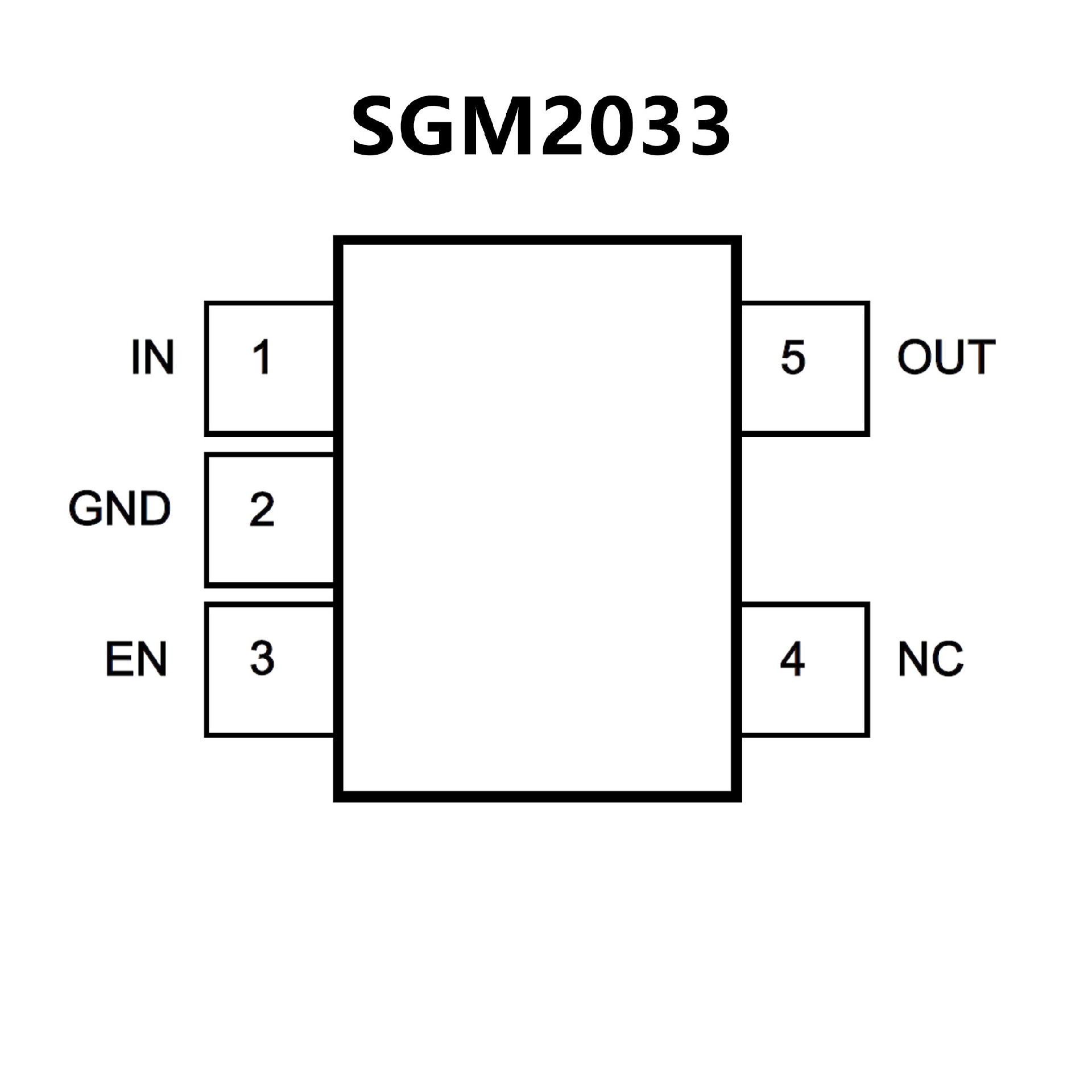

SGM2033-2.5XN5G.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Current Limit: 500mA (TYP)
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• High PSRR: 94dB (TYP) at 1kHz
• Low Dropout Voltage:
175mV (TYP) at 250mA when
VOUT = 1.8V (SOT-23-5)
145mV (TYP) at 250mA when
VOUT = 1.8V (UTDFN-1×1-4AL)
• Output Short-Circuit Protection
• Thermal Shutdown Protection
• Fast Load Transient Response
• Stable with 1μF Small Case Size Ceramic Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and
UTDFN-1×1-4AL Packages

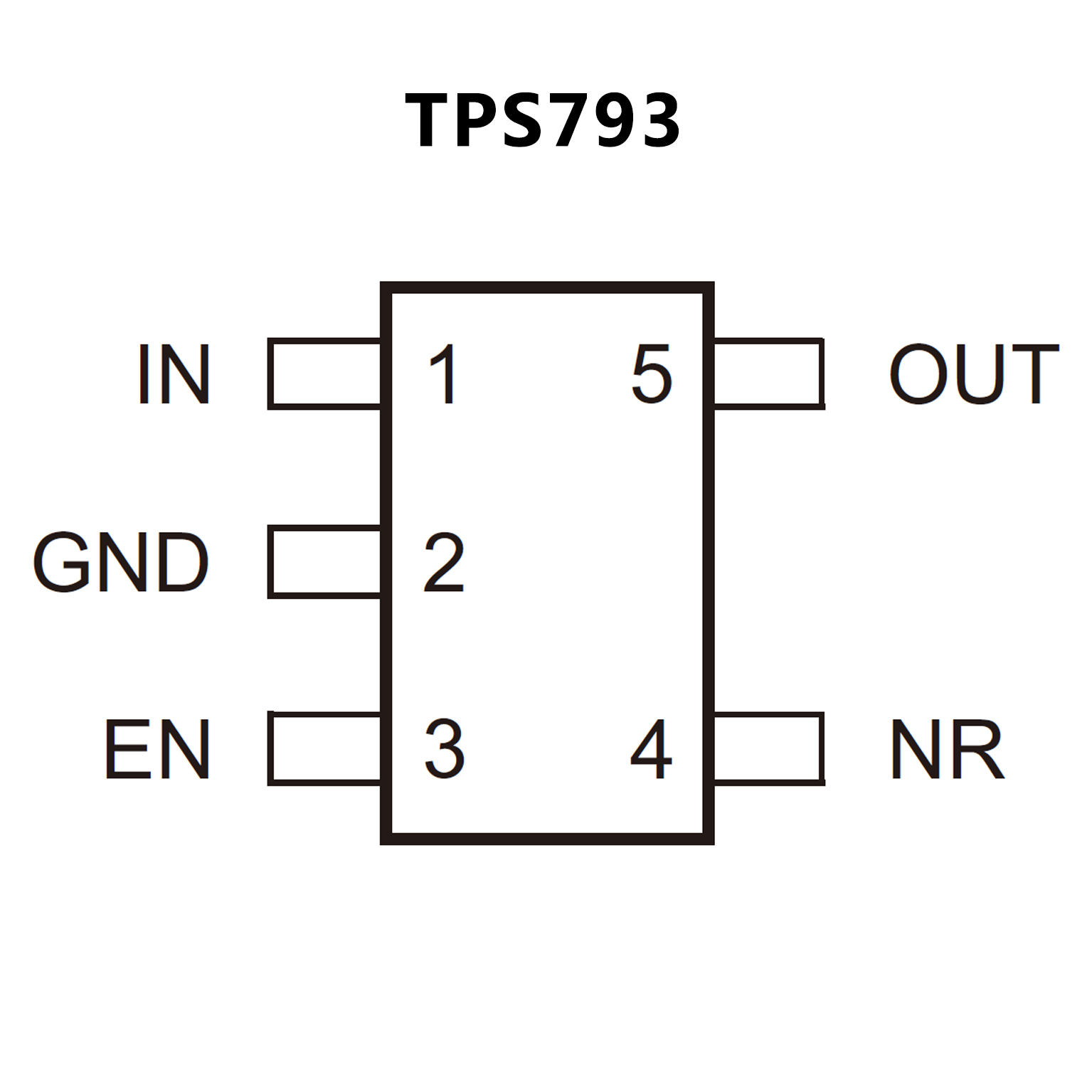

• 200-mA RF Low-Dropout Regulator With Enable
• Available in Fixed-Voltage Versions from 1.8 V to 4.75 V and Adjustable (1.22 V to 5.5 V)
• High PSRR (70 dB at 10 kHz)
• Low Noise (32 μVRMS, TPS79328)
• Fast Start-Up Time (50 μs)
• Stable With a 2.2-μF Ceramic Capacitor
• Excellent Load and Line Transient Response
• Very Low Dropout Voltage (112 mV at 200 mA, TPS79330)
• 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YZQ) Packages
