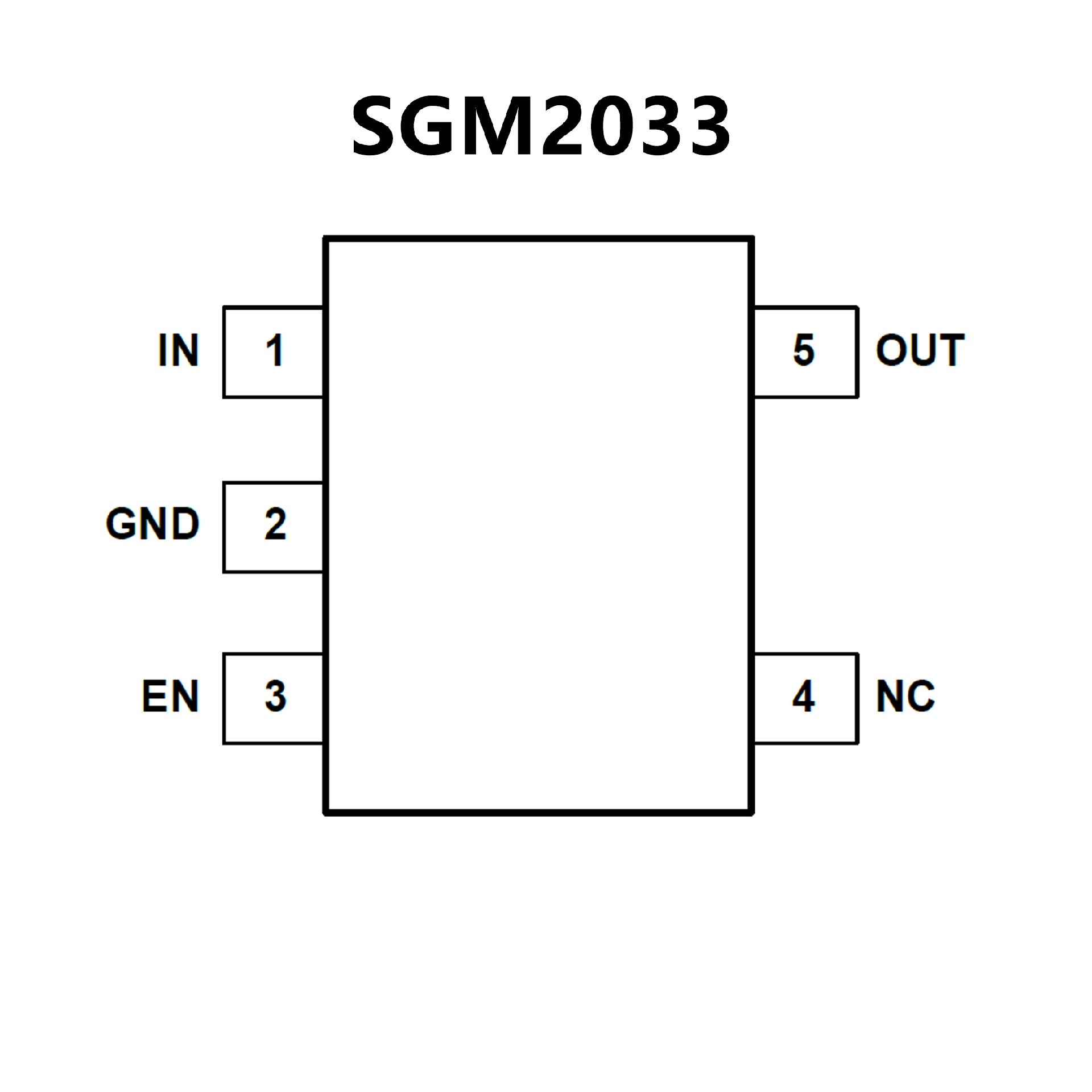

SGM2033-3.3.pdf• Operating Input Voltage Range: 1.8V to 5.5V
• Fixed Output Voltage Range: 1.2V to 5.0V
• Adjustable Output Voltage Range: 1.2V to 5.0V
• Output Current Limit: 500mA (TYP)
• Ultra-Low Quiescent Current: 13.5μA (TYP)
• Shutdown Current: 0.1μA (TYP)
• High PSRR: 94dB (TYP) at 1kHz
• Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
• Output Short-Circuit Protection
• Thermal Shutdown Protection
• Fast Load Transient Response
• Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages

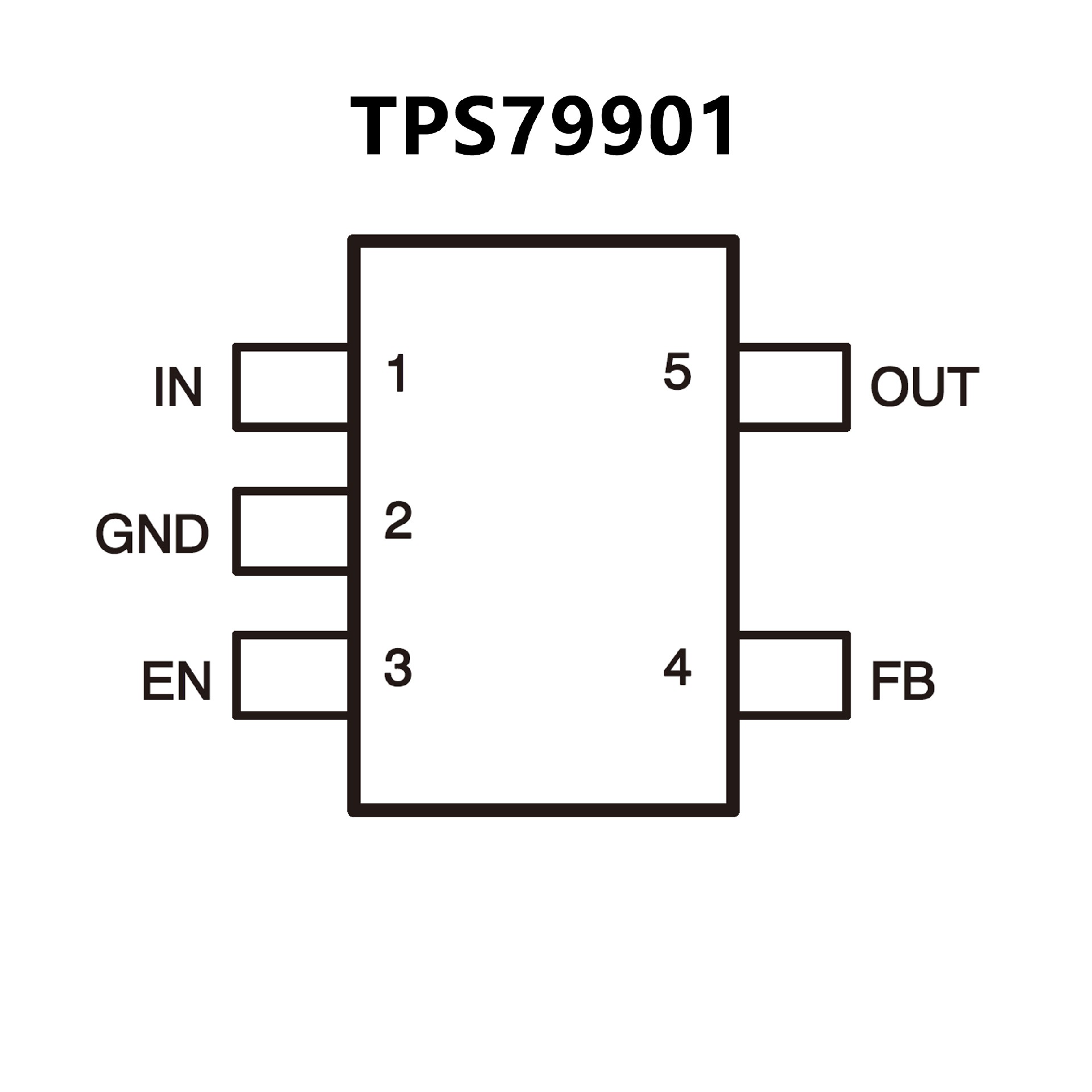

• 200mA Low Dropout Regulator with EN
• Low IQ: 40mA
• Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2V to 4.5V Using
Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20V to 6.5V
• High PSRR: 66dB at 1kHz
• Ultra-low Noise: 29.5mVRMS
• Fast Start-Up Time: 45ms
• Stable with a Low-ESR, 2.0mF
Typical Output Capacitance
• Excellent Load/Line Transient Response
• 2% Overall Accuracy (Load/Line/Temp)
• Very Low Dropout: 100mV
• ThinSOT-23, WCSP, and
2mm × 2mm SON-6 Packages
