• Operating Input Voltage Range: 1.8V to 5.5V

• Fixed Output Voltage Range: 1.2V to 5.0V

• Adjustable Output Voltage Range: 1.2V to 5.0V

• Output Current Limit: 500mA (TYP)

• Ultra-Low Quiescent Current: 13.5μA (TYP)

• Shutdown Current: 0.1μA (TYP)

• High PSRR: 94dB (TYP) at 1kHz

• Low Dropout Voltage:

  175mV (TYP) at 250mA when V_OUT = 1.8V

  (SOT-23-5)

  145mV (TYP) at 250mA when V_OUT = 1.8V

  (UTDFN-1×1-4AL)

• Output Short-Circuit Protection

• Thermal Shutdown Protection

• Fast Load Transient Response

• Stable with 1μF Small Case Size Ceramic

  Capacitors

  -40℃ to +125℃ Operating Temperature Range

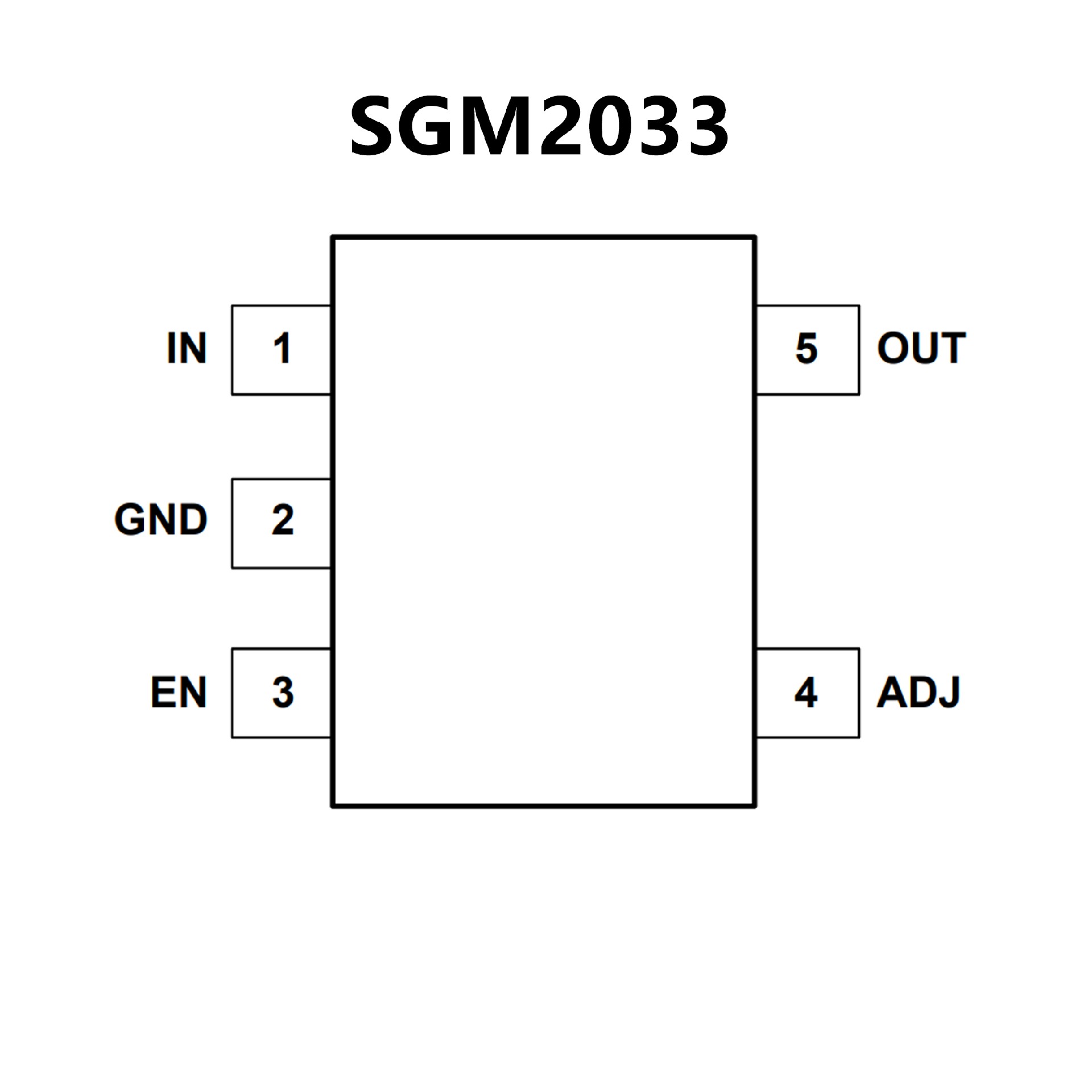

  Available in Green SOT-23-5 and UTDFN-1×1-4AL

  Packages
