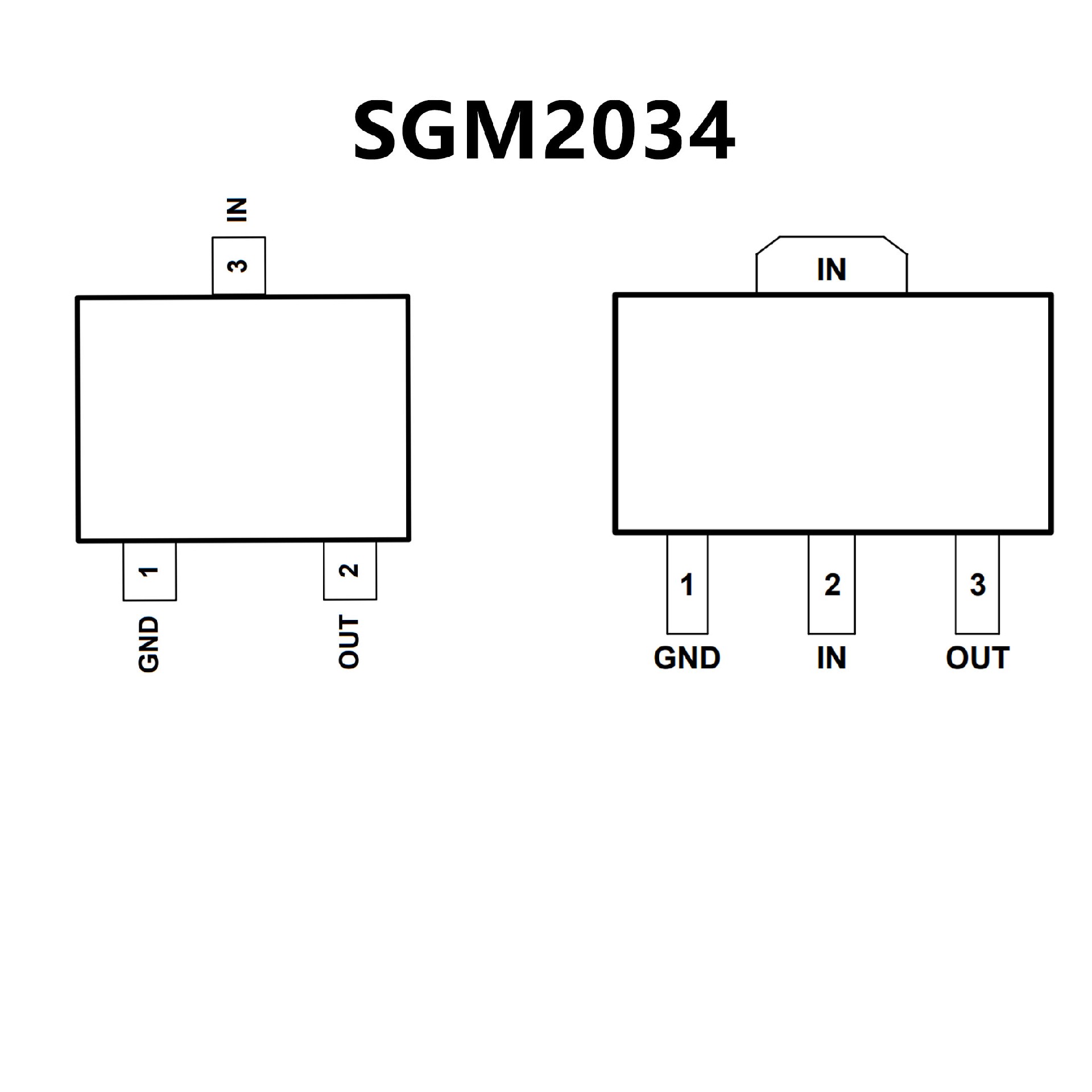

SGM2034.pdf• Operating Input Voltage Range: 1.7V to 7.5V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 2.8V,
3.0V, 3.3V, 3.6V, 3.8V, 4.0V, 4.5V and 5.0V
• 250mA Output Current
• High Output Voltage Accuracy: ±1.2% at +25℃
• Ultra-Low Quiescent Current: 1μA (TYP)
• Low Dropout Voltage: 70mV (TYP) at 100mA
• Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
• Current Limiting and Thermal Protection
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-3 and SOT-89-3 Packages

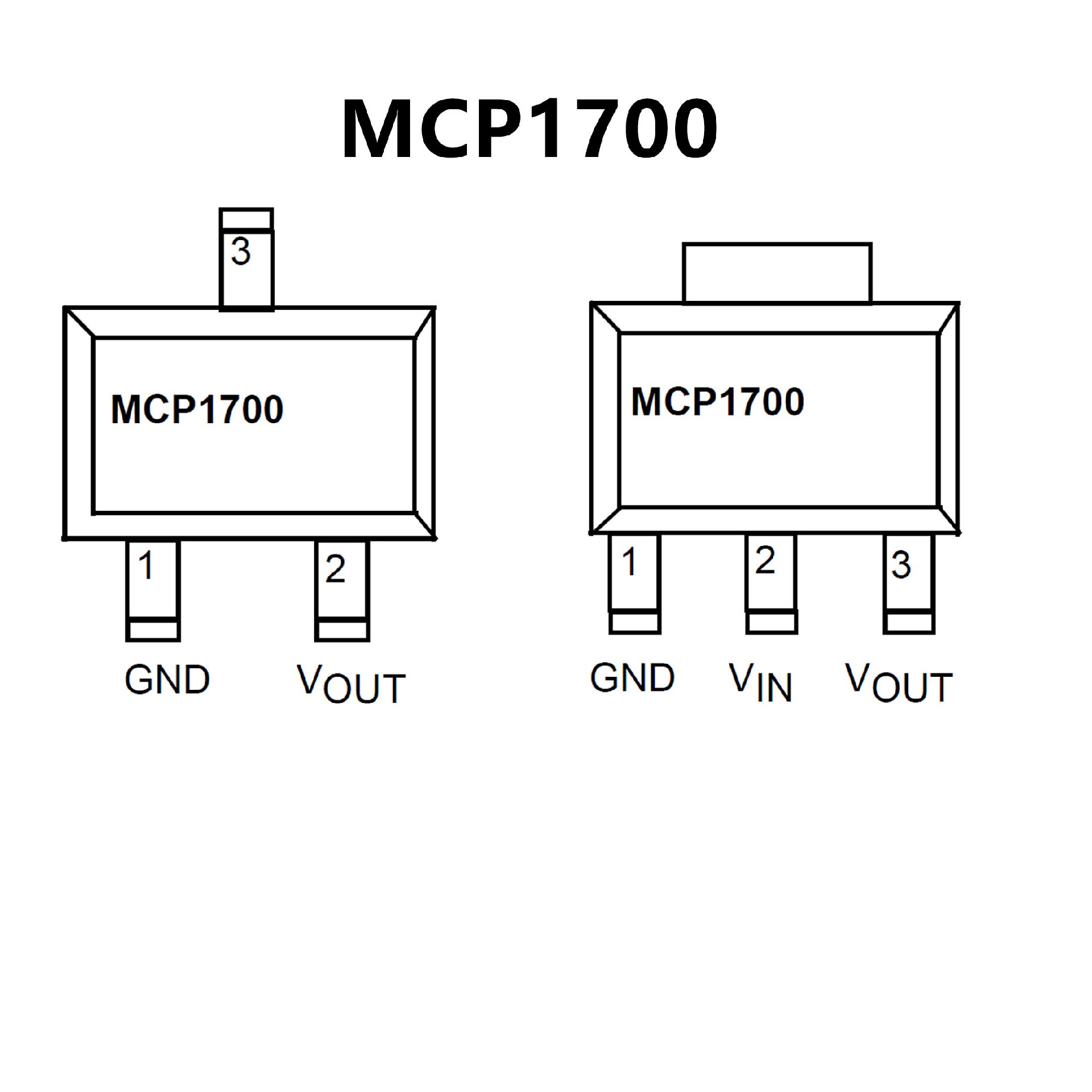

• 1.6 µA Typical Quiescent Current
• Input Operating Voltage Range: 2.3V to 6.0V
• Output Voltage Range: 1.2V to 5.0V
• 250 mA Output Current for Output
Voltages ＜2.5V
• 200 mA Output Current for Output
Voltages < 2.5V
• Low Dropout (LDO) Voltage
178 mV Typical @ 250 mA for VOUT =2.8V
• 0.4% Typical Output Voltage Tolerance
• Standard Output Voltage Options:
1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
• Stable with 1.0 µF Ceramic Output Capacitor
• Short Circuit Protection
• Overtemperature Protection
