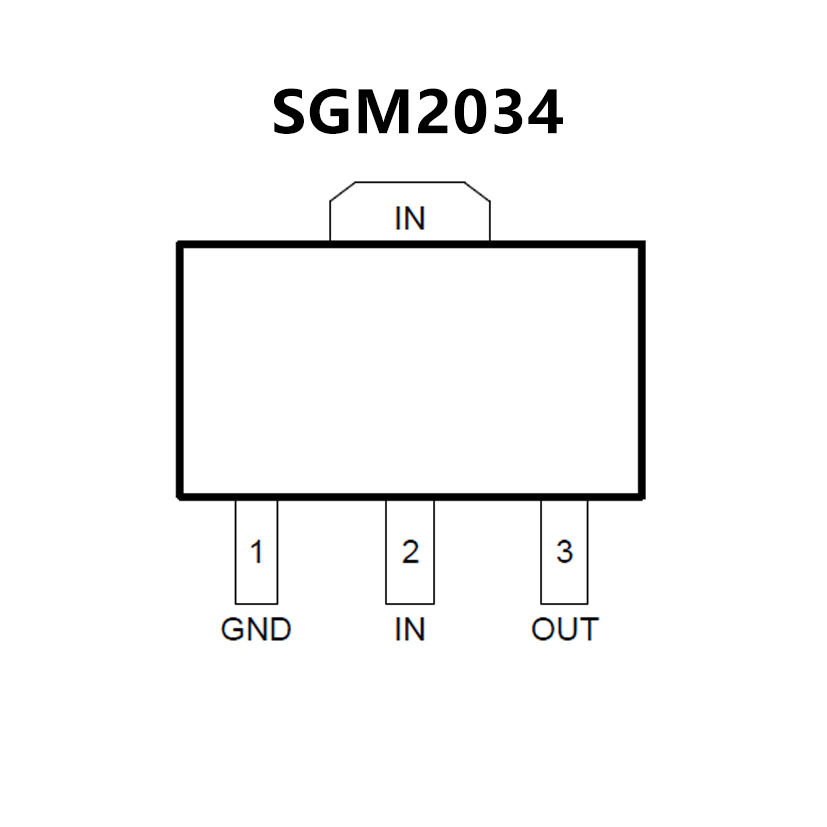

SGM2034.pdf• Output Voltage: 1.2V to 5.2V with 0.05V per Step
• Input Voltage: 1.7V to 7.5V
• High Output Voltage Accuracy: ±1.2%
• Low Dropout Voltage: 75mV (TYP) at 100mA
• Ultra Low Current Consumption: 1μA (TYP)
• 250mA Nominal Output Current
• Output Capacitor: Ceramic Capacitors of 0.1μF or
Higher can be Used
• Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
• Built-In Over-Temperature Protection
• Built-In Over-Current Protection Circuit
• -40℃ to +85℃ Operating Temperature Range
Available in Green SOT-23-3 and SOT-89-3 Packages

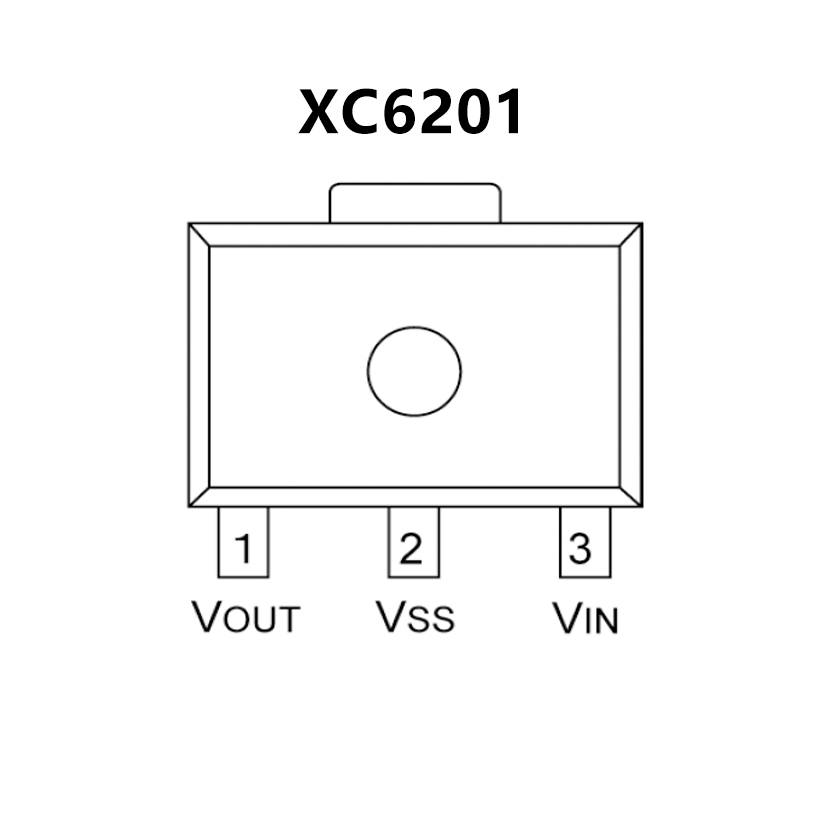

• Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
• Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V 1.3V ~ 6.0V (0.1V increments) : ±1% (VOUT(T)>2.0V)
• Low Power Consumption
±2% : 2.0μA (TYP.)
• Operating Ambient Temperature: -40℃ ~ 85℃ : SOT-25,
• Packages,SOT-89 USP-6B
• Environmentally Friendly : EU RoHS Compliant, Pb Free
Tantalum or Ceramic Capacitor compatible
