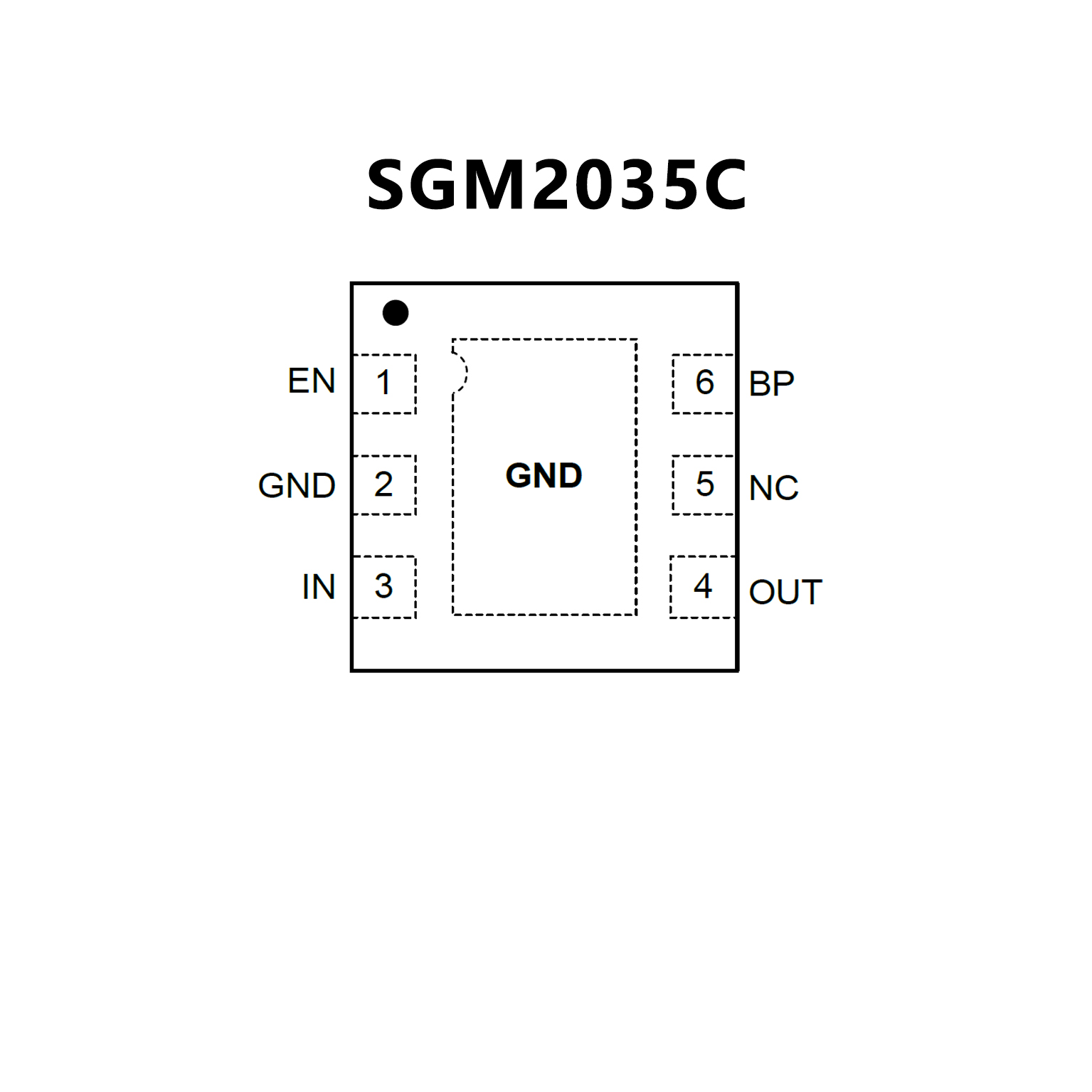

SGM2035C.pdf• 500mA Guaranteed Output Current
• Ultra Low Dropout Voltage
• Low Output Noise
• Thermal-Overload Protection
• Output Current Limit
• High PSRR (73dB at 1kHz)
• 1.8V Logic-Controlled Shutdown
• 110kΩ Pull Down Resistor at EN Pin
• Fixed Output Voltages: 2.8V, 3.0V and 3.3V
• Adjustable Output from 1.2V to 5.0V
• -40℃ to +85℃ Operating Temperature Range
• Available in Green UTDFN-1.6×1.6-6L and TDFN-2×2-6L Packages

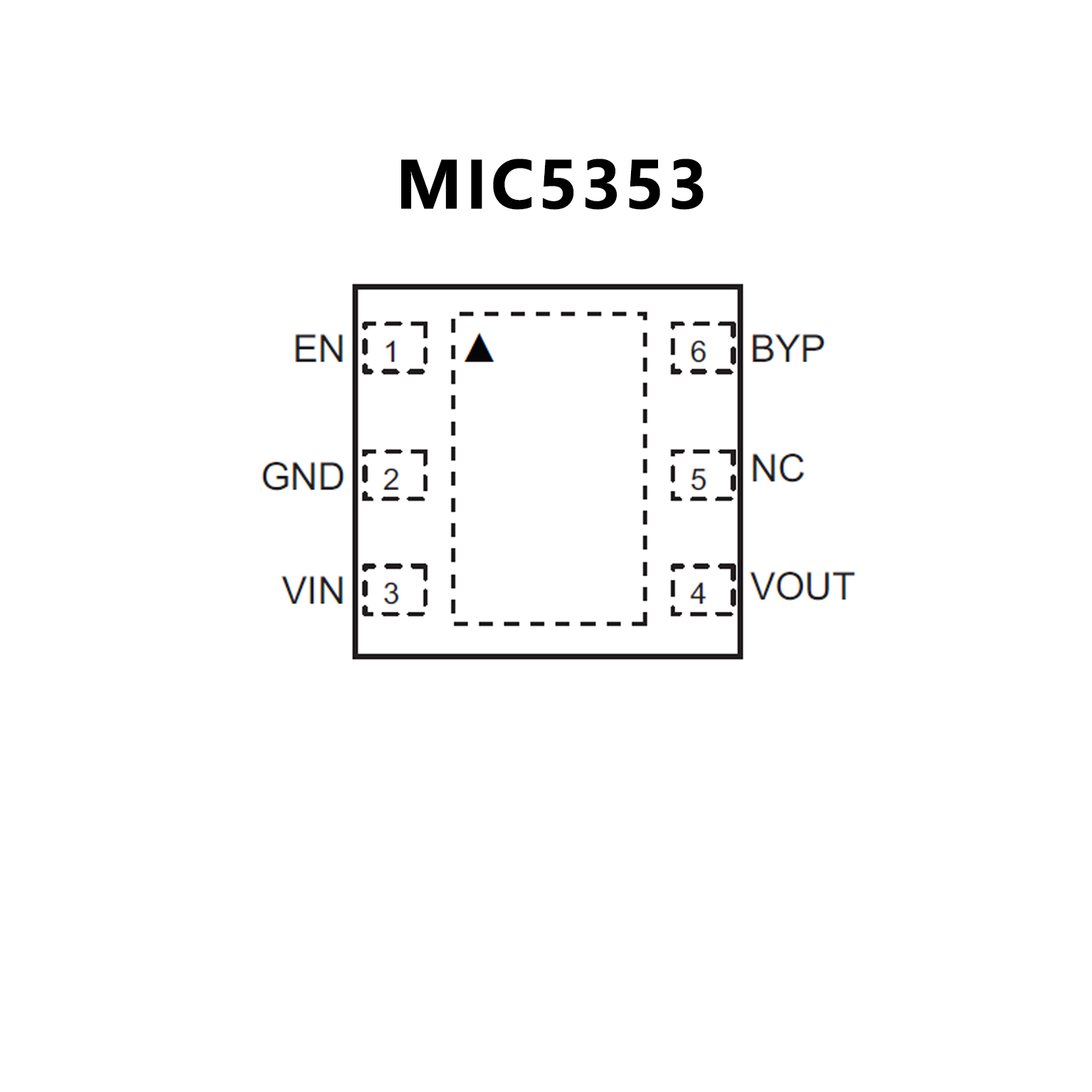

• 500 mA Guaranteed Output Current
• Input Voltage Range: 2.6V to 6V
• Ultra Low Dropout Voltage: 160 mV @ 500 mA
• ±2% initial Accuracy
• Ultra-Low Output Noise: 30 µVrms
• Low Quiescent Current: 90 µA
• Stable with Ceramic Output Capacitors
• 35 µs Turn-On Time
• Thermal Shutdown and Current Limit Protection
• Tiny 6-Pin 1.6 mm x 1.6 mm Thin UDFN Leadless Package
