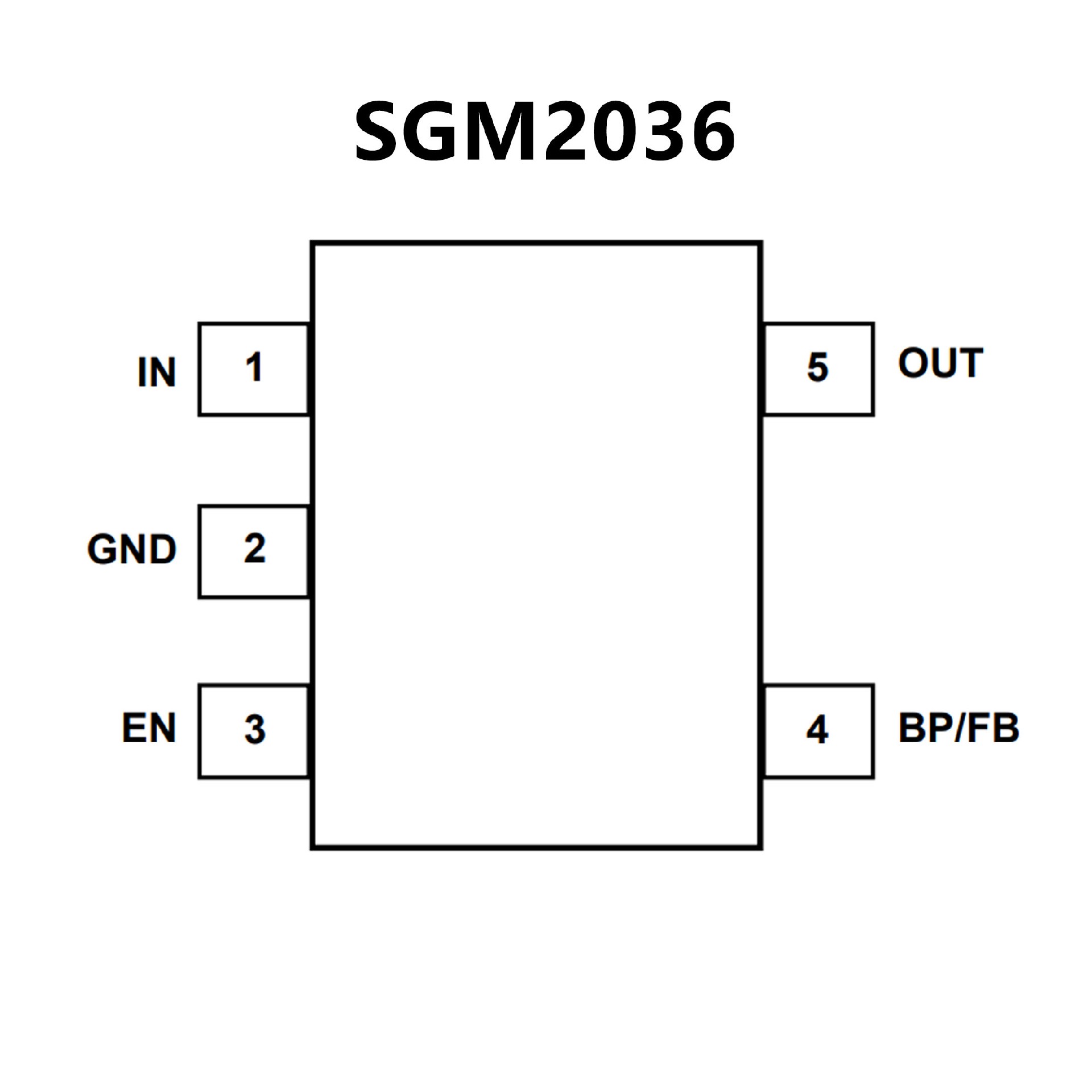

SGM2036.pdf• Low Dropout Voltage
• Thermal Overload Protection
• Built-In Fold Back Protection Circuit
• 20μA Low Supply Current
• 10nA Logic-Controlled Shutdown
• 1.6V to 5.5V Input Voltage Range
• Fixed Outputs of 0.8V, 0.9V, 1.0V,
1.05V, 1.1V,1.2V, 1.3V, 1.35V, 1.5V,
1.8V, 1.85V, 2.1V, 2.2V,2.3V, 2.5V,
2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,
3.1V,3.3V, 3.6V, 4.2V, 4.4V and 5.0V
• Adjustable Output from 0.8V to 5.0V
• Short Auto-Discharge Function
• 300mA Output Current
• High Output Voltage Accuracy
• Short Start-Up Time
• -40℃ to +85℃ Operating
Temperature Range
• Available in Green UTDFN-1×1-4L,
SOT-23-5 andSC70-5 Packages

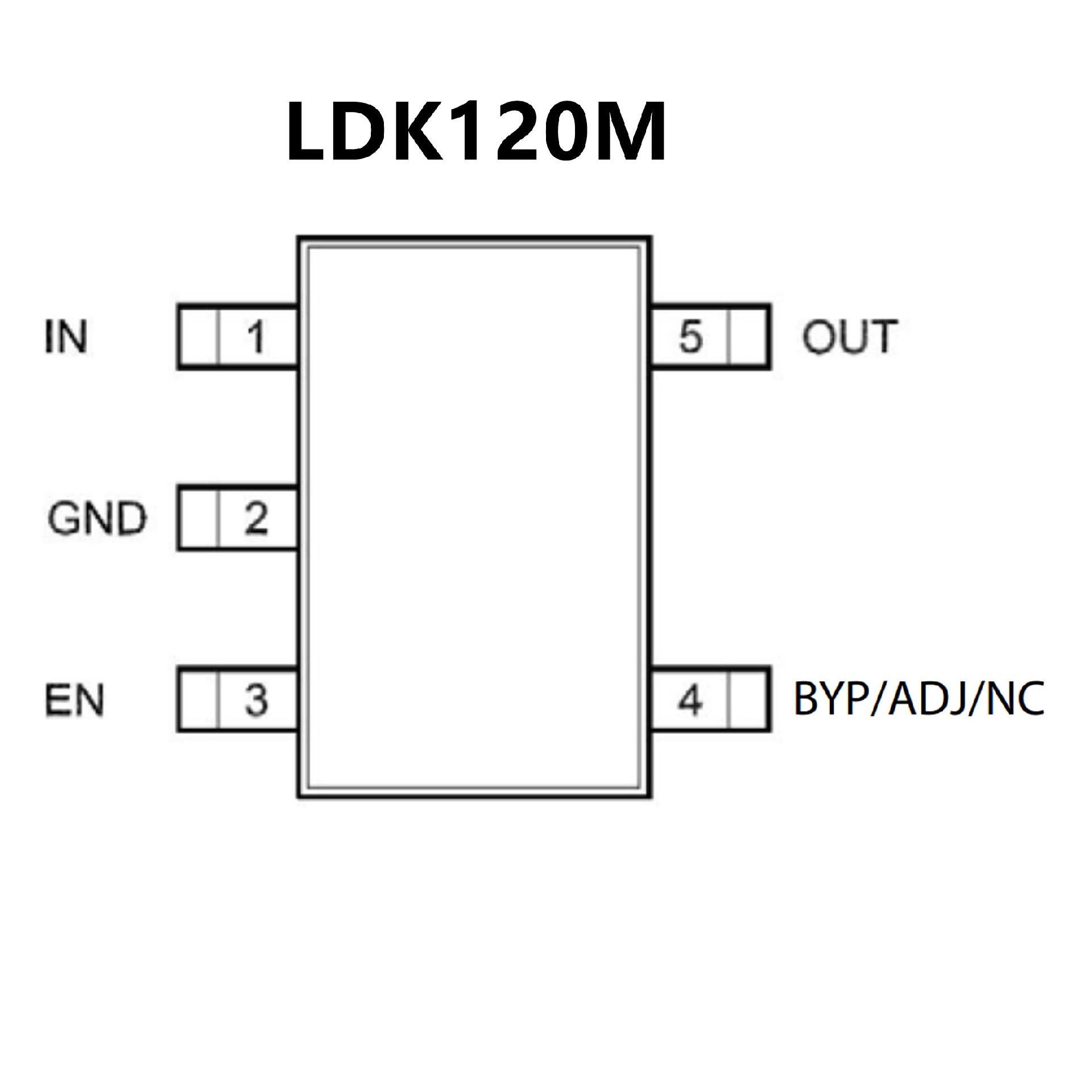

• Input voltage from 1.9 to 5.5 V
• Very low dropout voltage
(100 mV typ. at 100mA load)
• Low quiescent current
(max. 100 µA, 1 µA inOFF mode)
• Very low noise
• Output voltage tolerance: ± 2.0% @ 25 °C
• 200 mA guaranteed output current
• Wide range of fixed output voltages
availableon request: from 0.8 V to
3.5 V with 100 mVstep
• Adjustable version: from 0.8 V to VIN-Vdrop
• Logic-controlled electronic shutdown
• Compatible with ceramic capacitor COUT = 1 µF
• Internal current and thermal limit
• Available in SOT23-5L, SOT323-5L
and DFN6(1.2 x 1.3 mm) packages
• Temperature range: -40 °C to 125 °C
