300mA, Low Power, Low Dropout,RF Linear Regulator, SGM2036 Replace RT9078.
FEATURES

• Low Dropout Voltage

• Thermal Overload Protection

• Built-In Fold Back Protection Circuit

• 20μA Low Supply Current

• 10nA Logic-Controlled Shutdown

• 1.6V to 5.5V Input Voltage Range

• 0.75V Fixed Output Voltage

• Short Auto-Discharge Function

• 300mA Output Current

• High Output Voltage Accuracy

• Short Start-Up Time

• -40℃ to +85℃ Operating Temperature Range

• Available in Green SOT-23-5 and UTDFN-1×1-4L

  Packages

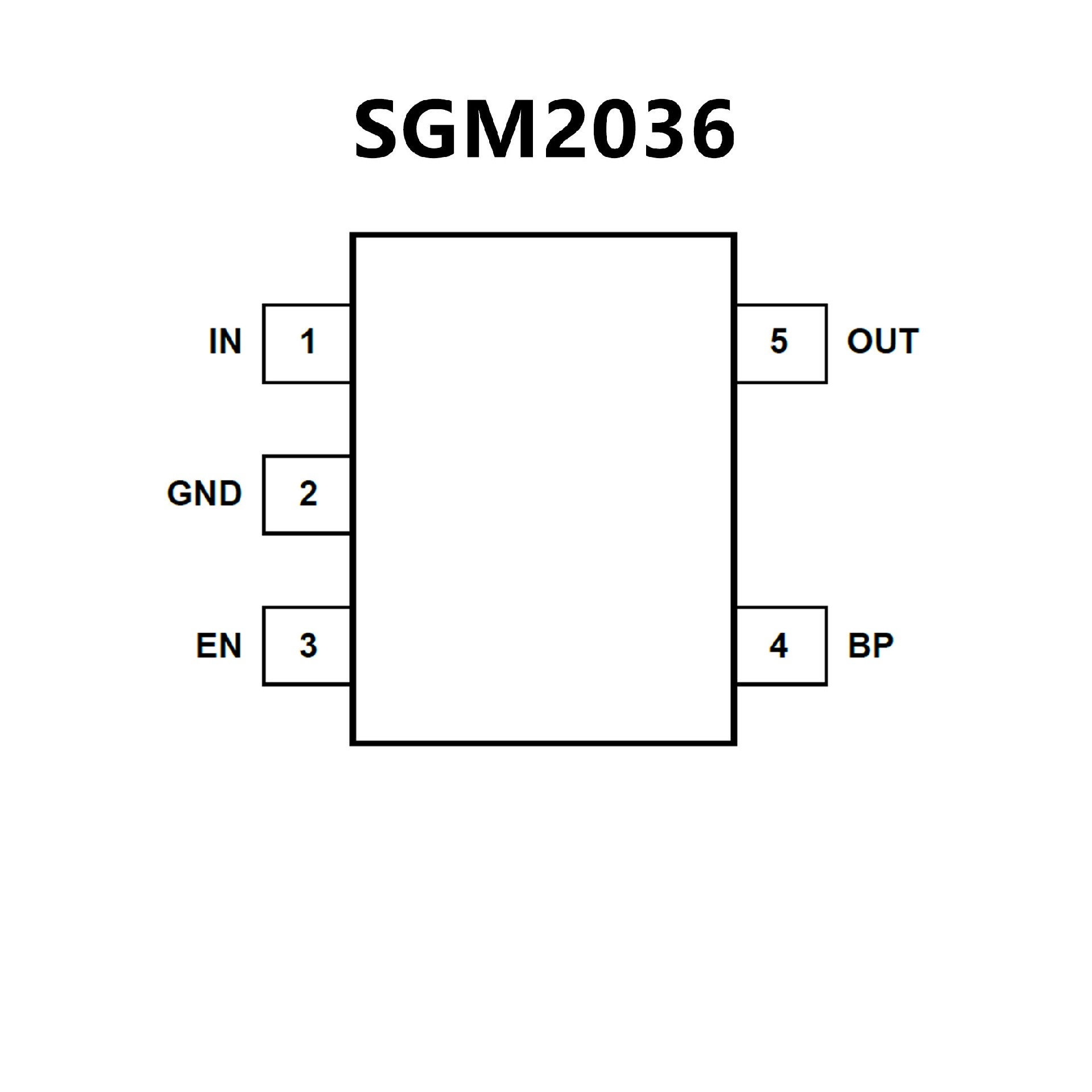

PIN CONFIGUTION
优势替代
RT9078 RT9078.pdf

No.12635

FEATURES

• Input Voltage Range : 1.2V to 5.5V

• 2μA Ground Current (IQ) at no Load

• PSRR = 75dB at 1kHz

• Adjustable Output Voltage Range :

• 0.8V to 5V (TSOT-23-5 Package with SNS Pin Only)

• ±2% Output Accuracy

• Low (0.1μA) Shutdown Current

• Dropout Voltage : 0.15V at 300mA when VOUT ≥ 3V

• Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V,

  1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V,

  2.85V, 3V, 3.1V, 3.3V, 3.45V

• Current Limit Protection

• Over Temperature Protection

• Output Active Discharge Function

• TSOT-23-5 and ZQFN-4L 1x1 (ZDFN-4L 1x1) Packages

  Available

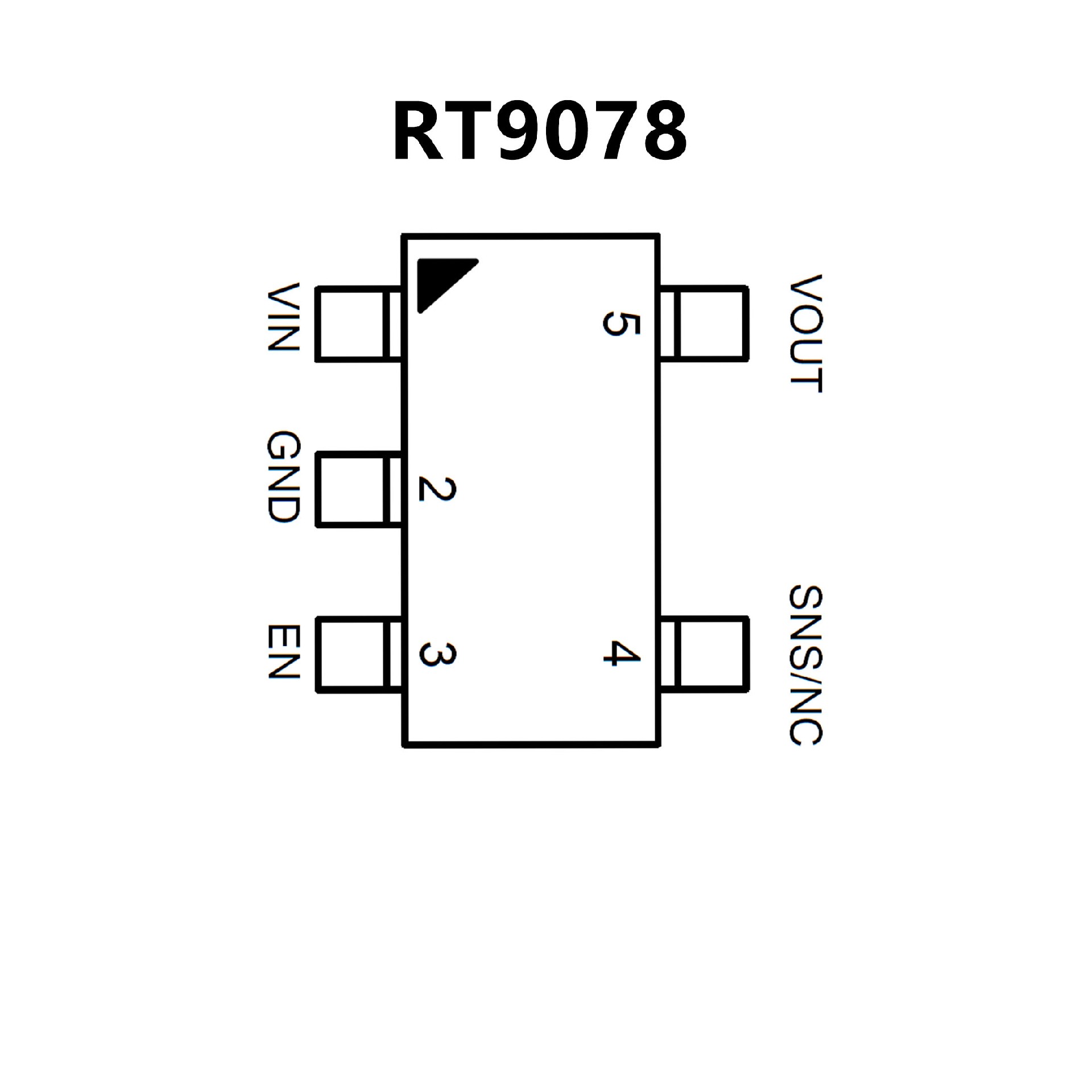

PIN CONFIGUTION
