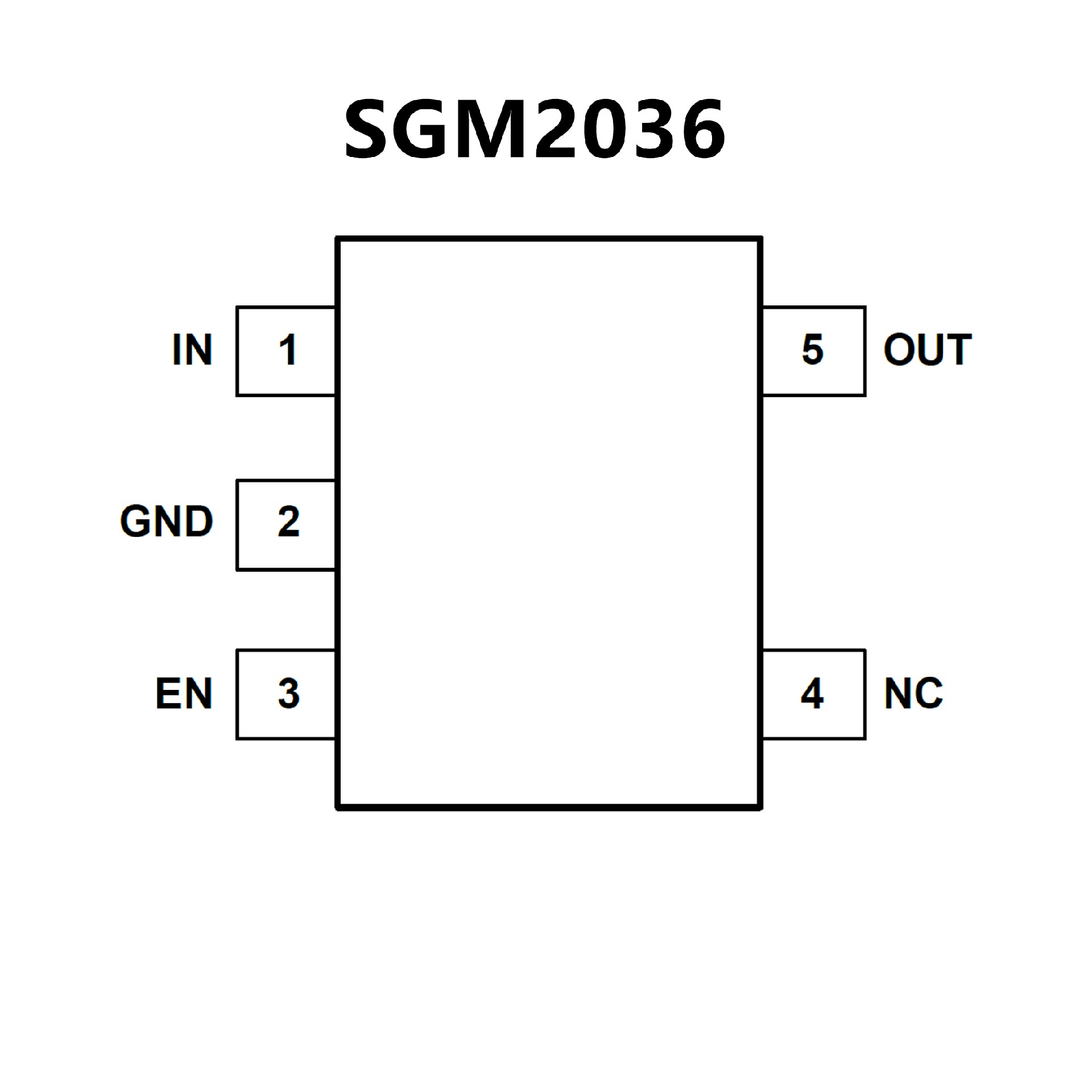

SGM2036-1.2YN5G.pdf• Low Dropout Voltage
• Thermal Overload Protection
• Built-In Fold Back Protection Circuit
• 20μA Low Supply Current
• 10nA Logic-Controlled Shutdown
• 1.6V to 5.5V Input Voltage Range
• Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,
1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V,
2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,
3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
• Adjustable Output from 0.8V to 5.0V
• Short Auto-Discharge Function
• 300mA Output Current
• High Output Voltage Accuracy
• Quick Start-Up Time
• -40℃ to +85℃ Operating Temperature Range
• Available in Green UTDFN-1×1-4L, SOT-23-5
and SC70-5 Packages
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: –40°C to 125°C
Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
• 2% Accuracy
• Low IQ: 35 μA
• Fixed-Output Voltages: 1.2 V and 1.8 V
• High PSRR: 68 dB at 1 kHz
• Stable With Effective Capacitance of 0.1 μF(1)
• Thermal Shutdown and Overcurrent Protection
