• Low Dropout Voltage

• Thermal Overload Protection

• Built-In Fold Back Protection Circuit

• 20μA Low Supply Current

• 10nA Logic-Controlled Shutdown

• 1.6V to 5.5V Input Voltage Range

• Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,

  1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V,

  2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V,

  3.3V, 3.6V, 4.2V, 4.4V and 5.0V

• Adjustable Output from 0.8V to 5.0V

• Short Auto-Discharge Function

• 300mA Output Current

• High Output Voltage Accuracy

• Short Start-Up Time

• -40℃ to +85℃ Operating Temperature Range

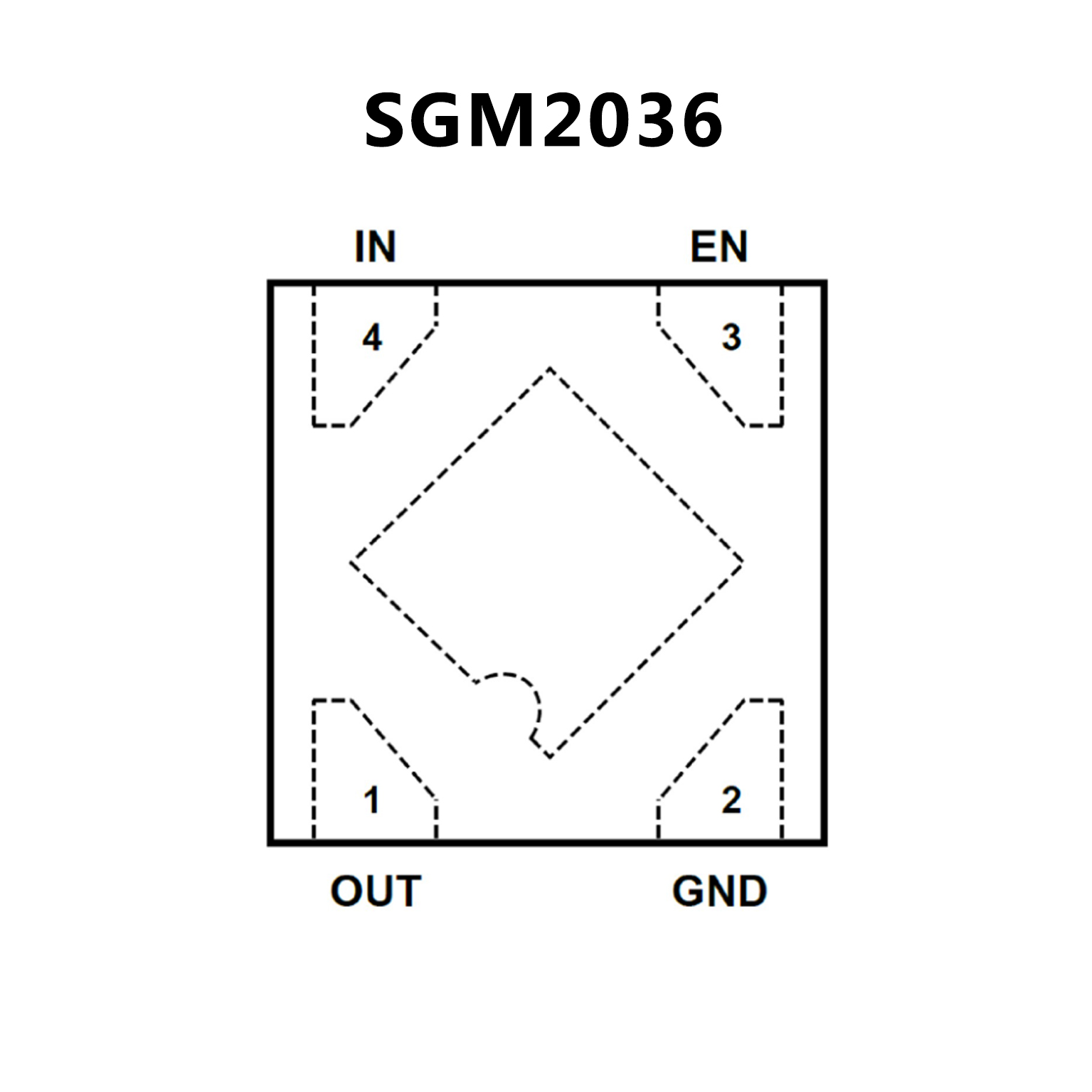

• Available in Green UTDFN-1×1-4L, SOT-23-5 and

  SC70-5 Packages
