300mA, Low Power, Low Dropout,RF Linear Regulators,SGM2036 Replace TLV73318.
SGM2036-1.8YN5G
SGM2036-1.8YN5G.pdf
SGM2036-1.8YN5G.pdfFEATURES
• Low Dropout Voltage
• Thermal Overload Protection
• Built-In Fold Back Protection Circuit
• 20μA Low Supply Current
• 10nA Logic-Controlled Shutdown
• 1.6V to 5.5V Input Voltage Range
• Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V,
2.1V, 2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V,
2.9V, 3.0V, 3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
• Adjustable Output from 0.8V to 5.0V
• Short Auto-Discharge Function
• 300mA Output Current
• High Output Voltage Accuracy
• Short Start-Up Time
-40℃ to +85℃ Operating Temperature Range
Available in Green UTDFN-1×1-4L,
SOT-23-5 and SC70-5 Packages

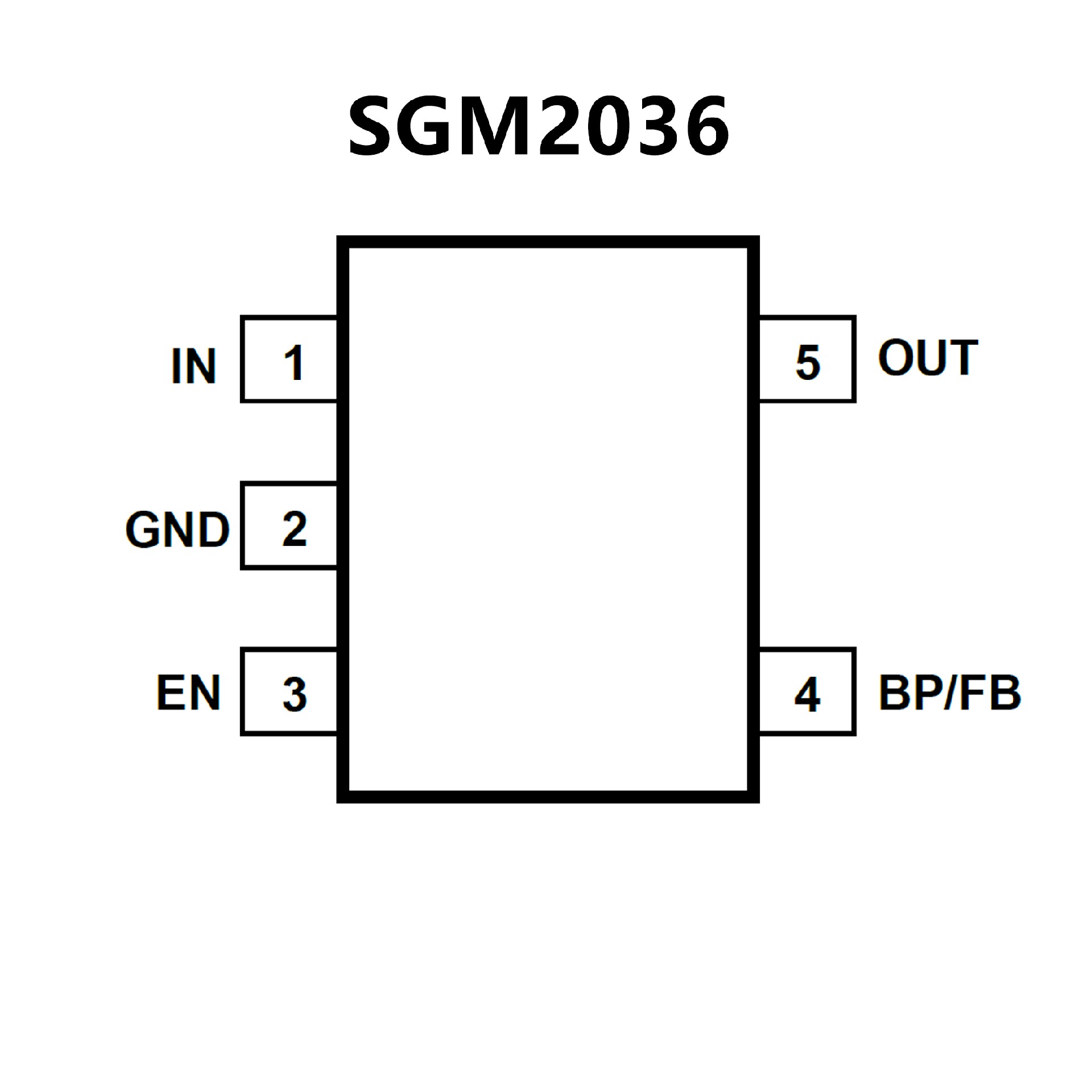

PIN CONFIGUTION
优势替代
FEATURES
• AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to 125°C, TA
• Device junction temperature range:
–40°C to 150°C
• Input voltage range: 1.4 V to 5.5 V
• Stable operation with or without capacitors
• Foldback overcurrent protection
• Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
• Very low dropout: 125 mV at 300 mA (3.3 VOUT)
• Accuracy: 1% typical, 1.4% maximum
• Low IQ: 34 µA
• Available in fixed-output voltages:
1.0 V to 3.3 V
• High PSRR: 50 dB at 1 kHz
• Active output discharge

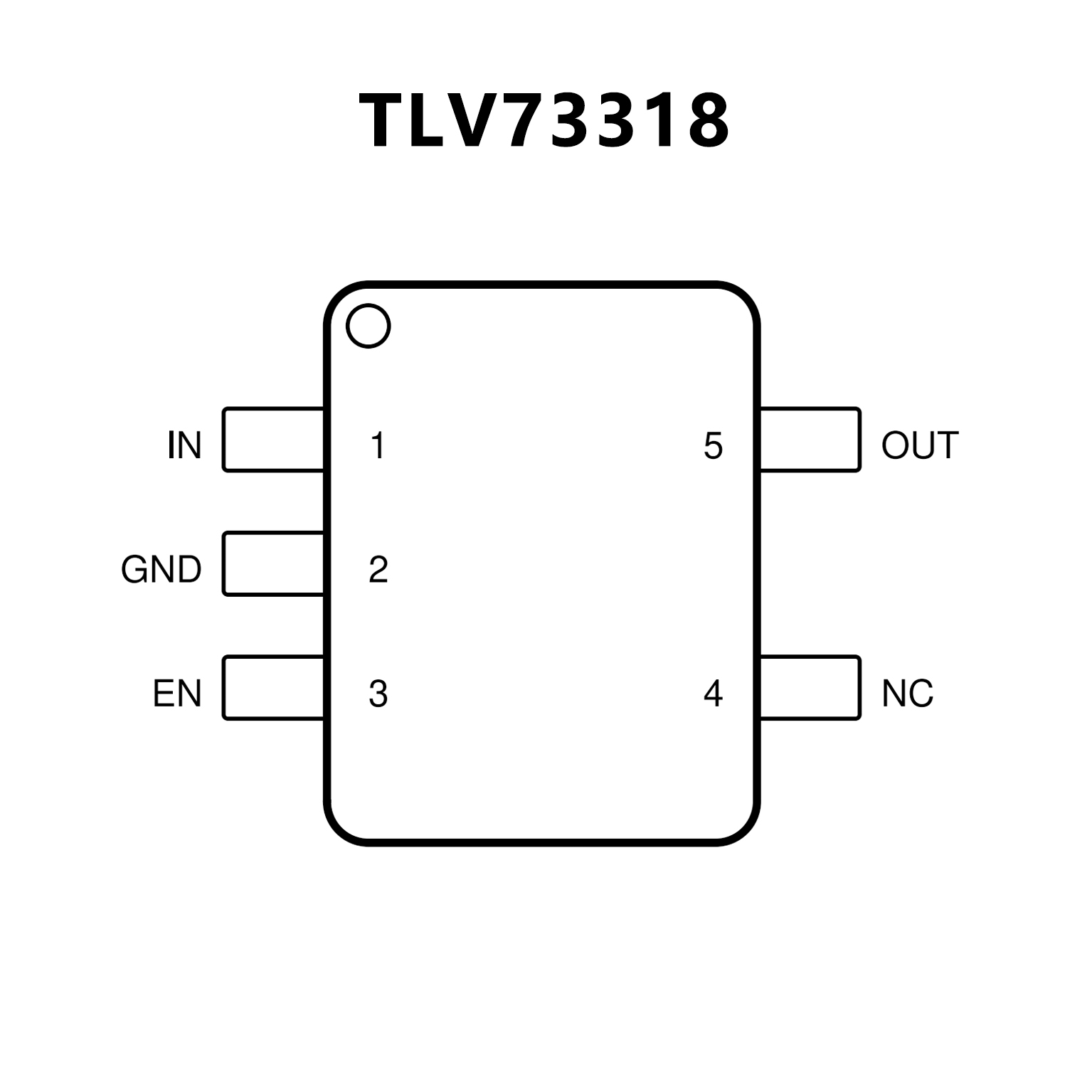

PIN CONFIGUTION
