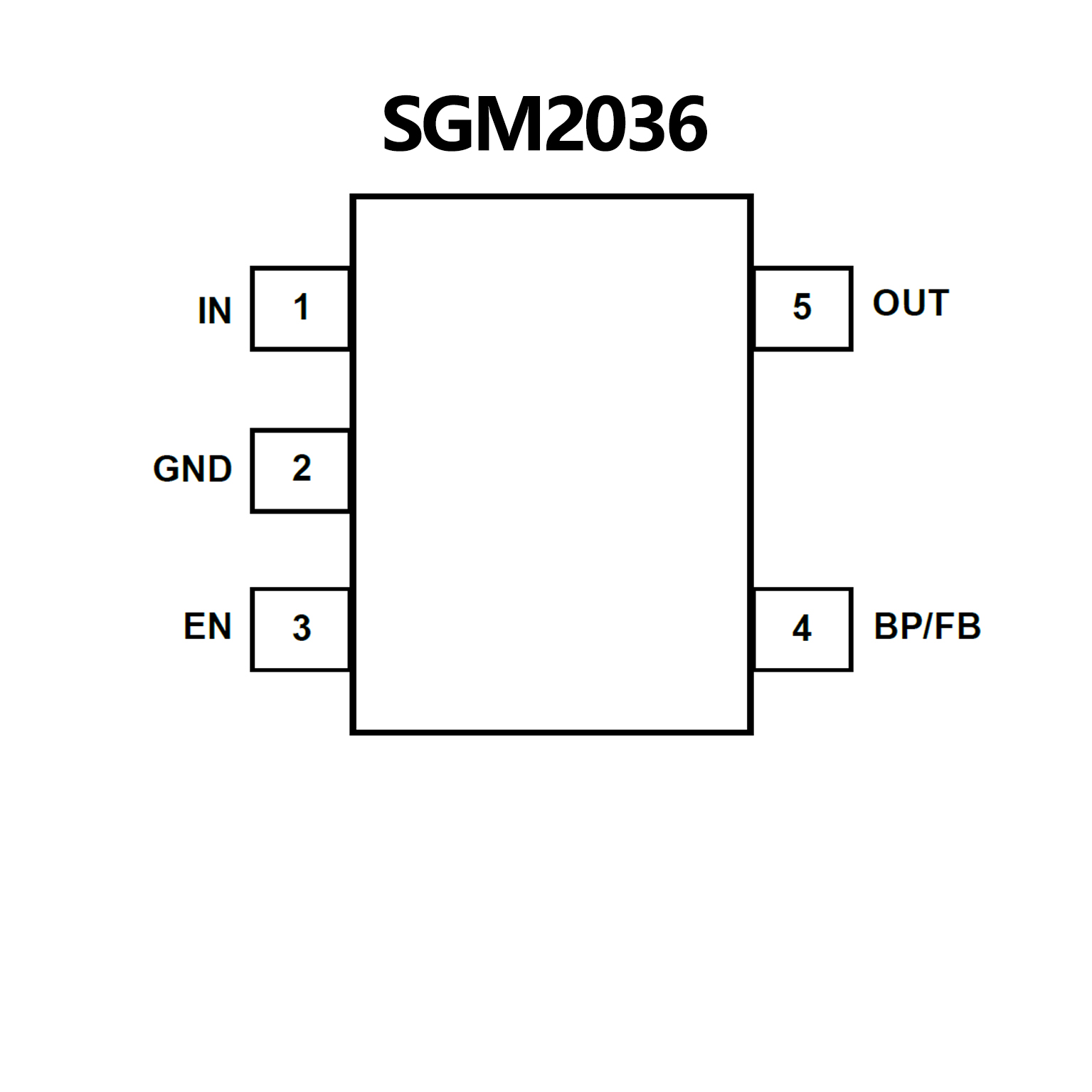

SGM2036.pdf• Low Dropout Voltage
• Thermal Overload Protection
• Built-In Fold Back Protection Circuit
• 20μA Low Supply Current
• 10nA Logic-Controlled Shutdown
• 1.6V to 5.5V Input Voltage Range
• Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,
1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V, 2.3V, 2.5V,
2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V, 3.3V,
3.6V, 4.2V, 4.4V and 5.0V
• Adjustable Output from 0.8V to 5.0V
• Short Auto-Discharge Function
• 300mA Output Current
• High Output Voltage Accuracy
• Short Start-Up Time
• -40℃ to +85℃ Operating Temperature Range
• Available in Green UTDFN-1×1-4L, SOT-23-5 and SC70-5 Packages

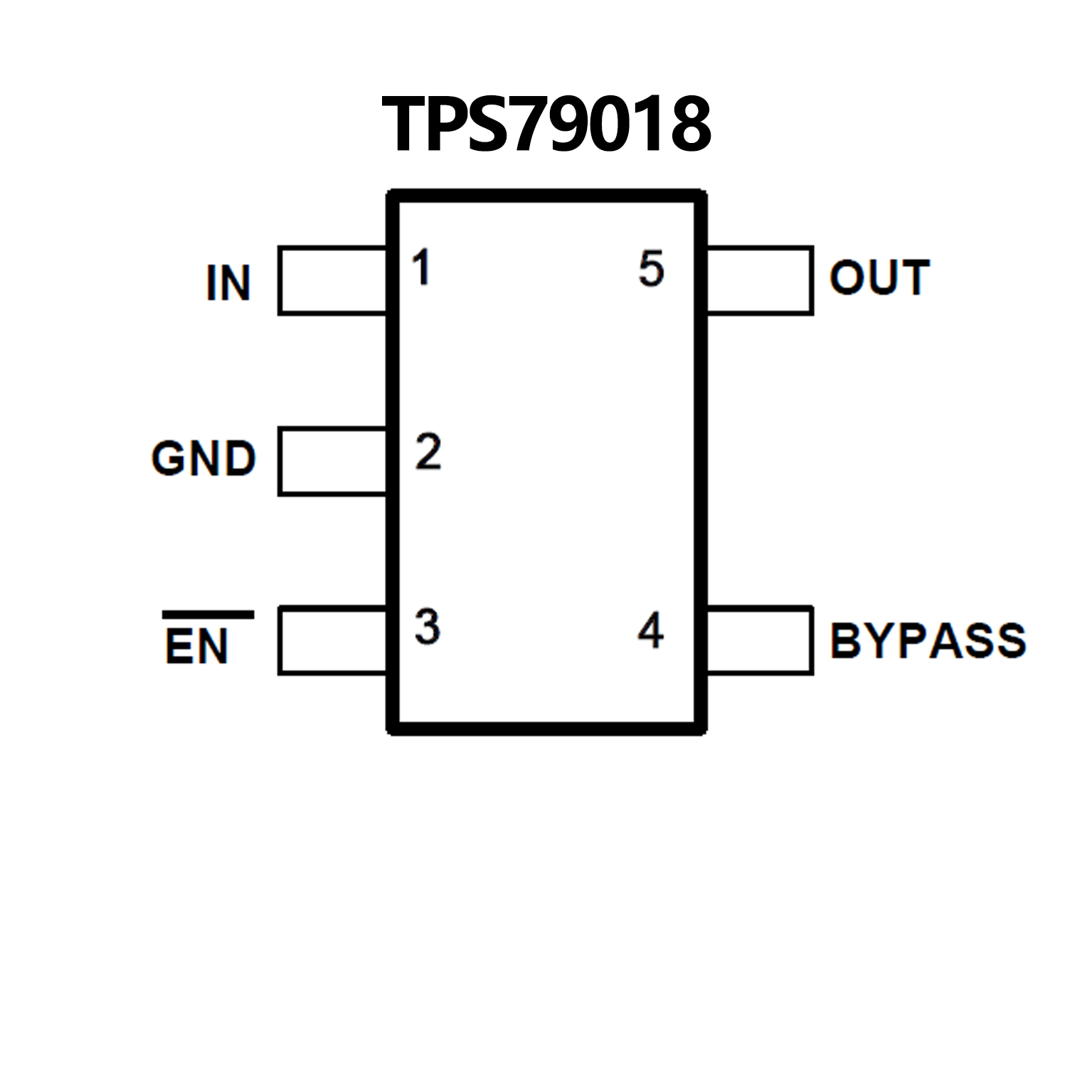

• 50-mA Low-Dropout Regulator
• Available in 1.5-V, 1.8-V, 2.5-V, 2.8-V, 3.0-V
• Output Noise Typically 56 μVRMS(TPS79030)
• Only 17 μA Quiescent Current at 50 mA
• 1 μA Quiescent Current in Standby Mode
• Dropout Voltage Typically 57 mV at 50 mA
(TPS79030)
• Over Current Limitation
• –40°C to 125°C Operating Junction
Temperature Range
• 5-Pin SOT-23 (DBV) Package50-mA Low-Dropout Regulator
• Available in 1.5-V, 1.8-V, 2.5-V, 2.8-V, 3.0-V
• Output Noise Typically 56 μVRMS
(TPS79030)
• Only 17 μA Quiescent Current at 50 mA
• 1 μA Quiescent Current in Standby Mode
• Dropout Voltage Typically 57 mV at 50 mA
(TPS79030)
• Over Current Limitation
• –40°C to 125°C Operating Junction
Temperature Range
• 5-Pin SOT-23 (DBV) Package
