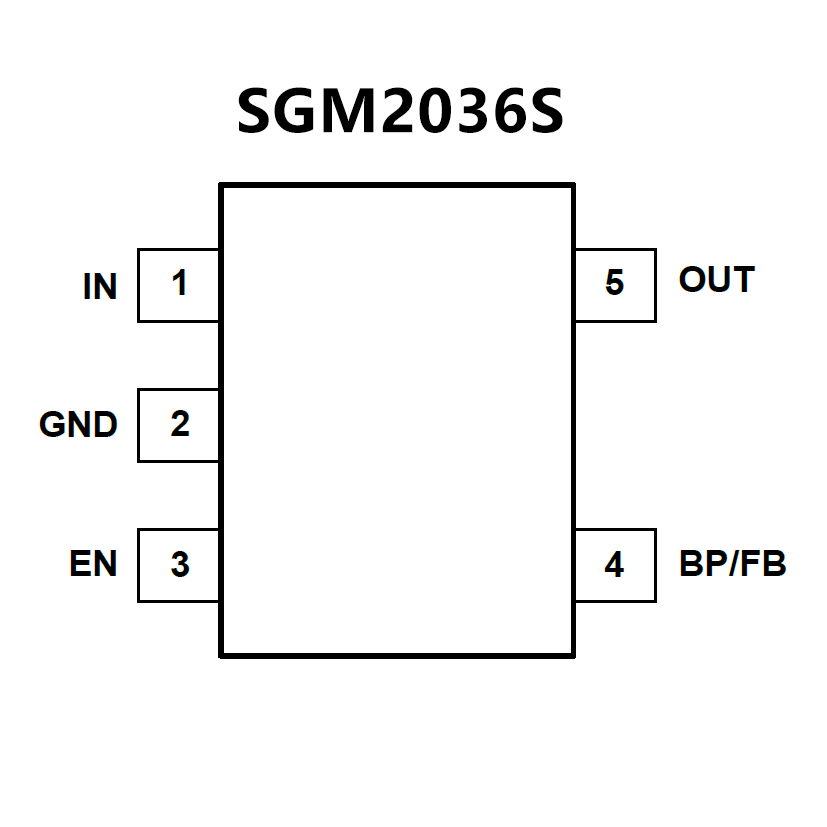

SGM2036S.pdf• Operating Input Voltage Range: 1.6V to 5.5V
• Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V,
2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V,
3.0V, 3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
• Adjustable Output from 0.8V to 5.0V
• 300mA Guaranteed Output Current
• Low Dropout Voltage: 154mV (TYP) at 300mA
• Low Noise: 40μVRMS (TYP)
• Low Supply Current: 25μA (TYP)
• Shutdown Supply Current: 0.04μA (TYP)
• Short Start-Up Time
• Short Auto-Discharge Function
• Thermal Shutdown Protection
• Short-Circuit Current Limit
• Fast Load and Line Transient Responses
• -40℃ to +125℃ Operating Temperature Range
• Available in Green XTDFN-1×1-4L,
SOT-23-5 and SC70-5 Packages

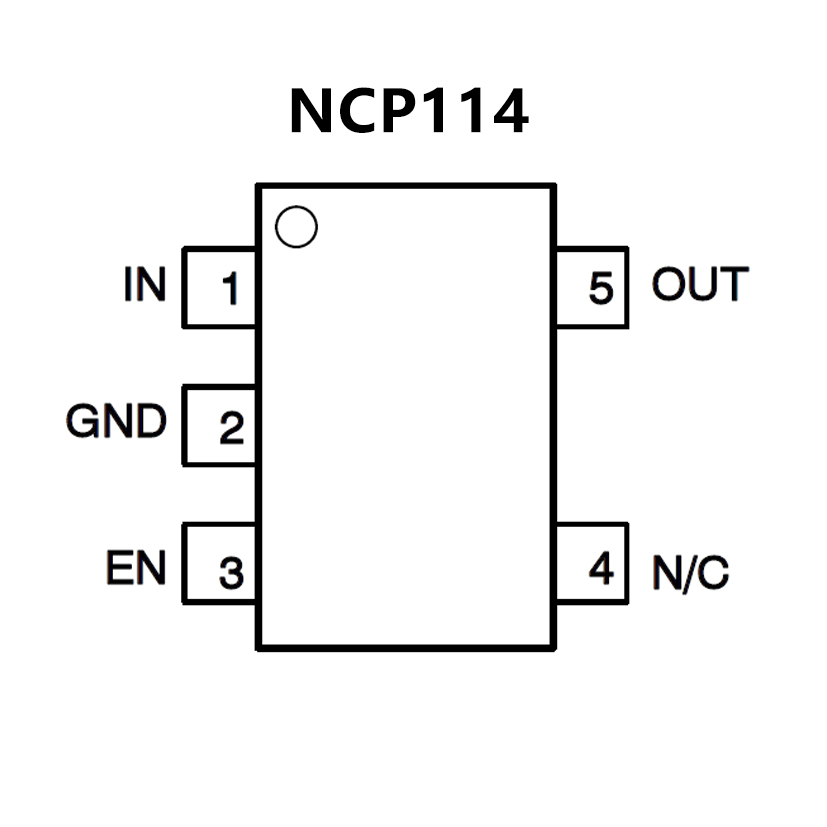

• Operating Input Voltage Range: 1.7 V to 5.5 V
• Available in Fixed Voltage Options: 0.75 V to 3.6
V Contact Factory for Other Voltage Options
• Very Low Quiescent Current of Typ. 50 A
• Standby Current Consumption: Typ. 0.1 A
• Low Dropout: 135 mV Typical at 300 mA
• ±1% Accuracy at Room Temperature
• High Power Supply Ripple Rejection: 75 dB at 1 kHz
• Thermal Shutdown and Current Limit Protections
• Stable with a 1 F Ceramic Output Capacitor
• Available in UDFN and TSOP Packages
• These are Pb−Free Devices
