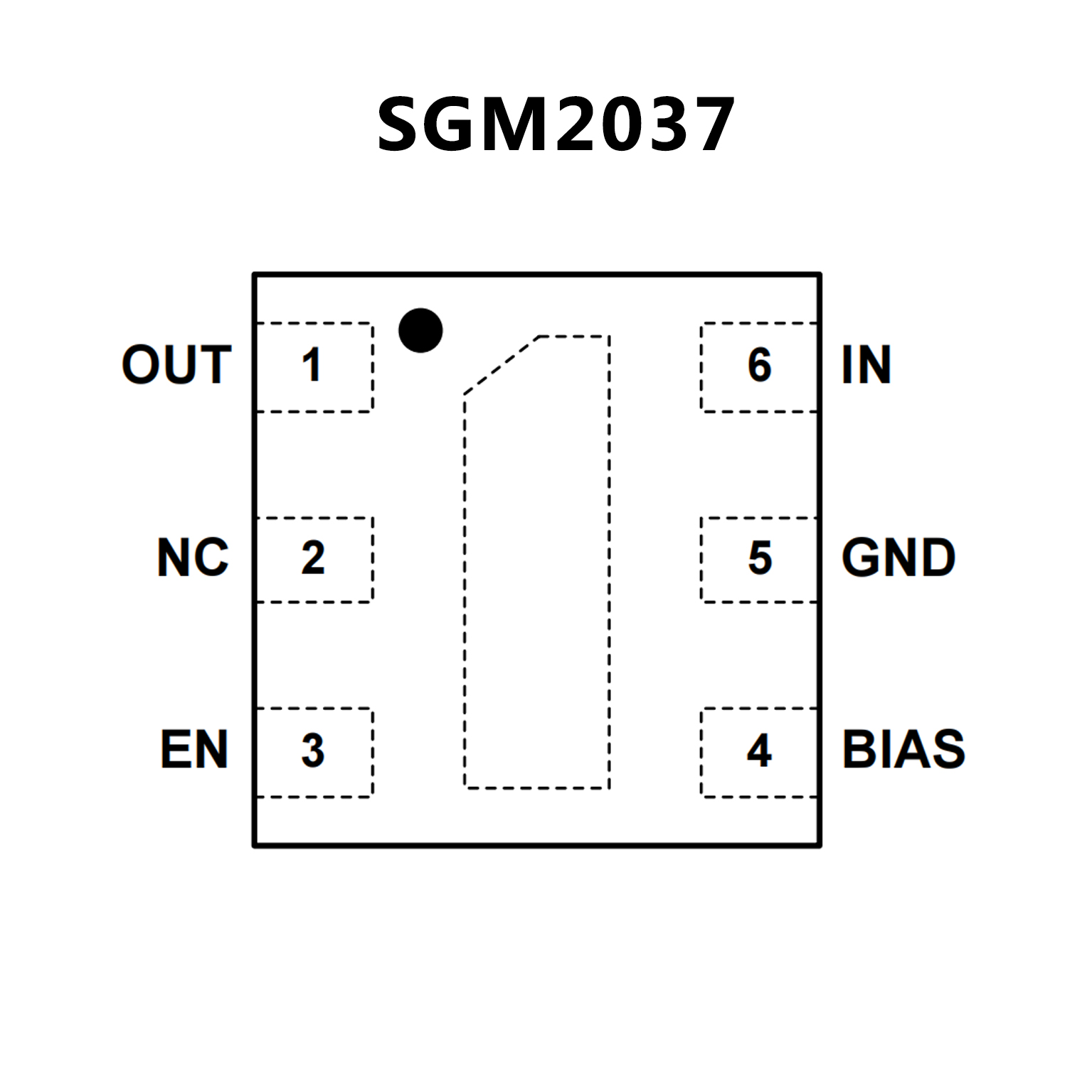

SGM2037.pdf• 500mA Nominal Output Current
• Input Voltage Range: 0.8V to 5.5V
• Bias Voltage Range: 2.5V to 5.5V
• Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.15V, 1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 2.5V, 2.8V,
3.0V, 3.3V, and 3.6V
• Adjustable Output Voltage Range: 0.8V to 3.6V
• Output Voltage Accuracy: ±0.8% at +25℃
• Low Dropout Voltage: 120mV (TYP) at 500mA
• Very Low Bias Input Current: 37μA (TYP)
• Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
• Low Noise: 25μVRMS (TYP)
• Over-Current and Over-Temperature Protections
• Fast Load Transient Response
• Logic Level Enable Input for ON/OFF Control
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5, SOT-23-6
and UTDFN-1.2×1.2-6L Packages

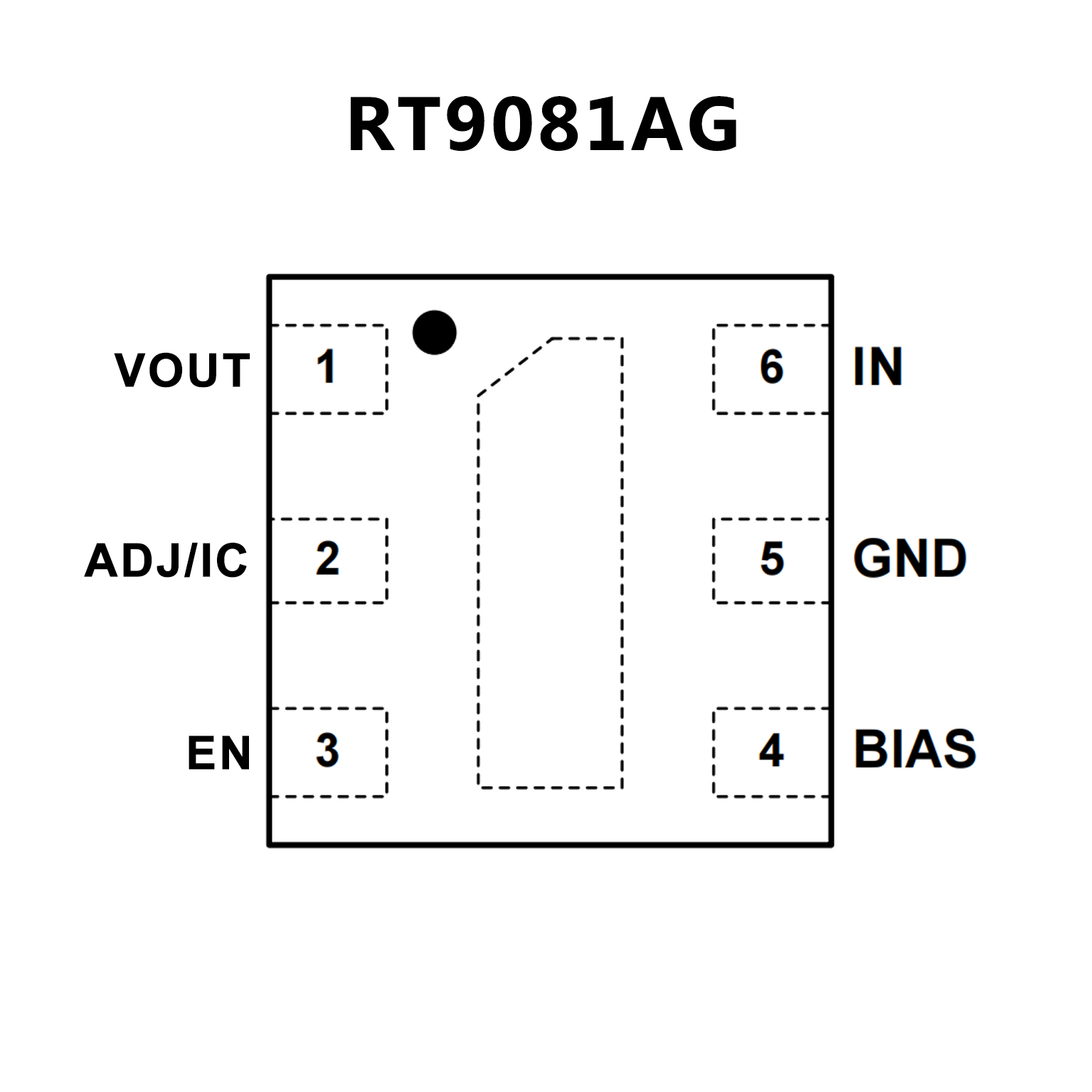

• nput Voltage Range : 0.8V to 5.5V
• Bias Voltage Range : 2.4V to 5.5V
• Output Voltage Fixed and Adjustable Versions
0.9V to 1.8V (Fixed)
0.8V to 3.6V (Adjustable)
• Accurate Output Voltage Accuracy (1.5%) Over Line,
Load @ 25°C
• Ultra Low Dropout Voltage : 140mV at 500mA
• Low Bias Input Current
80μμμμμA in Operating Mode
0.5μμμμμA in Shutdown Mode
• Enable Control
• Output Active Discharge Function
• RoHS Compliant and Halogen Free
