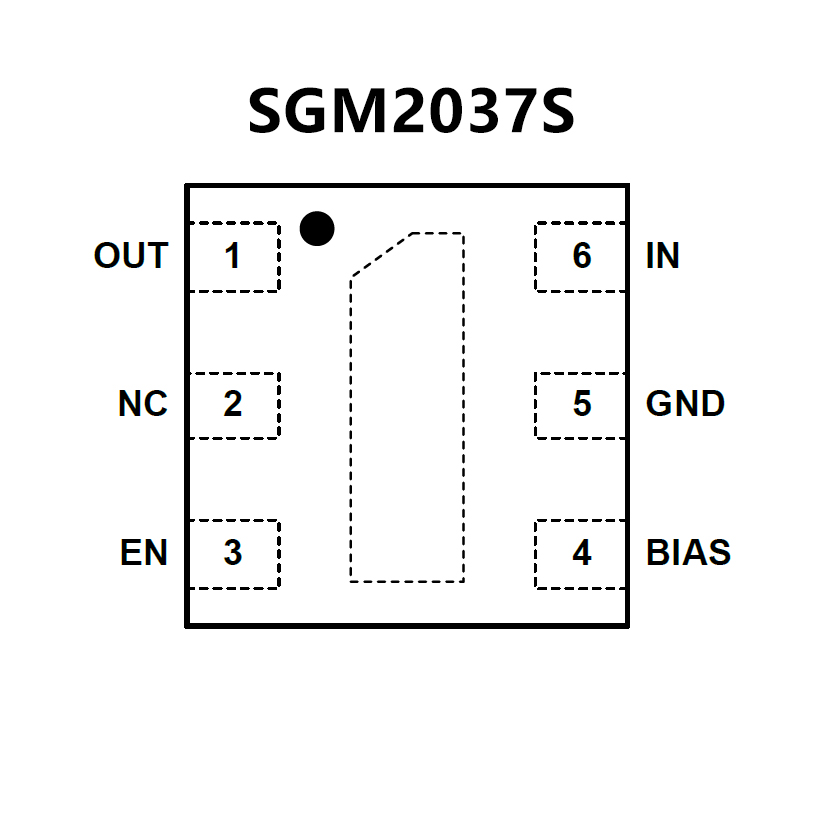

SGM2037S.pdf• Input Voltage Range: 0.9V to 5.5V
• Bias Voltage Range: 2.5V to 5.5V
• 0.9V Fixed Output Voltage
• Fast Load Transient Response
• 600mA Nominal Output Current
• Low Dropout: 140mV (TYP) at 600mA
• Very Low Bias Input Current: 98μA (TYP)
• Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
• Low Noise: 20μVRMS (TYP)
• Over-Current and Over-Temperature Protections
• Logic Level Enable Input for ON/OFF Control
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green UTDFN-1.2×1.2-6L Package

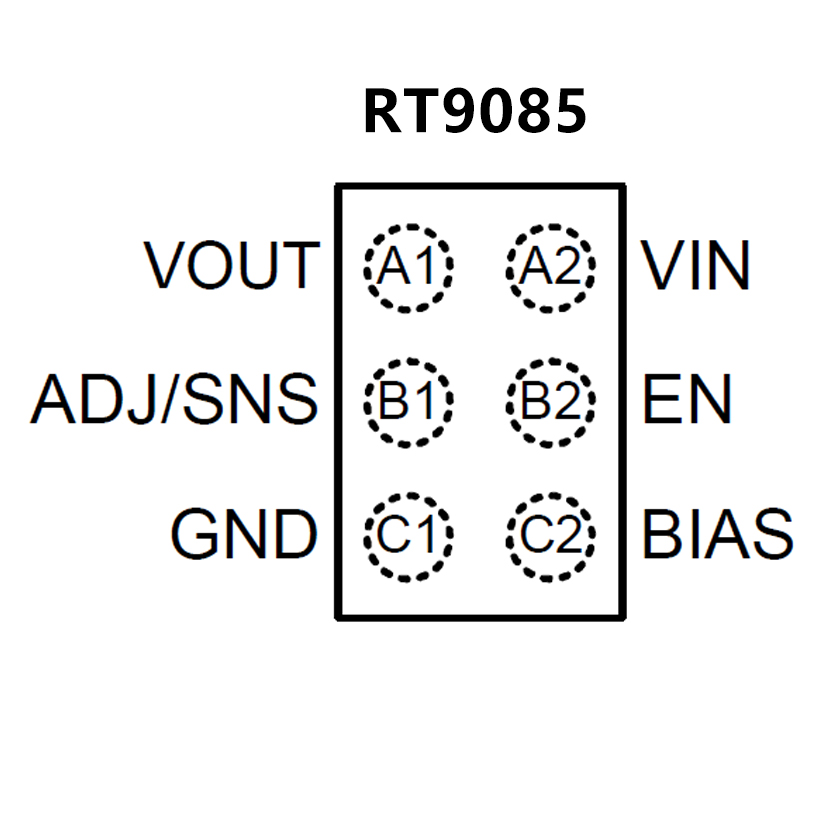

• Input Voltage Range : 0.8V to 5.5V
• Bias Voltage Range : 3V to 5.5V
• Available in Fixed and Adjustable (0.5V to 3V)
• Ultra Low Dropout Voltage : 60mV at 1A
• Accurate Output Voltage Accuracy (1%) Over Line,
Load @ 25°°°°°C
• Low Bias Input Current
• Typ 35μμμμμA in Operating Mode
• Typ 0.5μμμμμA in Shutdown Mode
• Output Active Discharge Function
• Enable Control
• Stable with a 10μμμμμF Output Ceramic Capacitor
• RoHS Compliant and Halogen/Pb Free
