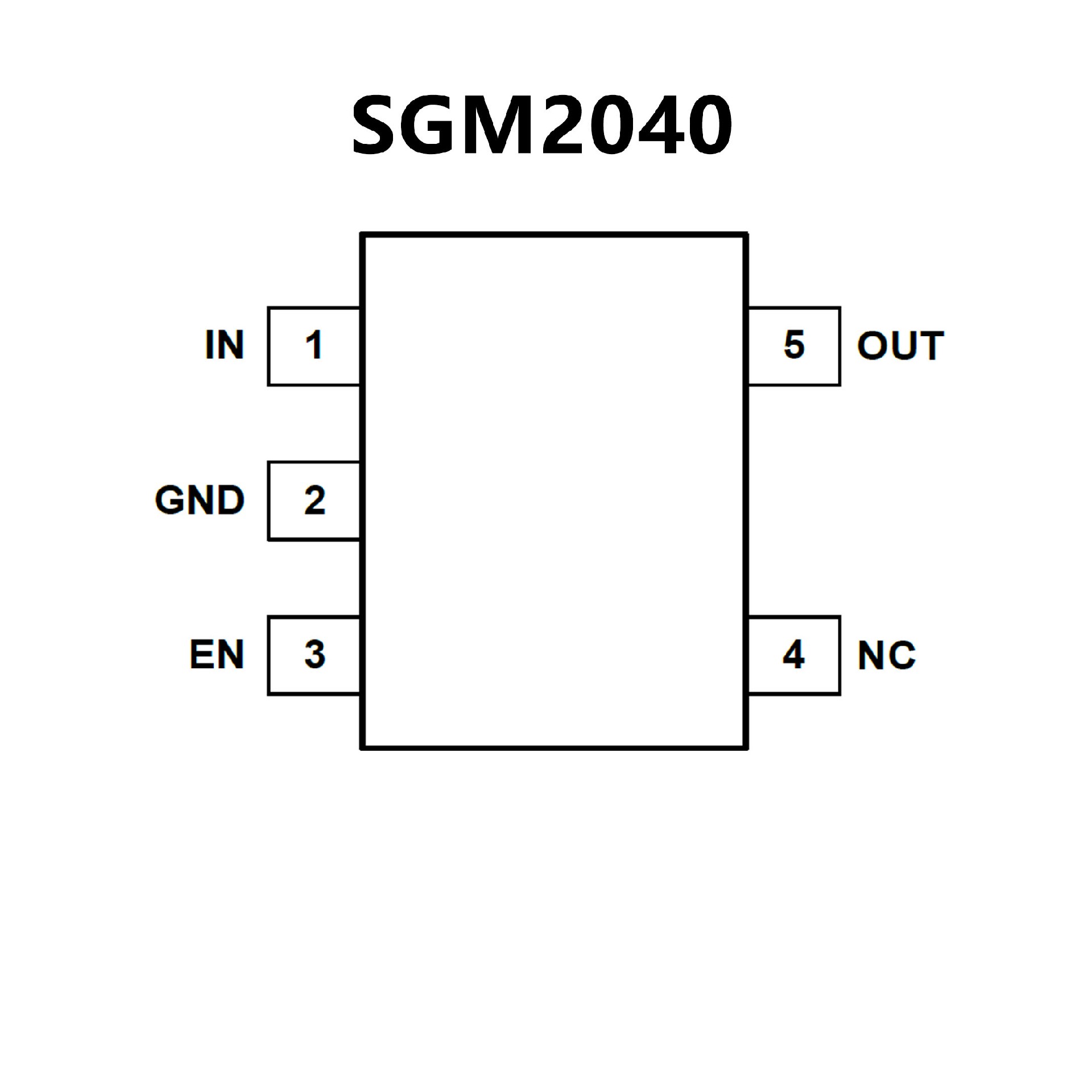

SGM2040.pdf• Operating Input Voltage Range: 1.7V to 7.5V
• Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V,
3.0V,3.3V, 3.6V, 4.0V, 4.2V and 5.0V
• 250mA Output Current
• High Output Voltage Accuracy: ±1.2% at +25℃
• Ultra-Low Quiescent Current: 1μA (TYP)
• Low Dropout Voltage: 60mV (TYP) at 100mA
• Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4ALPackages
• 1μA Ground Current at no Load
• PSRR = 75dB at 1kHz

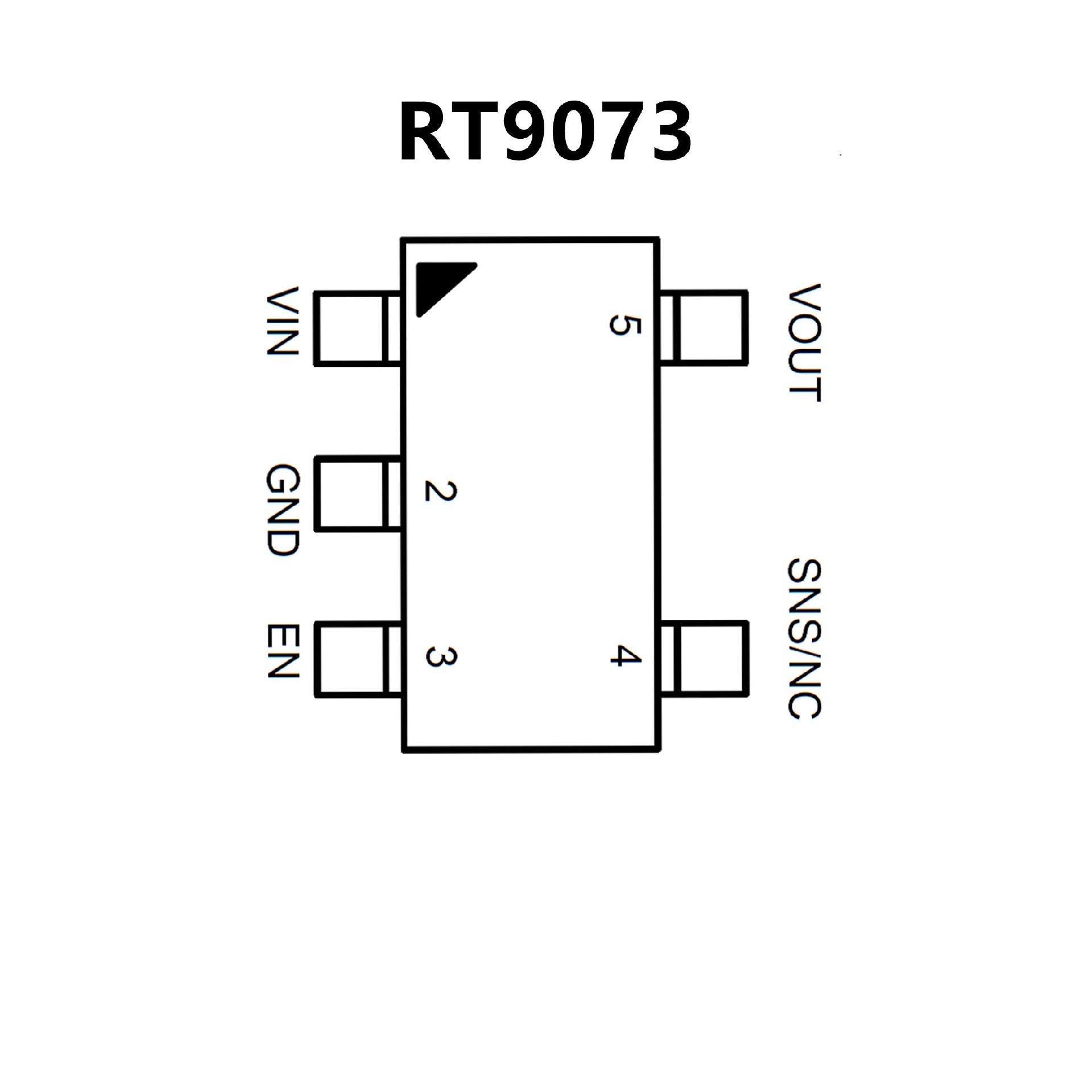

• Adjustable Output Voltage Available by Specific
Application
• ±2% Output Accuracy
• 250mA (VIN ≥ 2.3V) Output Current with EN
• Low (0.1μA) Disable Current
• 1.2V to 5.5V Operating Input Voltage
• Dropout Voltage : 0.45V (typ.) at 250mA when VOUT≥ 3V
• Support Fixed Output Voltage 0.9V, 1.05V, 1.2V, 1.5V,
1.8V, 1.9V, 2.5V, 2.7V, 2.8V, 2.9V, 3V, 3.3V
• Stable with Ceramic or Tantalum Capacitor
• Current Limit Protection
• Over Temperature Protection
• SOT-23-5 and SC-70-5 Packages Available
