• Operating Input Voltage Range: 1.7V to 7.5V

• Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V,

  3.3V, 3.6V, 4.0V, 4.2V and 5.0V

• 250mA Output Current

• High Output Voltage Accuracy: ±1.2% at +25℃

• Ultra-Low Quiescent Current: 1μA (TYP)

• Low Dropout Voltage: 60mV (TYP) at 100mA

•  Low Reverse Leakage Current:

  0.4μA (TYP) when V_OUT > V_IN

• Current Limiting and Thermal Protection

• With Output Automatic Discharge

• -40℃ to +85℃ Operating Temperature Range

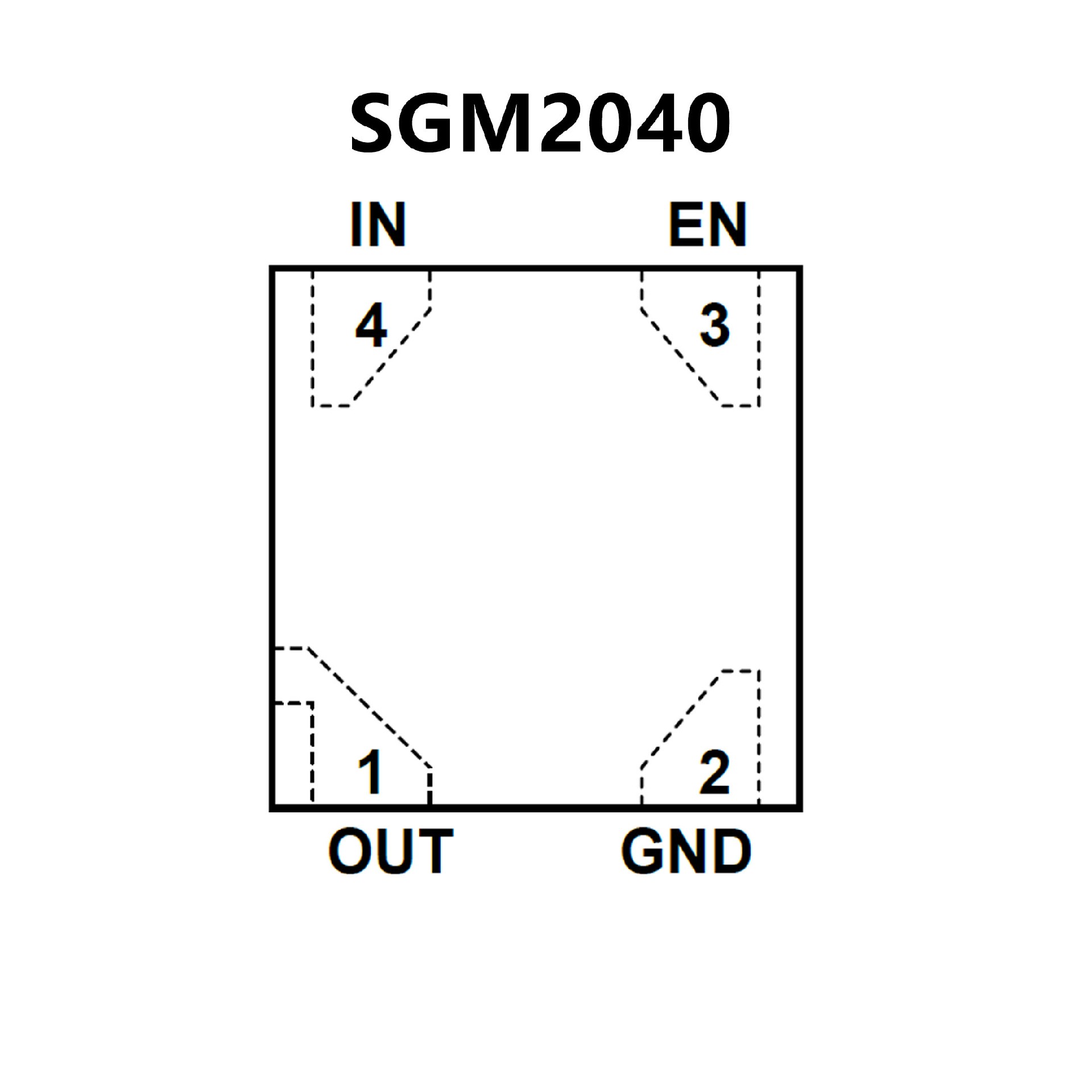

• Available in Green SOT-23-5 and

  UTDFN-1×1-4AL Packages
