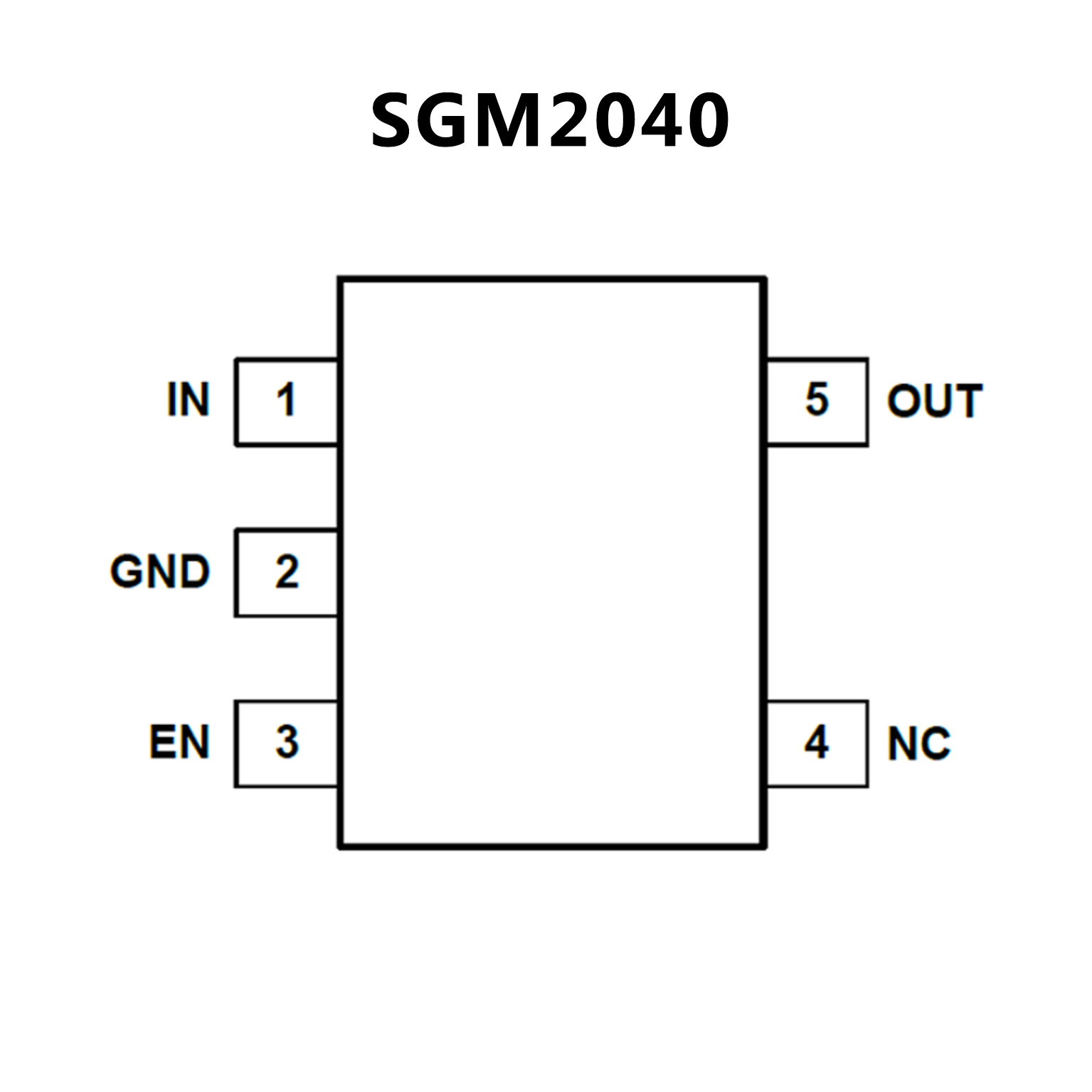

SGM2040.pdf• Operating Input Voltage Range: 1.7V to 7.5V
• Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V
• 250mA Output Current
• High Output Voltage Accuracy: ±1.2% at +25℃
• Ultra-Low Quiescent Current: 1μA (TYP)
• Low Dropout Voltage: 60mV (TYP) at 100mA
• Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages

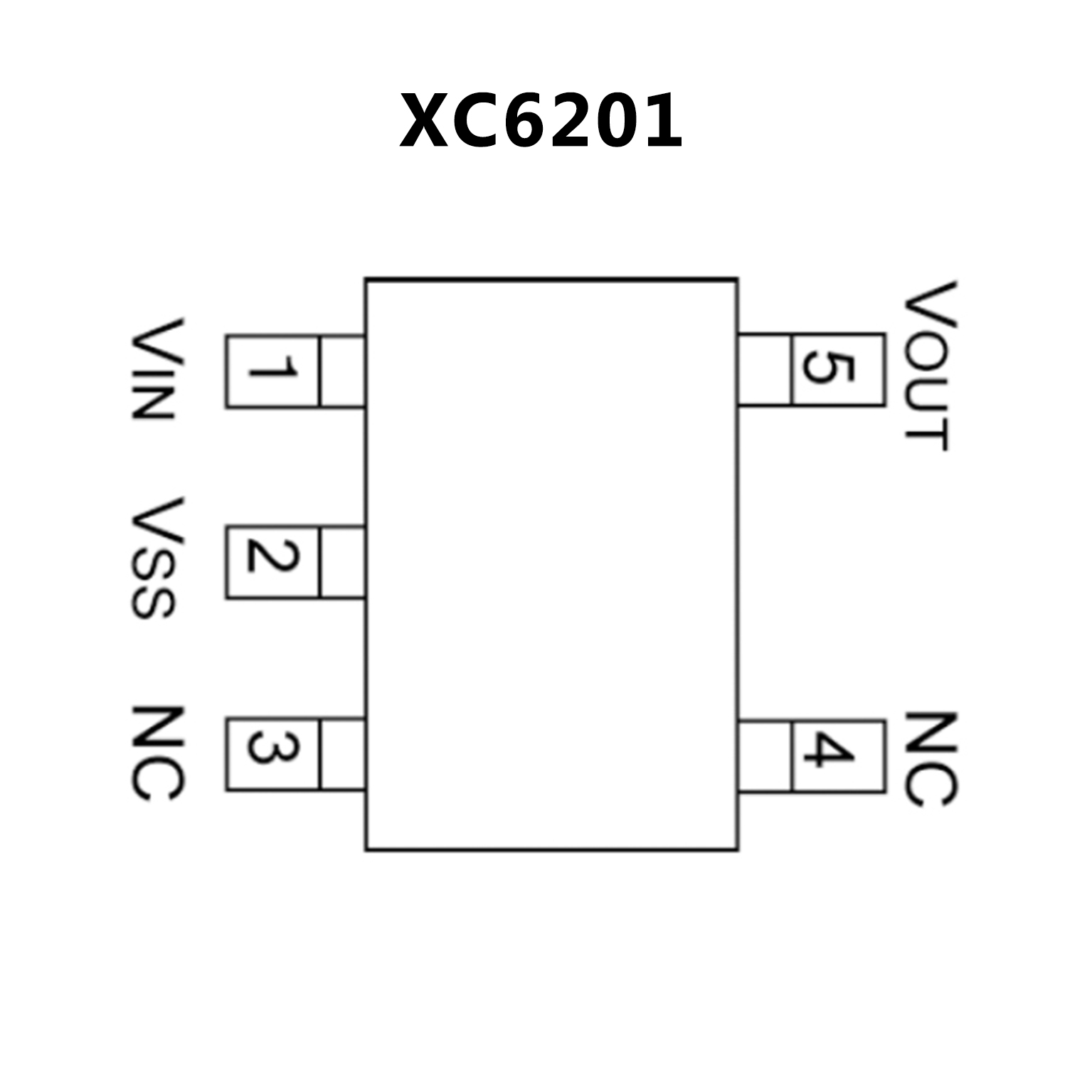

• Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
• Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V 1.3V ~ 6.0V (0.1V increments) : ±1% (VOUT(T)>2.0V)
• Low Power Consumption
±2% : 2.0μA (TYP.)
• Operating Ambient Temperature: -40℃ ~ 85℃ : SOT-25,
• Packages,SOT-89 USP-6B
• Environmentally Friendly : EU RoHS Compliant, Pb Free
Tantalum or Ceramic Capacitor compatible
