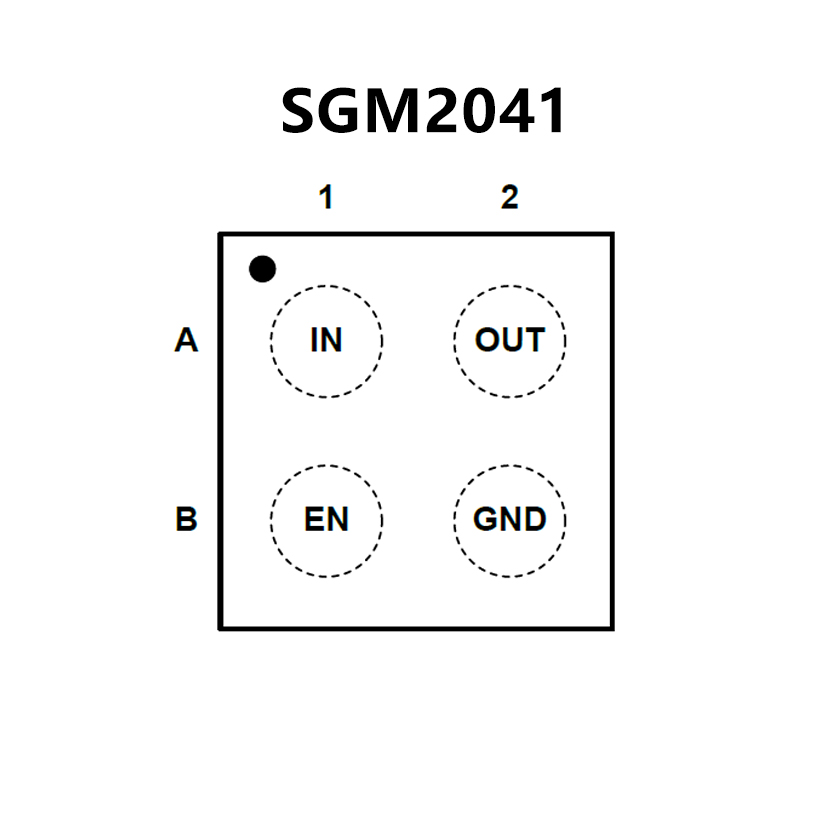

SGM2041.pdf• Operating Input Voltage Range: 1.6V to 5.5V
• Fixed Output Voltage Option: 0.75V to 4.35V
• Ultra-Low Noise: 9.5μVRMS (TYP)
• Ultra-Low Quiescent Current: 15μA (TYP)
• Standby Current: 0.03μA (TYP)
• High PSRR: 92dB (TYP) at 1kHz
• Low Dropout Voltage:
50mV (TYP) at 300mA when VOUT = 2.8V
• Output Short-Circuit Protection
• Over-Temperature Protection
• Fast Load and Line Transient Responses
• Stable with 1μF Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in an Ultra-Thin Green
WLCSP-0.64×0.64-4B-A Package

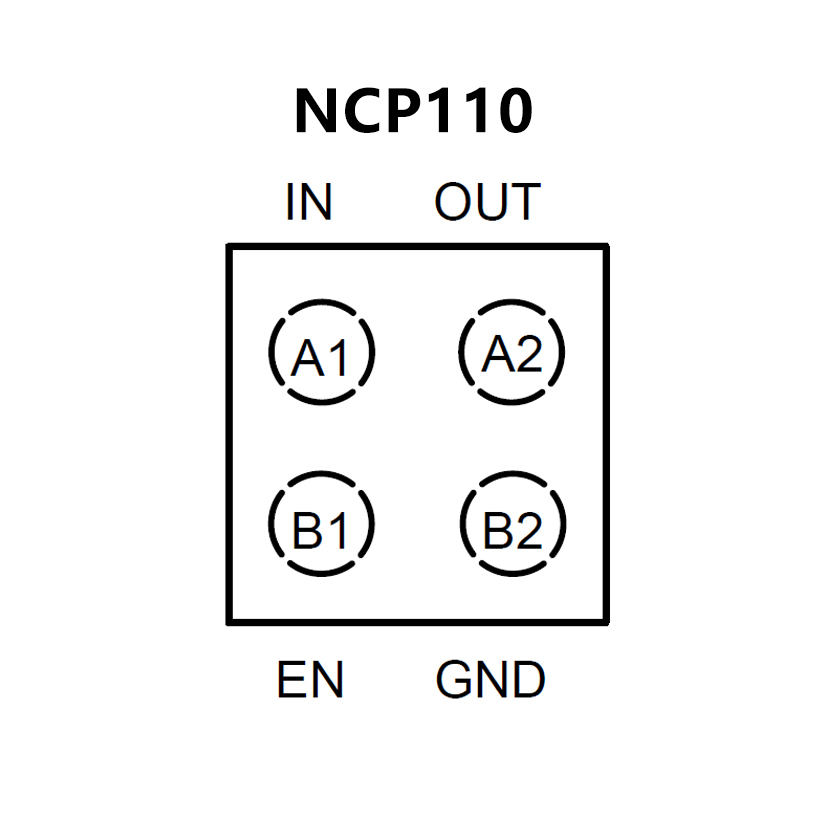

• Operating Input Voltage Range: 1.1 V to 5.5 V
• Available in Fixed Voltage Option: 0.6 V to 4.0 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 20 A
• Standby Current: Typ. 0.1 A
• Very Low Dropout: 70 mV for 1.05 V @ 100 mA
• High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 8.8 VRMS
• Stable with a 1 F Small Case Size Ceramic Capacitors
• Available in −WLCSP4 0.64mm x 0.64mm x 0.33mm
− Case 567VSXDFN4 1mm x 1mm x 0.4mm − Case 711AJ
• These Devices are Pb−Free, Halogen Free/BFR Free
and are RoHS Compliant
