SGM2042.pdf• Wide Input Voltage Range: 1.6V to 5.5V
• Output Voltage Accuracy: ±1% at +25℃
• Output Current: 100mA per Channel
• Power Supply Rejection Ratio: 65dB (TYP) at 1kHz
• Low Output Noise: 145μVRMS from 10Hz to 100kHz
• Low Quiescent Current: 40μA (TYP) per Channel
• Fast Line and Load Transient Responses
• Over-Current Protection
• -40℃ to +85℃ Operating Temperature Range

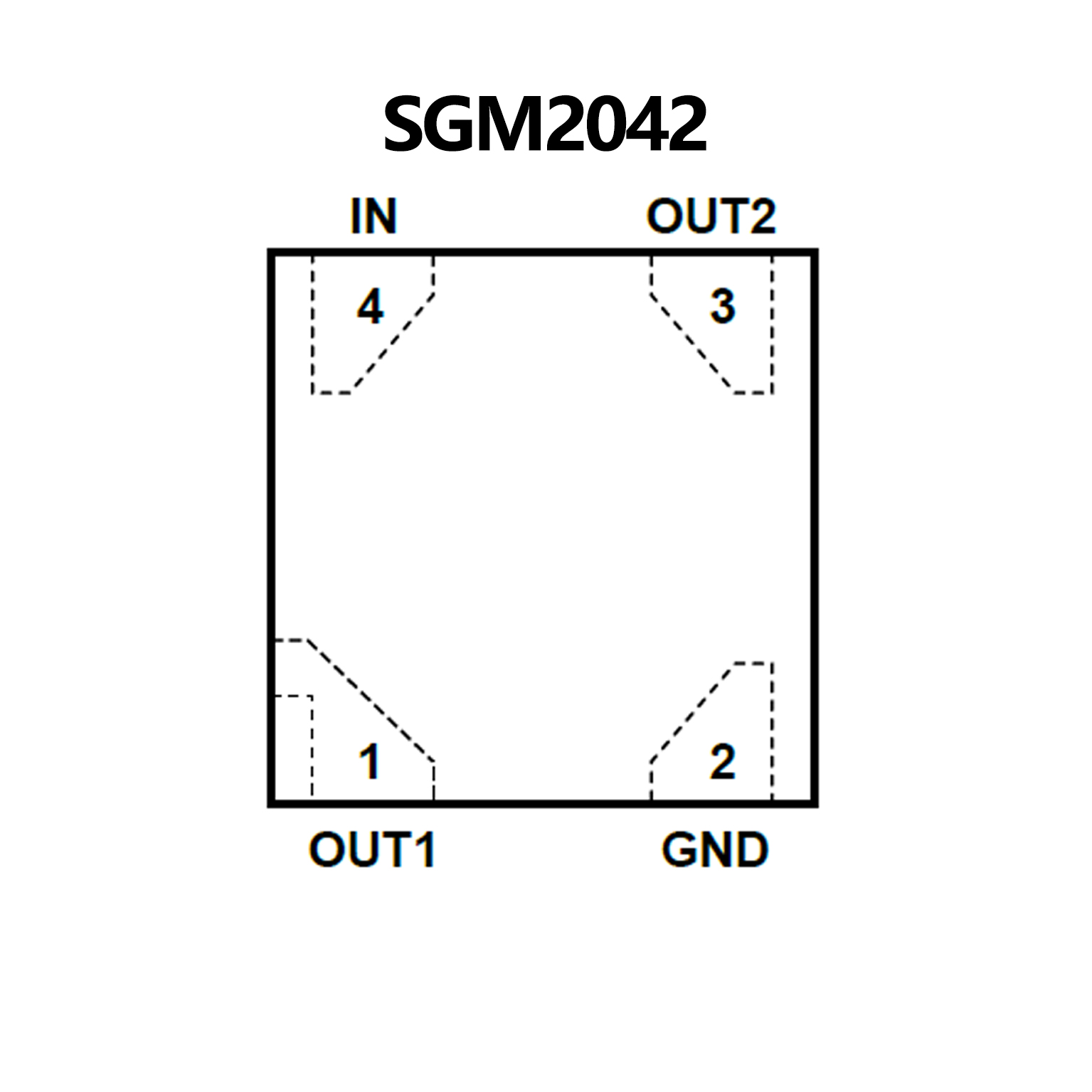

• Available in a Green UTDFN-1×1-4AL Package
• Operating Input Voltage Range: 2.2 V to 5.5 V
• Available in Fixed Voltage Option: 1.2 V to 5.3 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 12 uA
• Standby Current: Typ. 0.1 uA
• Very Low Dropout: 80 mV at 250 mA
• Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 6.5 uVRMS
• Stable with a 1 uF Small Case Size Ceramic Capacitors

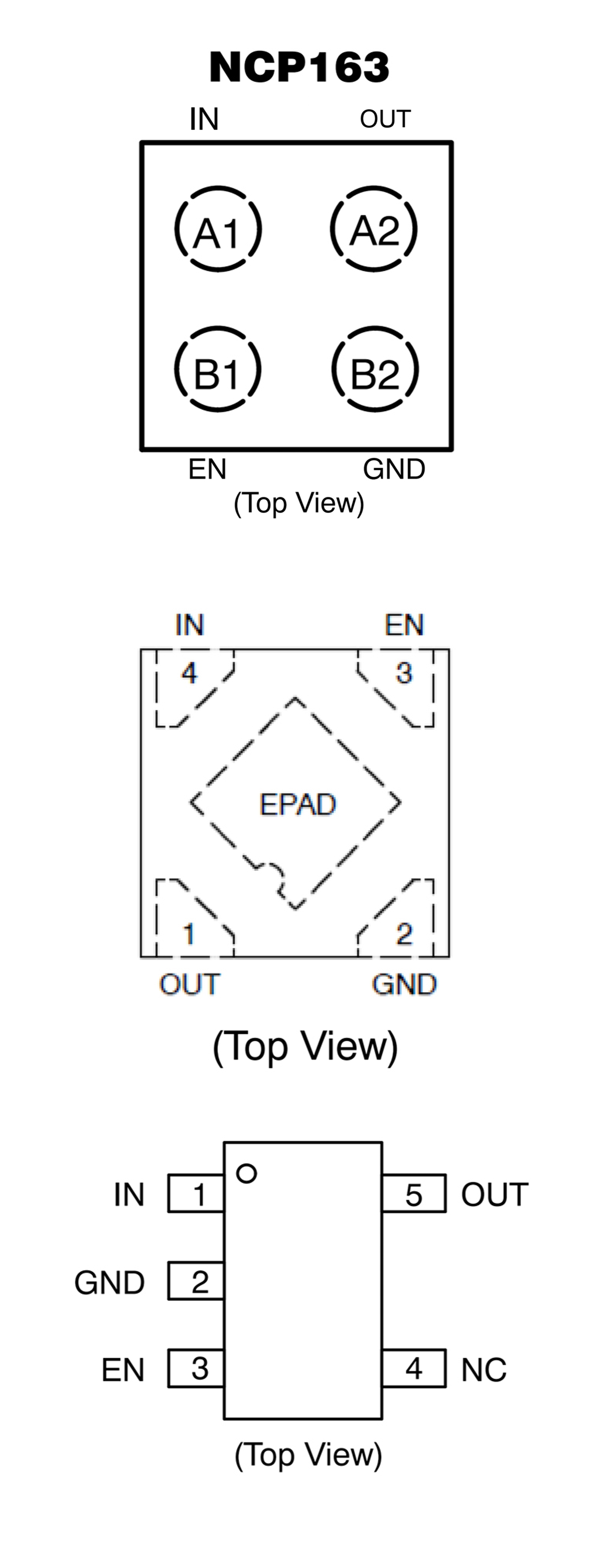

• Available in
− WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm
− WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm
− XDFN4: 1 mm x 1 mm x 0.4 mm
− SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
• These Devices are Pb−Free, Halogen Free/BFR Free and
are RoHS Compliant
