• Operating Input Voltage Range: 1.1V to 5.5V

• Fixed Output Voltage Option: 0.6V to 4.2V

• Ultra-Low Noise: 9.5μVRMS (TYP)

• Ultra-Low Quiescent Current: 15μA (TYP)

• Standby Current: 0.03μA (TYP)

• High PSRR: 92dB (TYP) at 1kHz

• Low Dropout Voltage:

  100mV (TYP) at 300mA when

  V_OUT = 1.8V (XTDFN-1×1-4L)

  80mV (TYP) at 300mA when

  V_OUT = 1.8V (WLCSP-0.64×0.64-4B-A)

• Output Short-Circuit Protection

• Thermal Shutdown Protection

• Fast Load Transient Response

• Stable with 1μF Small Case

  Size Ceramic Capacitors

• -40℃ to +125℃ Operating Temperature Range

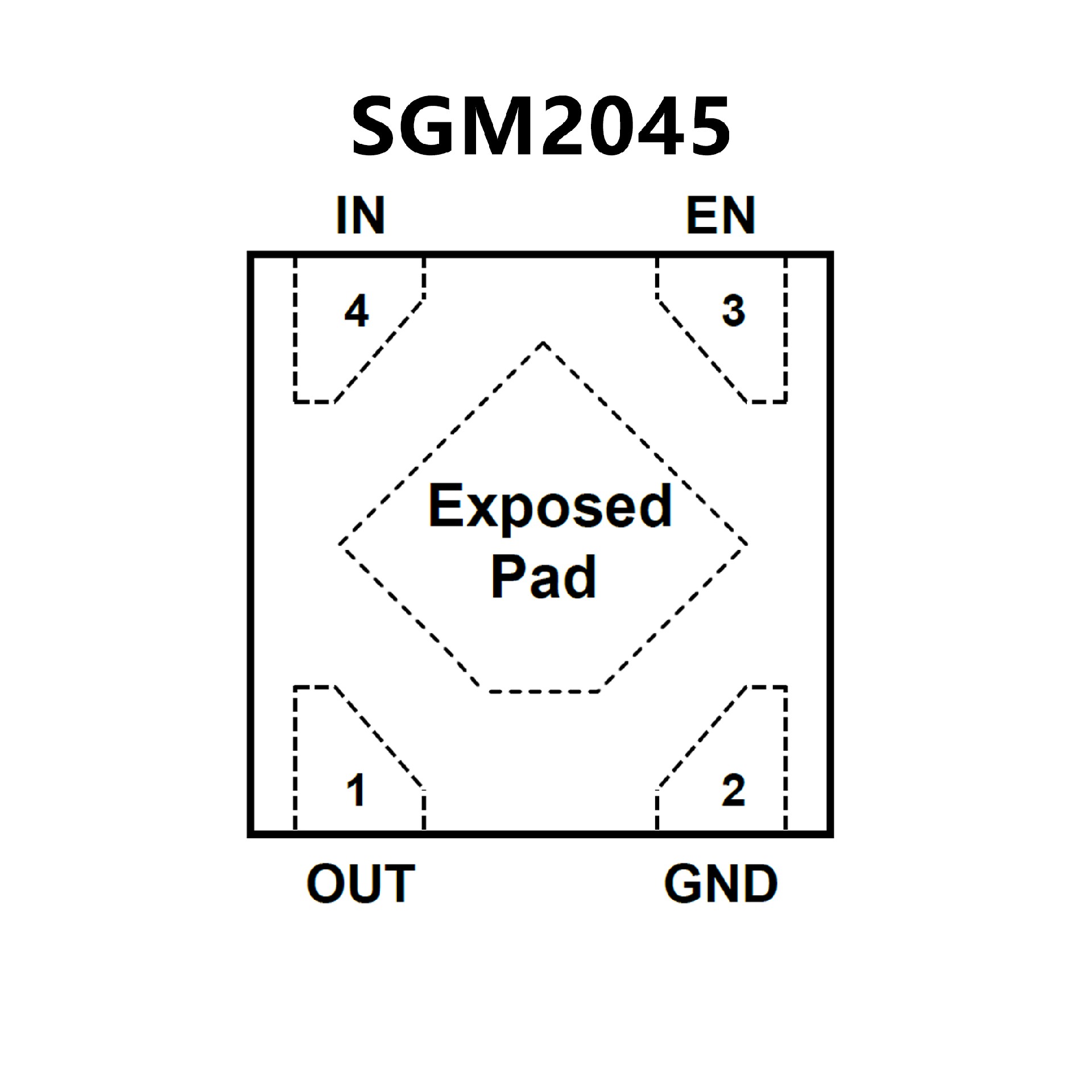

• Available in Green XTDFN-1×1-4L

  and WLCSP-0.64×0.64-4B-A Packages
