300mA, Low VIN, Ultra-Low Noise and High PSRR Linear Regulator,SGM2045 Replace TLV73312PDBVR.
FEATURES

• Operating Input Voltage Range: 1.1V to 5.5V

• Fixed Output Voltage Option: 0.6V to 4.2V

• Ultra-Low Noise: 9.5μVRMS (TYP)

• Ultra-Low Quiescent Current: 15μA (TYP)

• Standby Current: 0.03μA (TYP)

• High PSRR: 92dB (TYP) at 1kHz

• Low Dropout Voltage:

  100mV (TYP) at 300mA when

  VOUT = 1.8V (XTDFN-1×1-4L)

  80mV (TYP) at 300mA when

  VOUT = 1.8V (WLCSP-0.64×0.64-4B-A)

• Output Short-Circuit Protection

• Thermal Shutdown Protection

• Fast Load Transient Response

• Stable with 1μF Small Case Size Ceramic Capacitors

• -40℃ to +125℃ Operating Temperature Range

• Available in Green XTDFN-1×1-4L and

  WLCSP-0.64×0.64-4B-A Packages

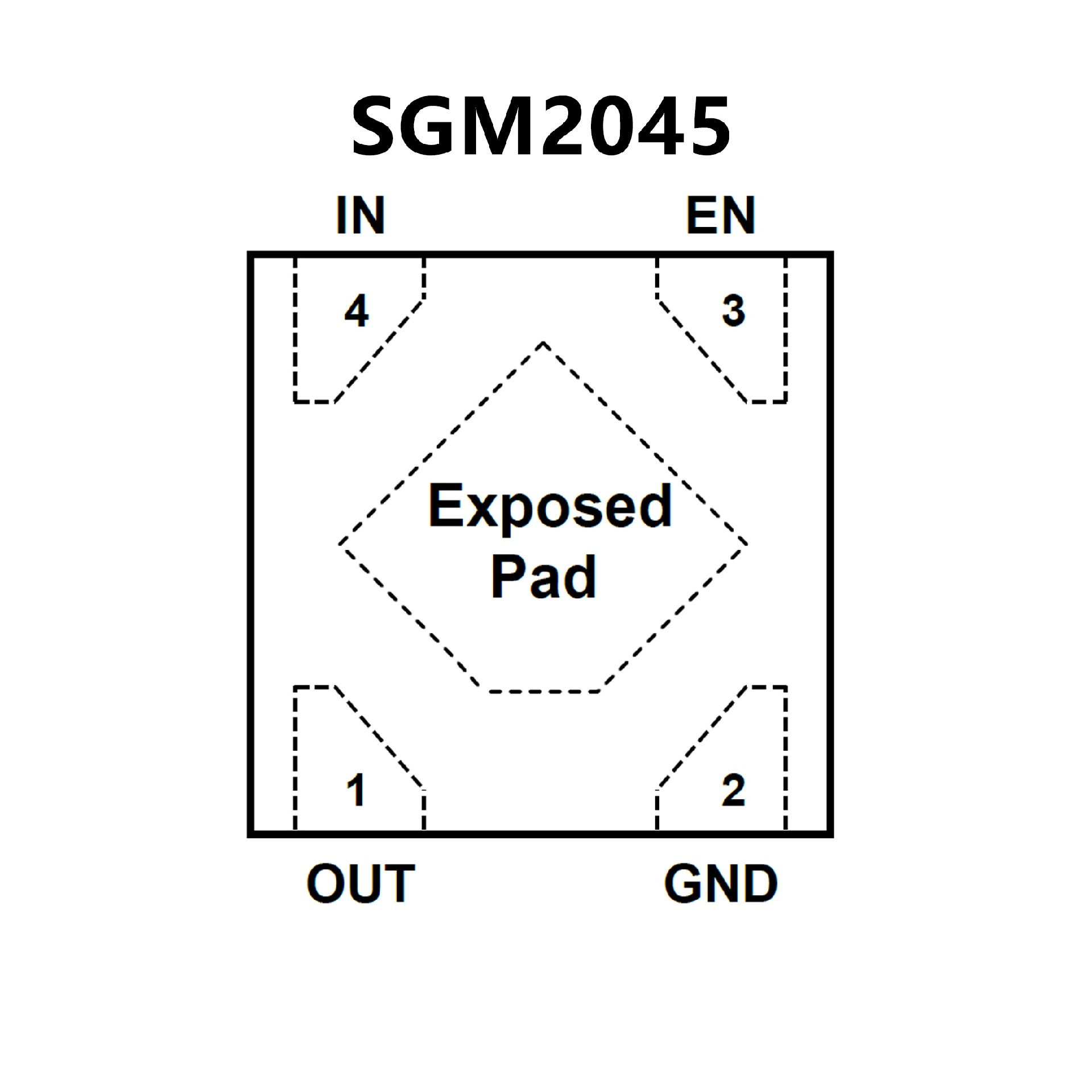

PIN CONFIGUTION
优势替代
TLV73312 TLV73312.pdf

No.12877

FEATURES

• AEC-Q100 qualified for automotive applications:

– Temperature grade 1: –40°C to 125°C, TA
• Device junction temperature range:
–40°C to 150°C
• Input voltage range: 1.4 V to 5.5 V
• Stable operation with or without capacitors
• Foldback overcurrent protection
• Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
• Very low dropout: 125 mV at 300 mA (3.3 VOUT)
• Accuracy: 1% typical, 1.4% maximum
• Low IQ: 34 µA
• Available in fixed-output voltages:
1.0 V to 3.3 V
• High PSRR: 50 dB at 1 kHz
• Active output discharge


PIN CONFIGUTION
