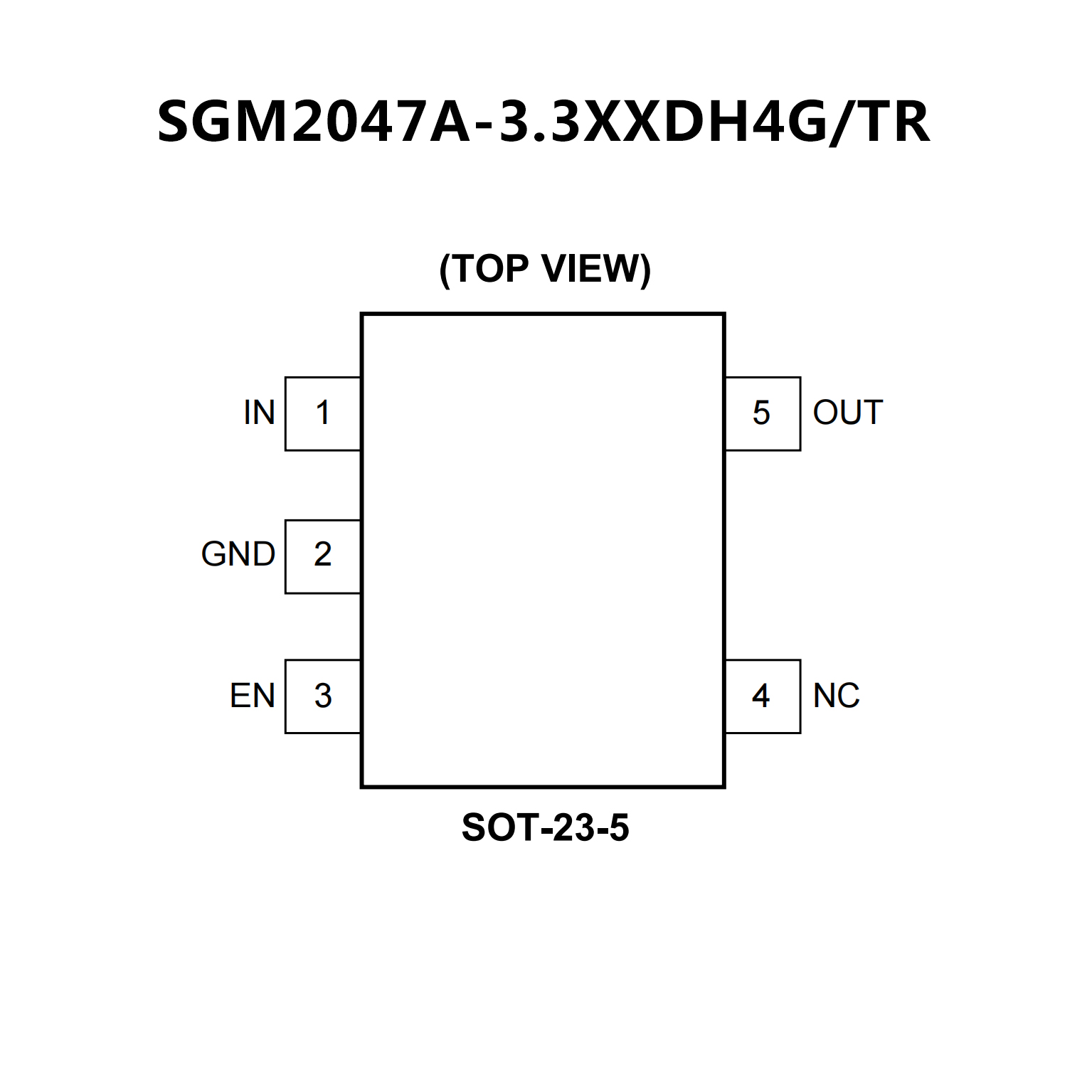

SGM2047A-3.3.pdf• Input Voltage Range: 1.7V to 5.5V
• Output Voltage Range: 0.6V to 3.6V
• Output Voltage Accuracy: ±1% (TYP) at +25℃
• Low Dropout: 200mV (TYP) at 200mA
• Ultra-Low Quiescent Current: 0.6μA (TYP)
• Stable with Small Case Size Ceramic Capacitors
• Over-Current Protection
• Thermal Shutdown Protection
• SGM2047A: With Output Active Discharge
• SGM2047B: Without Output Active Discharge
• -40℃ to +125℃ Operating Temperature Range
• Available in Green XTDFN-1×1-4L and SOT-23-5
Packages
• Operating Input Voltage Range: 2.2 V to 5.5 V
• Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
• Ultra-Low Quiescent Current Typ. 0.5μA
• Low Dropout: 170 mV Typ. at 150 mA
• High Output Voltage Accuracy ±1%
• Stable with Ceramic Capacitors 1μF
• Over-Current Protection
• Thermal Shutdown Protection
• NCP170A for Active Discharge Option
• Available in Small 1 × 1 mm XDFN4, SOT−563 and
TSOP-5 Packages
• These Devices are Pb−Free, Halogen Free/BFR Free
and are RoHS Compliant
