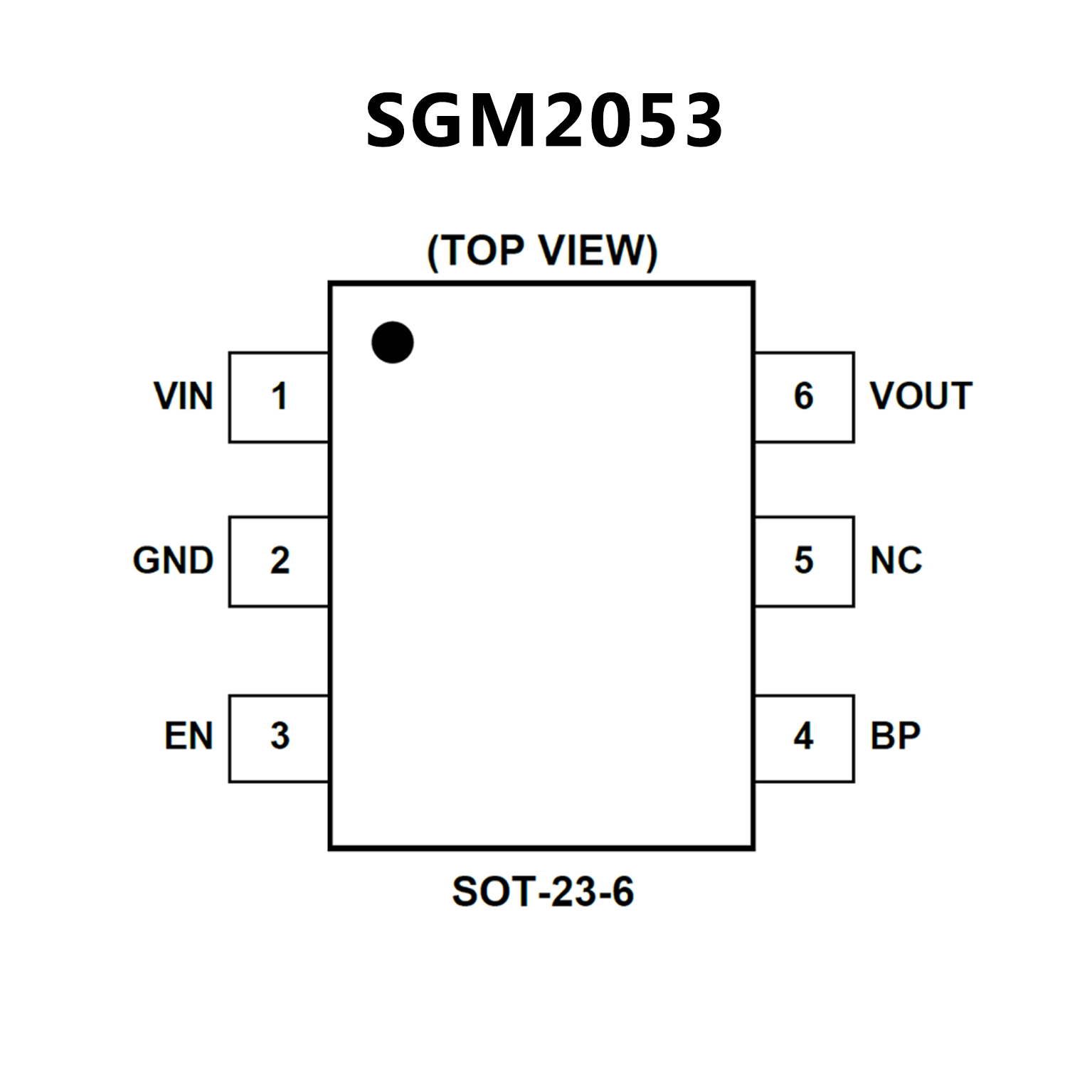

SGM2053.pdf• Input Supply Voltage Range: 1.5V to 5.5V
• Fixed Output Voltages:
1.0V, 1.05V, 1.1V, 1.8V, 2.8V, 3.0V and 3.3V
• Adjustable Output Voltage Range: 0.8V to 5.0V
• 500mA Guaranteed Output Current
• Ultra-Low Dropout Voltage:
110mV (TYP) at VOUT = 5.0V
• High PSRR: 93dB (TYP) at 1kHz
• Turn-On Time: 70μs (TYP)
• Low Output Noise
• Fast Load Transient Response
• Thermal Shutdown Protection
• Output Current Limit
• Pull-Down Current at EN Pin
• Output Auto-Discharge in Shutdown
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-6 Package

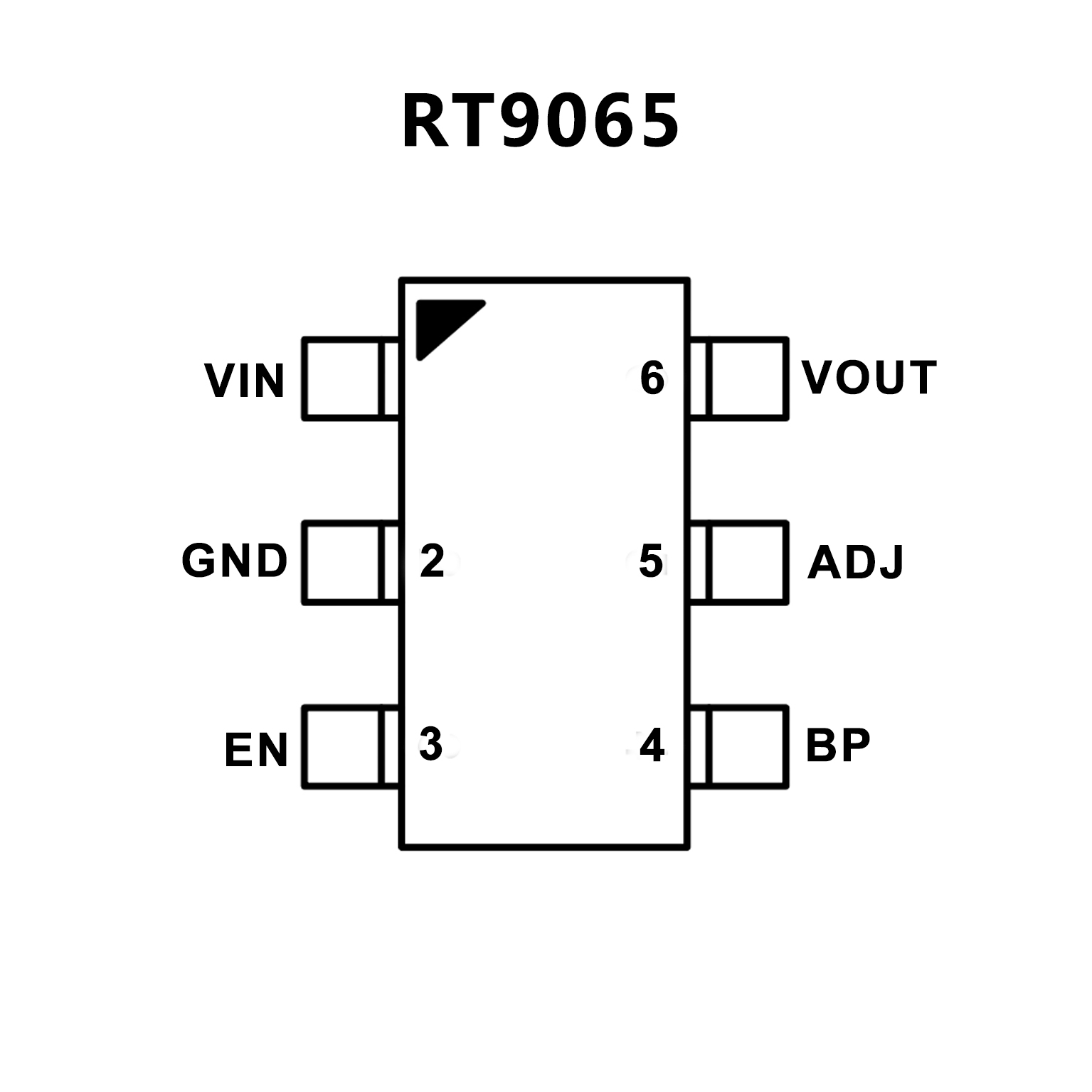

• Ultra-Low-Noise for RF Application
• Ultra-Fast Response in Line/Load Transient
• 0.01μA Shutdown Current
• Low Dropout : 370mV @ 500mA
• Wide Input Voltage Range : 2.2V to 5.5V
• Adjustable Output Voltage
• TTL Logic Controlled Shutdown Input
• Low Temperature Coefficient
• Current Limiting Protection
• Thermal Shutdown Protection
• Only 1μF Output Capacitor Required for Stability
• High Power Supply Rejection Ratio
• RoHS Compliant and Halogen Free
