SGM2056.pdf• Operating Input Voltage Range: 1.1V to 7V
• Output Voltage Range: 0.8V to 5.5V
• 1.2A Output Current
• Ultra-Low Dropout Voltage: 85mV (TYP) at 1.2A
• Ultra-Low Noise: 6.5μVRMS (TYP) at VOUT = 0.8V
• High PSRR: 50dB (TYP) at 500kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Programmable Soft-Start Output
• Support Power-Good Indicator Function
• -40℃ to +125℃ Operating Temperature Range

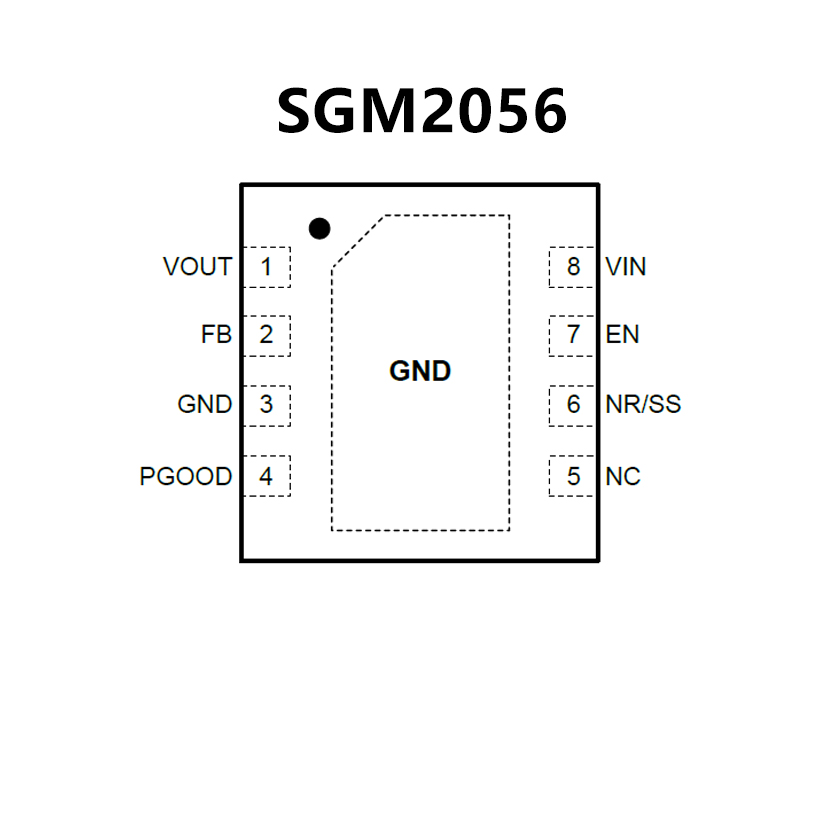

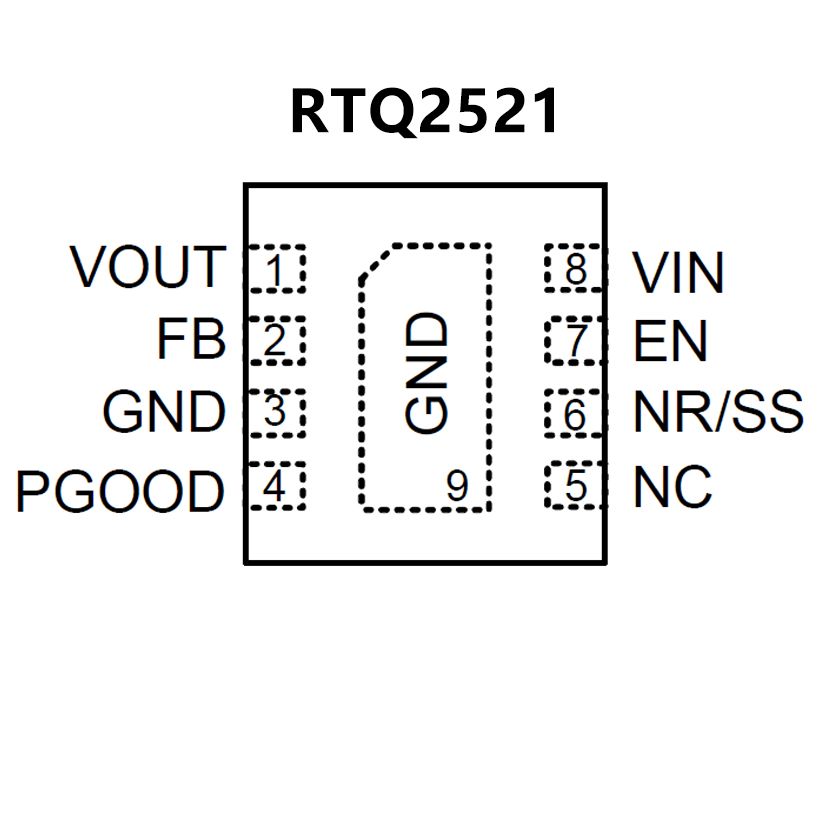

• Available in a Green TDFN-3×3-8DL Package
• Input Voltage Range : 1.1V to 6.5V
• Output Voltage Range : 0.8V to 5.5V
• Accurate Output Voltage Accuracy (1%) Over Line,
Load and Temperature
• Ultra High PSRR : 38dB at 500kHz
• Excellent Noise Immunity
• 6μμμμμVRMS at 0.8V Output
• Ultra Low Dropout Voltage : 75mV at 1.2A
• Enable Control
• Programmable Soft-Start Output
• Stable with a 4.7μμμμμF or Larger Ceramic Output Capacitor
• Support Power-Good Indicator Function
• RoHS Compliant and Halogen Free
