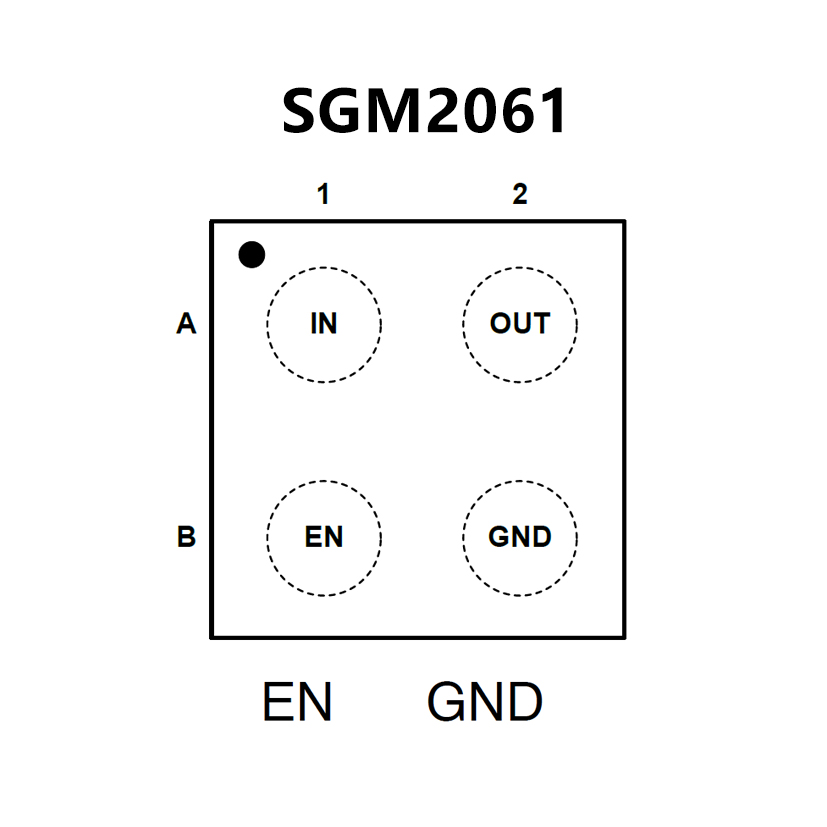

SGM2061.pdf• Operating Input Voltage Range: 1.9V to 5.5V
• Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V
• Ultra-Low Noise: 10μVRMS (TYP)
• Ultra-Low Quiescent Current: 15μA (TYP)
• Standby Current: 0.03μA (TYP)
• High PSRR: 98dB (TYP) at 1kHz
• Low Dropout Voltage:
70mV (TYP) at 450mA when VOUT = 2.8V
• Output Short-Circuit Protection
• Over-Temperature Protection
• Stable with 1μF Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in an Ultra-Thin Green
WLCSP-0.64×0.64-4B-A Package
• No Noise Bypass Capacitor Required
• Remote Output Capacitor Placement

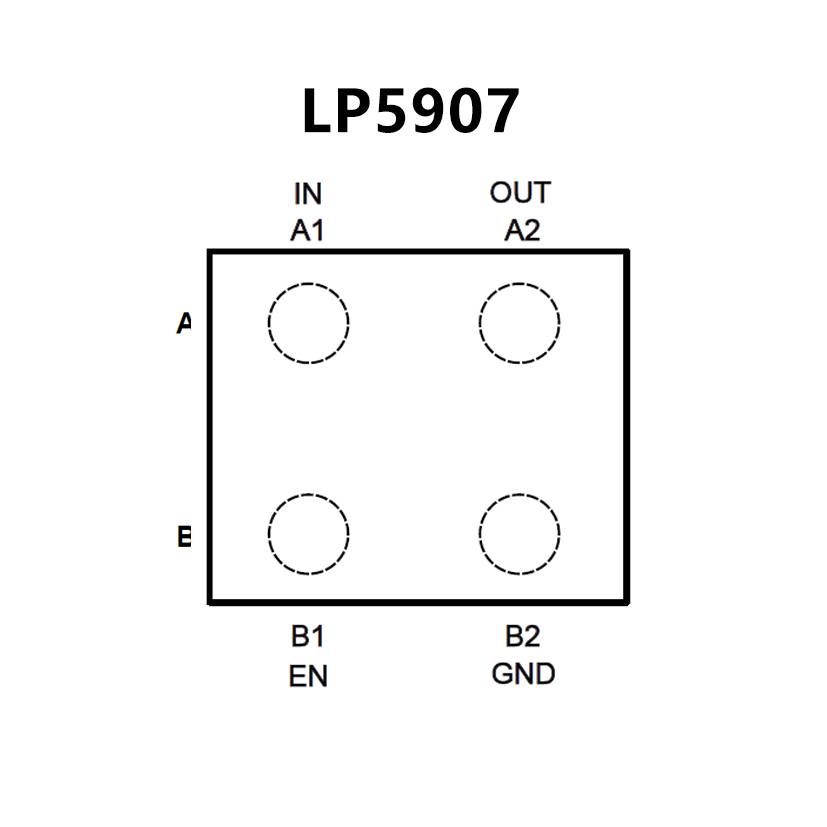

• Input voltage range 2.2V to 5.5V
• Output voltage range 1.2V to 4.5V
• Output current 250 mA
• PSRR 82 dB at 1kHz
• Output voltage tolerance ± 2%
• Virtually zero IQ (disabled) <1μA
• Very low IQ (enabled) 12 μA
• Startup time 80 μs
• Low dropout 120 mV typ
